STEP 8
: Following below illustration Assembly Frame #8. Using hardware #C, #D connect Frame #7 with
Frame #5, Frame #6 to complete Frame #8.
K 1PC
4*59
C 2PCS
1/4*35
D 2PCS
1/4*15
K 1PC
4*59
C
D
I 2 SET

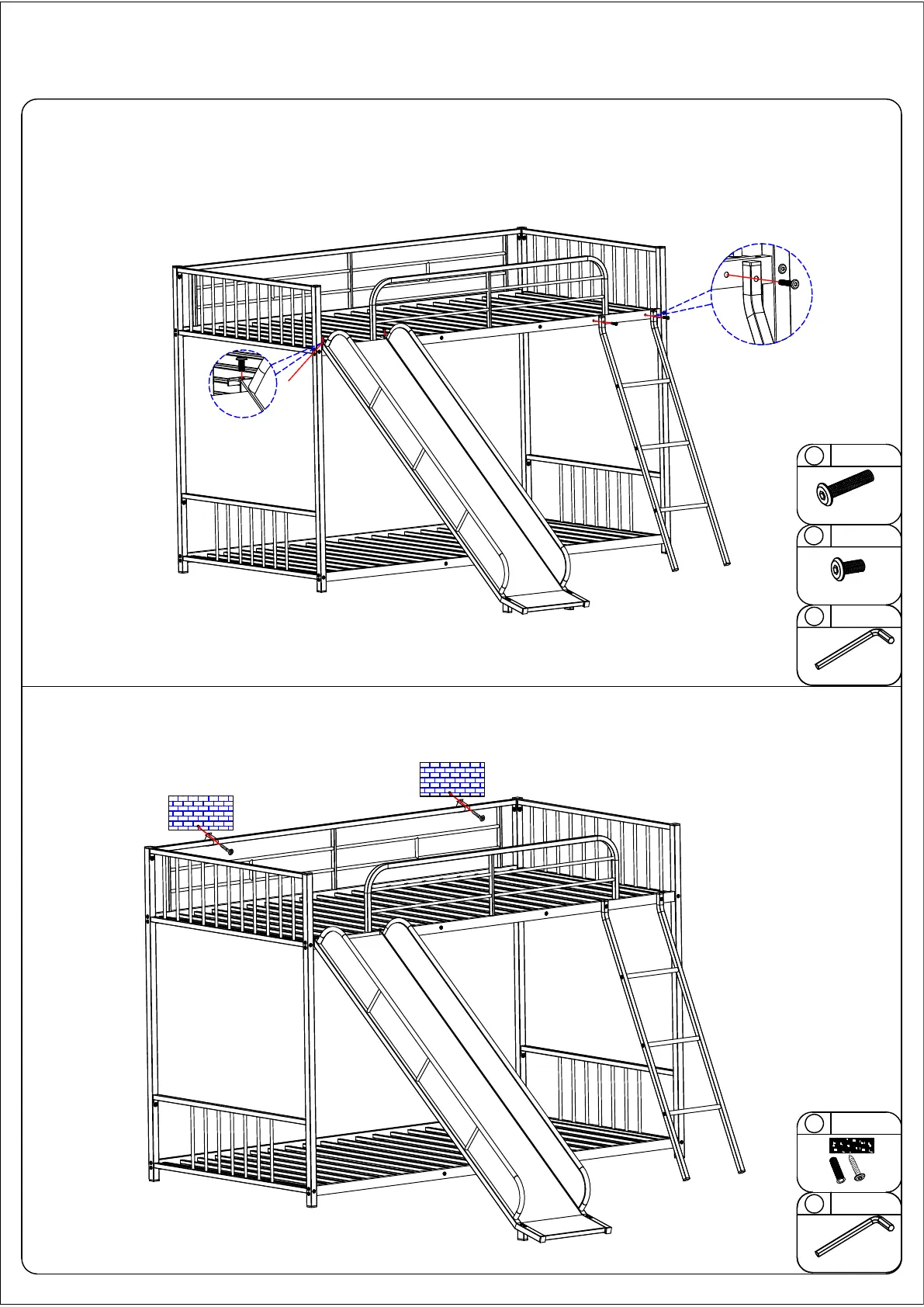

STEP 9
:
Following below illustration Assembly Frame #9.
Using hardware #I connect Frame #8 with Wall to complete .
COMPLETED BUNK BED
I
Wall
I
Wall
Frame #8
Frame #6
Frame #5
Frame #7
NOTE: Tighten all step before using. Thank you.
NOTE
:
In this step, DO NOT tighten any bolt until you connect all part together
PAGE 8 OF 8
C*2
D*2
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU : MF285671
