Electrical fuses
Notes on electrical fuses
&
WARNING Risk of accident and injury due
to overloaded lines
If you manipulate or bridge a faulty fuse or if
you replace it with a fuse with a higher amper-
age, the electric line could be overloaded.
This could result in a re.
#
Always replace faulty fuses with speci-
ed new fuses containing the correct
amperage.
*
NOTE Damage due to incorrect fuses
Using incorrect fuses can result in damage to
electrical components or systems or their
functions being considerably restricted.
#
Use only fuses approved for Mercedes-
Benz with the respective specied fuse
rating.
Blown fuses must be replaced with fuses of the
same rating, which you can recognise by the col-
our and the label. The fuse ratings and further
information to be observed can be found in the
fuse assignment diagram.
Fuse assignment diagram: on the fuse box in the
rear passenger compartment (/ page 697).
*
NOTE Damage or malfunctions caused by
moisture
Moisture may cause damage to the electrical
system or cause it to malfunction.
#
When the fuse box is open, make sure
that no moisture can enter the fuse box.
#
When closing the fuse box, make sure
that the seal of the lid is positioned cor-
rectly on the fuse box.
If the newly inserted fuse also blows, have the
cause traced and rectied at a qualied specialist
workshop.
Ensure the following before replacing a fuse:
R
The vehicle is secured against rolling away.
R
All electrical consumers are switched o.
R
The vehicle is switched o.
The electrical fuses are located in various fuse
boxes:
R
Fuse box on the driver's side of the cockpit
(/ page 696)
R
Fuse box in the front passenger footwell
(/ page 697)
R
Fuse box in the rear passenger compartment
(/ page 697)

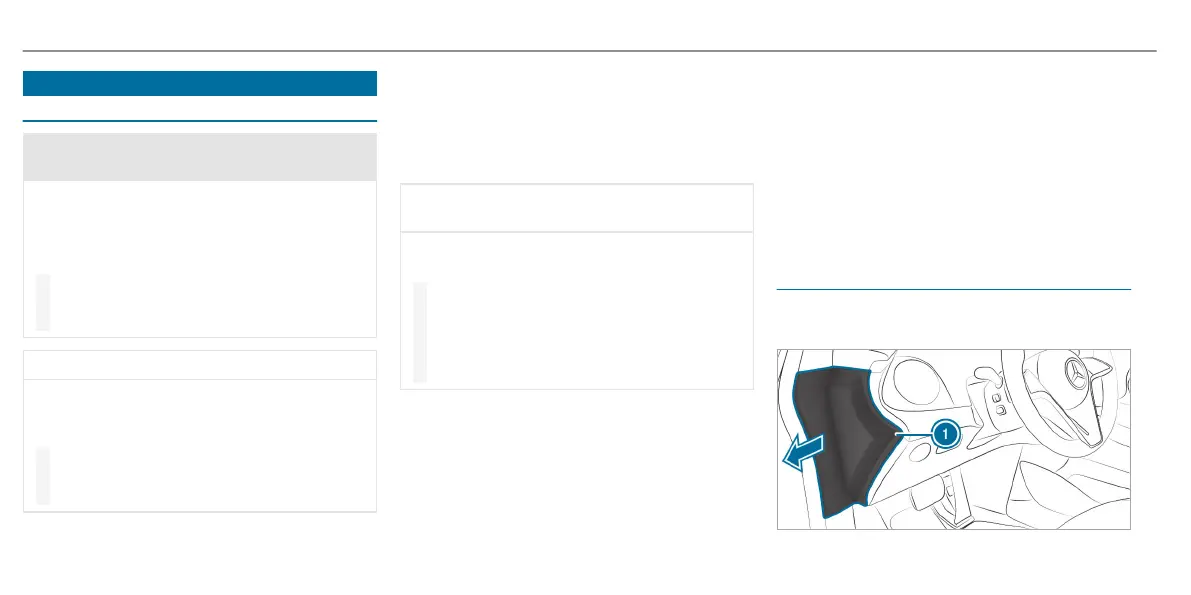

Opening and closing the fuse box in the cockpit
R
Observe the notes on electrical fuses
(/ page 53).
696
Breakdown assistance
F297 0017 02
