Mercedes-Benz OM 926 LA User Manual

87
Maintenance
Work schedules
5

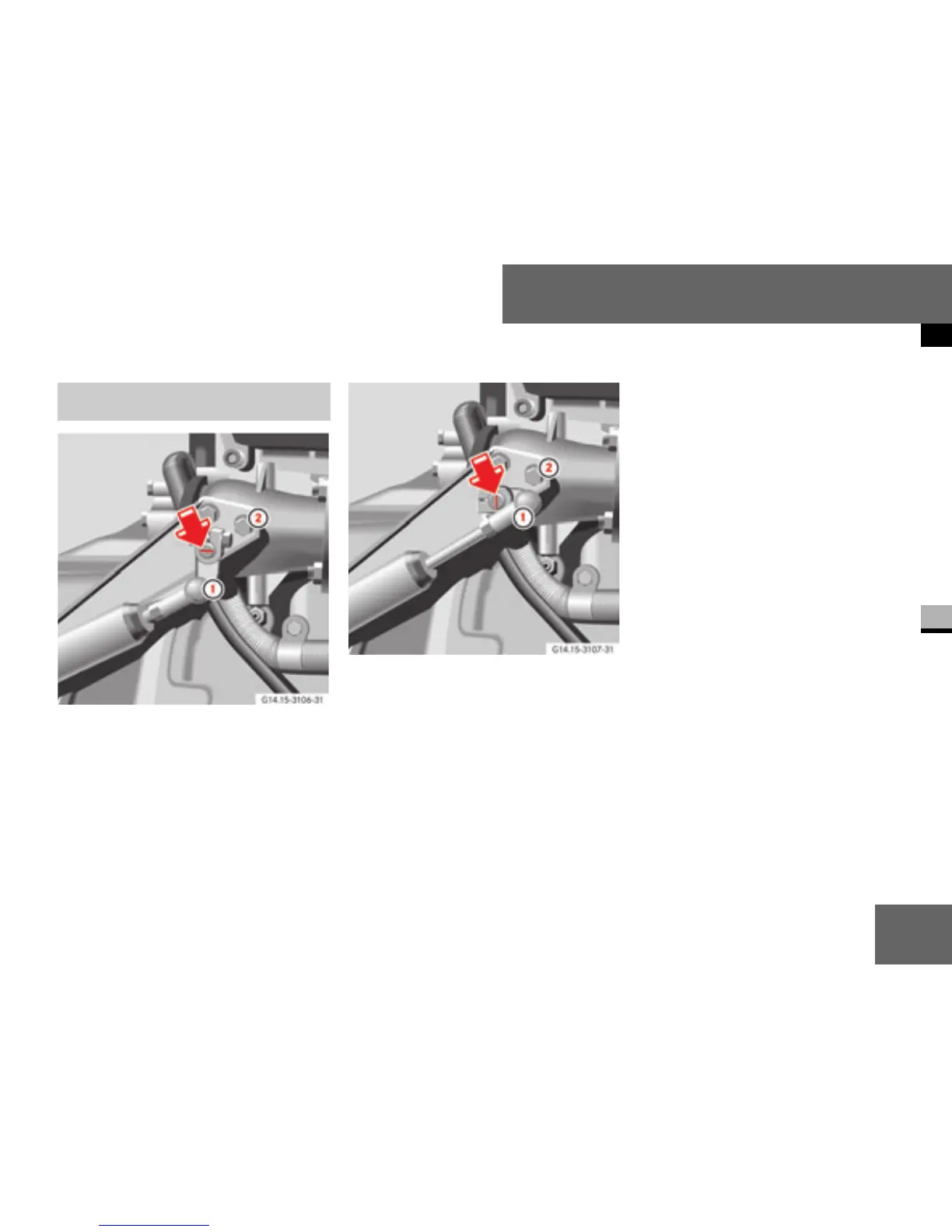

Throttle valve lever in inactive position
1 Throttle valve lever
2 Retainer
Throttle valve lever in active position
1 Throttle valve lever
2 Retainer
Checking condition
 Remove the wire circlip from the en-
gine cylinder ball socket.
 Prise off the ball socket from throttle
valve lever 1 ball neck.
 Check the engine brake cylinder, ball
neck and ball socket as well as the
throttle valve shaft for wear.
 Check the throttle valve lever on the
throttle valve shaft for firm seating and
retighten the clamping screws if neces-
sary.
 Lubricate the ball socket with the spec-
ified grease.
 Press the ball socket back onto the ball
neck.
 Insert the wire circlip.
Engine brake*: checking condition
and setting


Mercedes-Benz OM 926 LA Specifications

General

Displacement	7.2 L
Cylinders	6
Bore	106 mm
Rated Speed	2200 rpm
Fuel	Diesel
Cooling	Water-cooled
Aspiration	Turbocharged
Compression Ratio	17.5:1
Fuel System	Common Rail Injection
Engine Type	Inline 6-cylinder
Torque	1, 200 Nm
