Engine views
14
Overview
Introduction of the New V12 Biturbo Engine, M 279 AMG
b
P01.10-3116-00

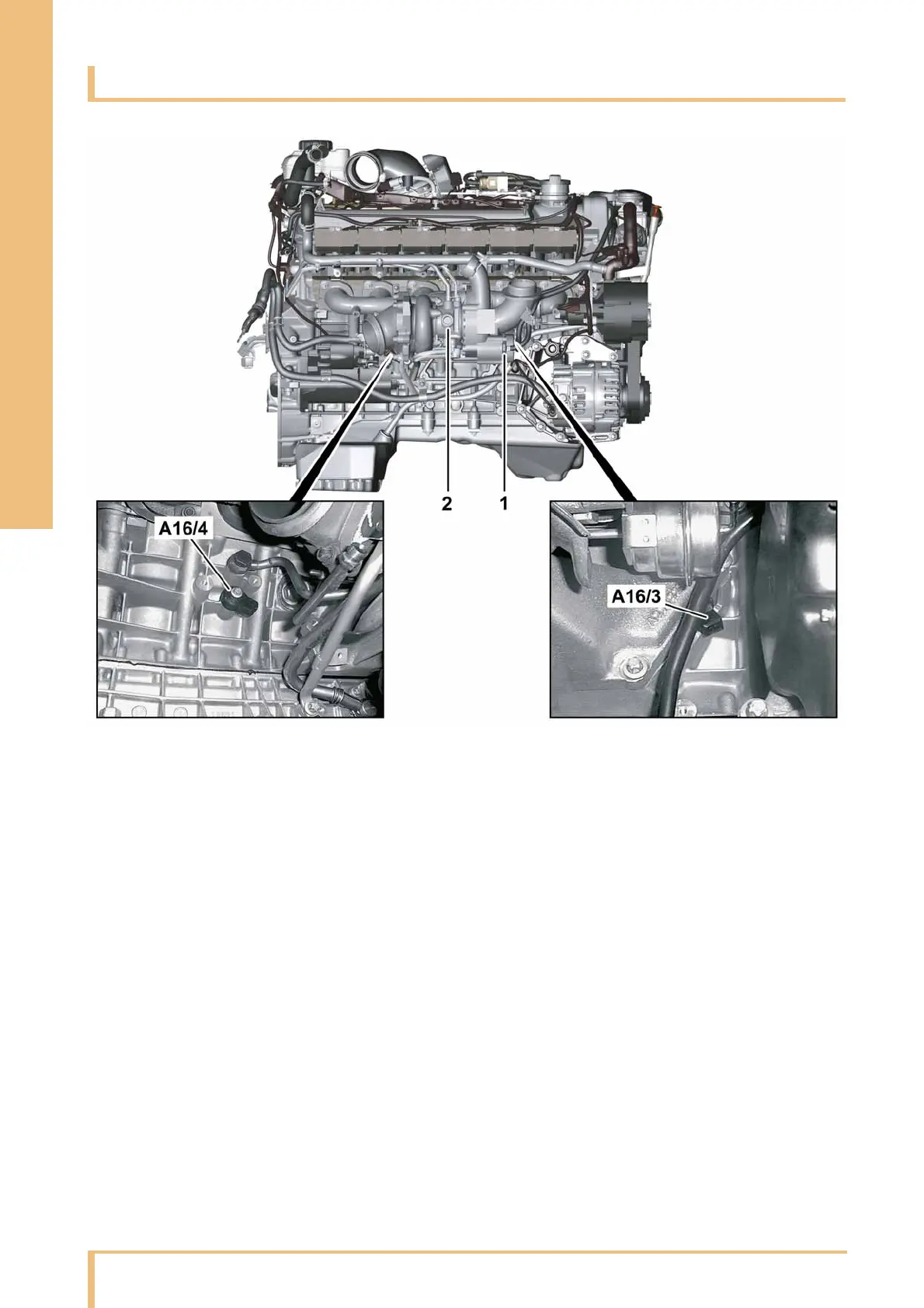

View of engine from right
1 Blow-off valve
2 Right turbocharger
A16/3 Knock sensor 3
A16/4 Knock sensor 4
– This printout will not be recorded by the update service. Status: 06 / 2012 –
