Mercoid Series MPC User Manual

6
Connect Jumper between terminals 2 and 12
Level
Transmitter
Connect Transmitter Plus (+) to terminal 11
Connect Transmitter
minus (-) to terminal 3
WIRING FOR TRANSMITTER INPUTS USING INTEGRAL POWER SUPPLY
Wire power and outputs as shown on previous page. Wiring for two-wire transmitters
shown below in Figure 3. All wiring shown in Figure 3 is Class 2.

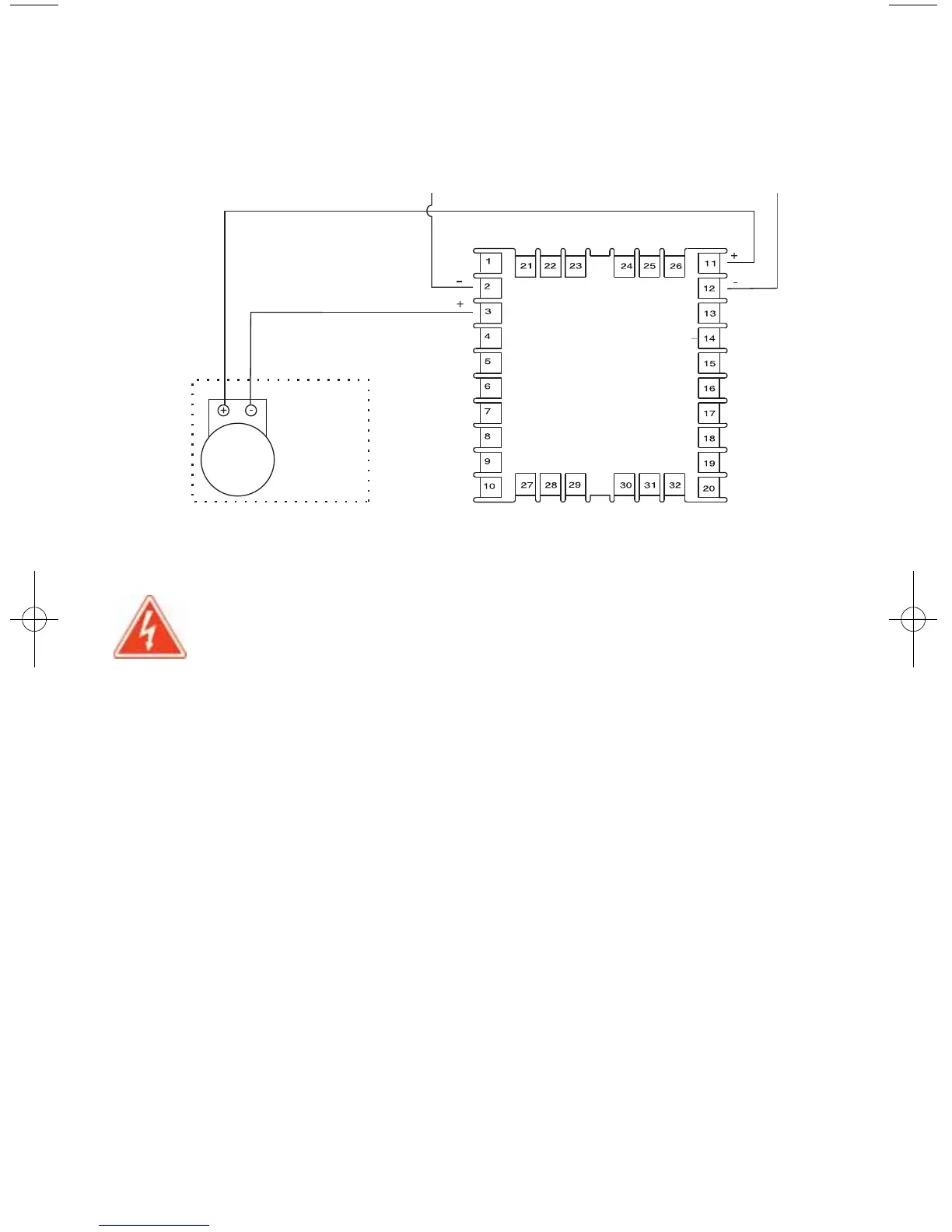

Figure 3 - Transmitter Wiring
s. Use
intain
ecure
e per
mmon
For three or four wire transmitters follow the wiring instructions provided with your
transmitter.
DO NOT wire the 24 Volt Power Supply across the input of the
control. Damage to the control input circuitry will result.
4.
