Section 5 - Maintenance
90-864195070 JUNE 2007 Page 97
8. Install the propeller shaft anode over the propeller shaft nut.
9. Place the flat washer onto the propeller shaft anode screw.
10. Place the star washer onto the propeller shaft anode screw.
11. If a propeller shaft anode is reinstalled, apply Loctite Threadlocker 271 to the threads
of the propeller shaft anode screw.
a
b
d
c
f
e

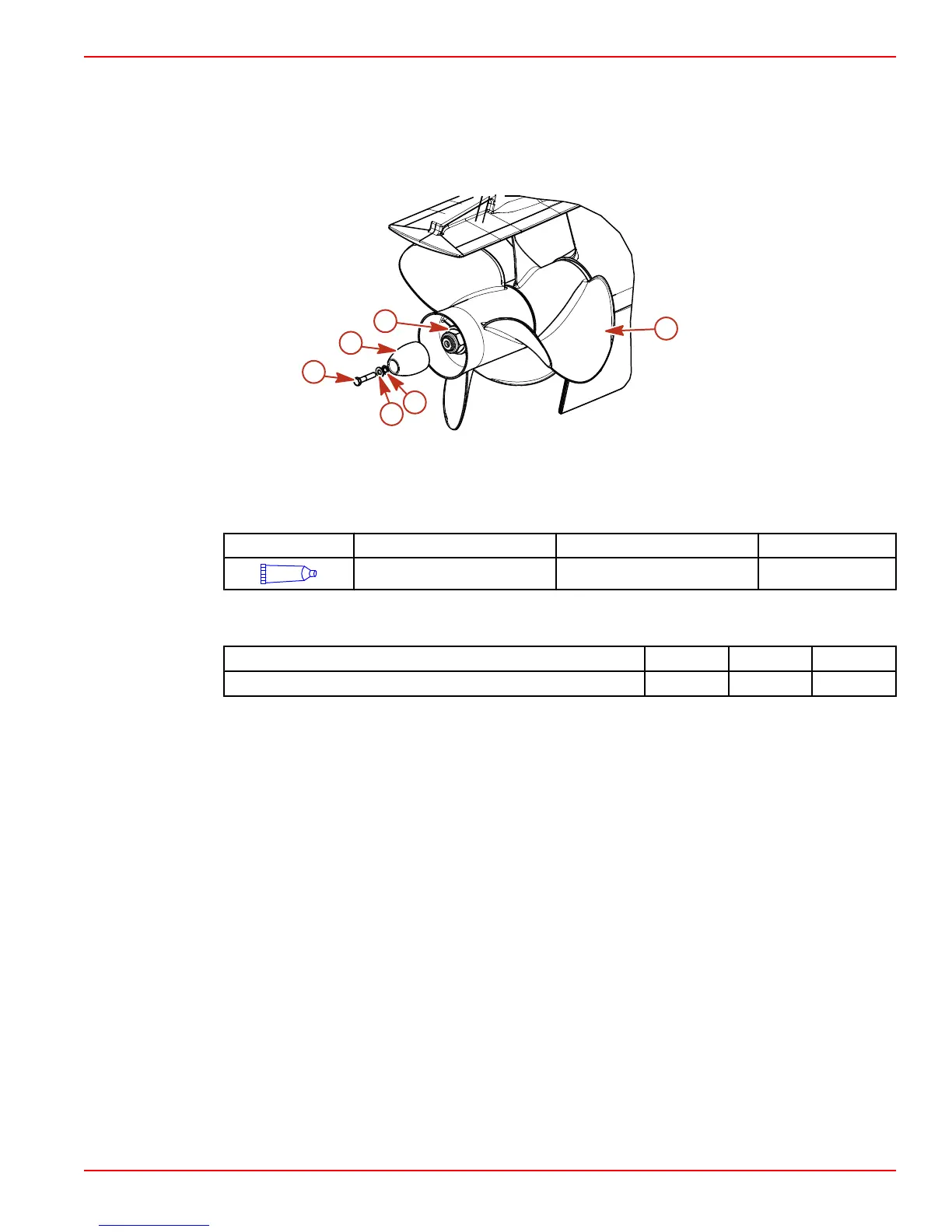

5303
a - Propeller
b - Propeller shaft nut
c - Propeller shaft anode
d - Propeller shaft anode screw
e - Flat washer
f - Star washer
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker Propeller shaft threads 92-809819
12. Secure the propeller shaft anode to the propeller shaft using the propeller shaft anode
screw and washers. Torque the screw.
Description Nm lb. in. lb. ft.
Propeller shaft anode screw 38 mm (0.3125‑18 x 1.5 in.) long 27 20
To Next Page
