Section 2 - Getting to Know Your Power Package
90-864195070 JUNE 2007 Page 37

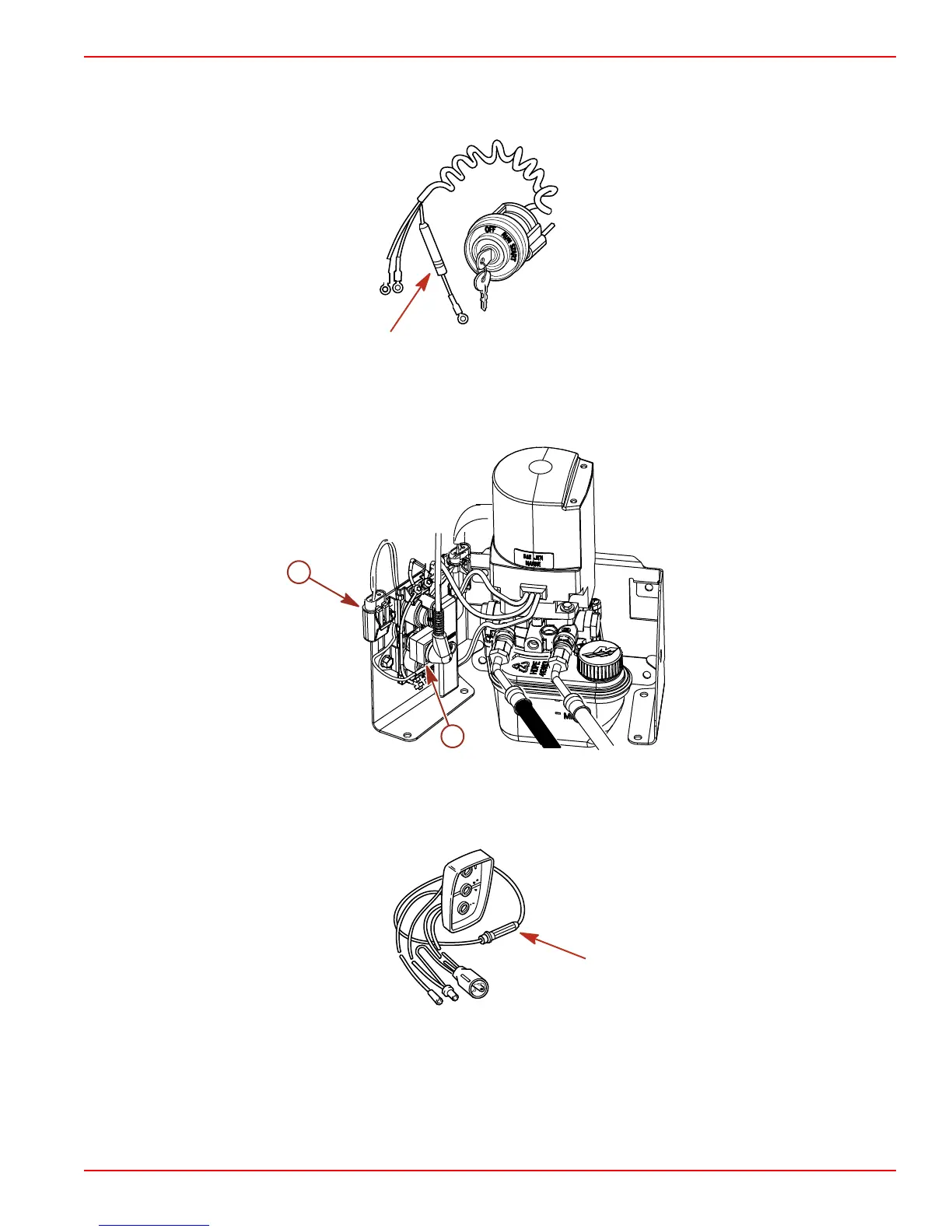

4. A 20 amp fuse may be located in the ignition switch "I" terminal lead to protect the
electrical system. Check for blown fuse if the ignition key is turned to the "START"
position and nothing happens (and circuit breaker is not tripped).
mc70525-1
5. The power trim system is protected from overload by a 110 amp fuse and a 20 amp
spade fuse on the power trim pump. The trim pump may also have an in‑line circuit
protection device in the power trim positive lead near the battery switch or battery
connection.
a
b
9208
a - 20 amp spade fuse b - 110 amp fuse
6. The Quicksilver Three‑Button Power Trim Control Panel is further protected by a 20
amp in‑line fuse.
mc70527-1
