MAINTENANCE
90
eng
3.

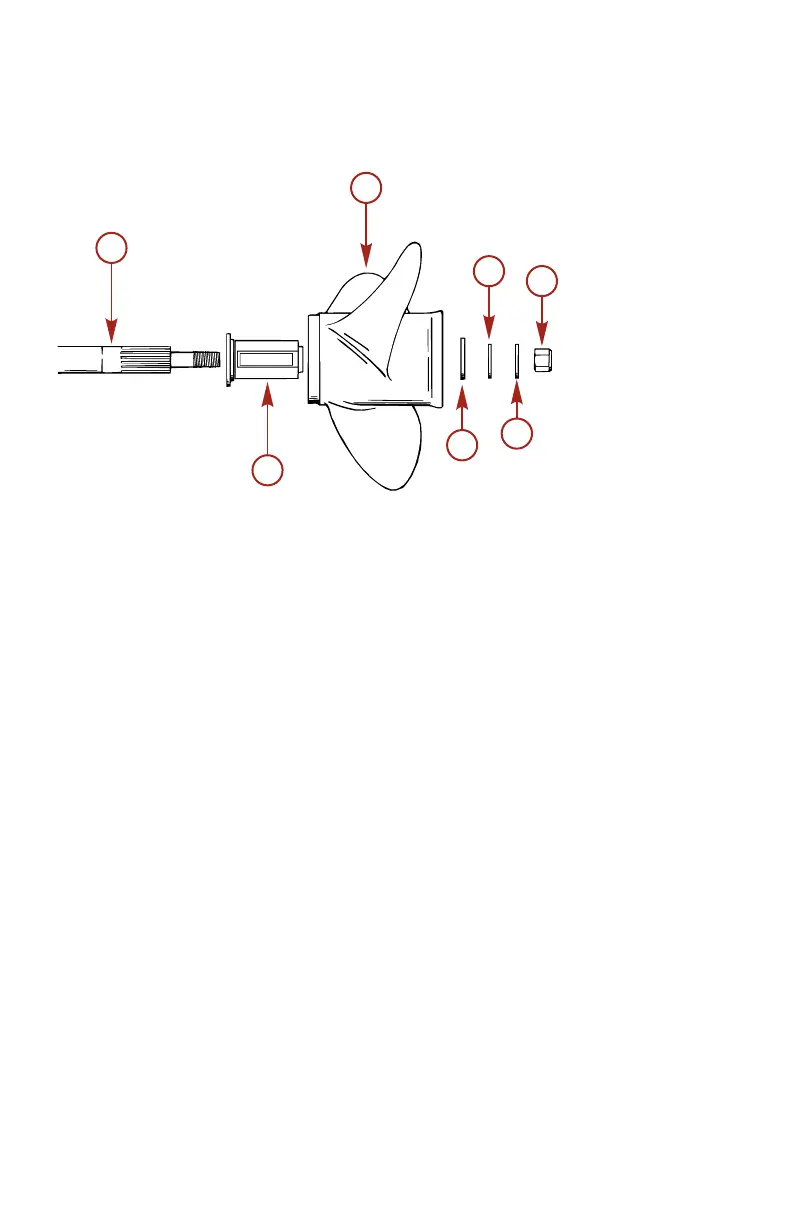

Remove the washers and propeller with the prop hub
assembly.
a -
Propeller shaft
b -
Propeller hub assembly
c -
Propeller assembly
d -
Washer
e -
Belleville washer
f -
Washer
g -
Locknut
NOTE:
Some damaged propellers can be repaired. See your
authorized Mercury Marine dealer.
Flushing the Power Package
The following procedure explains flushing the power package
through the sterndrive water pickups.
a
b
c
d
e
f
g
8018
101
103
