Mercury 1000 Induction User Manual

11
Fig.2-25Fig.2-24
Fig.2-23

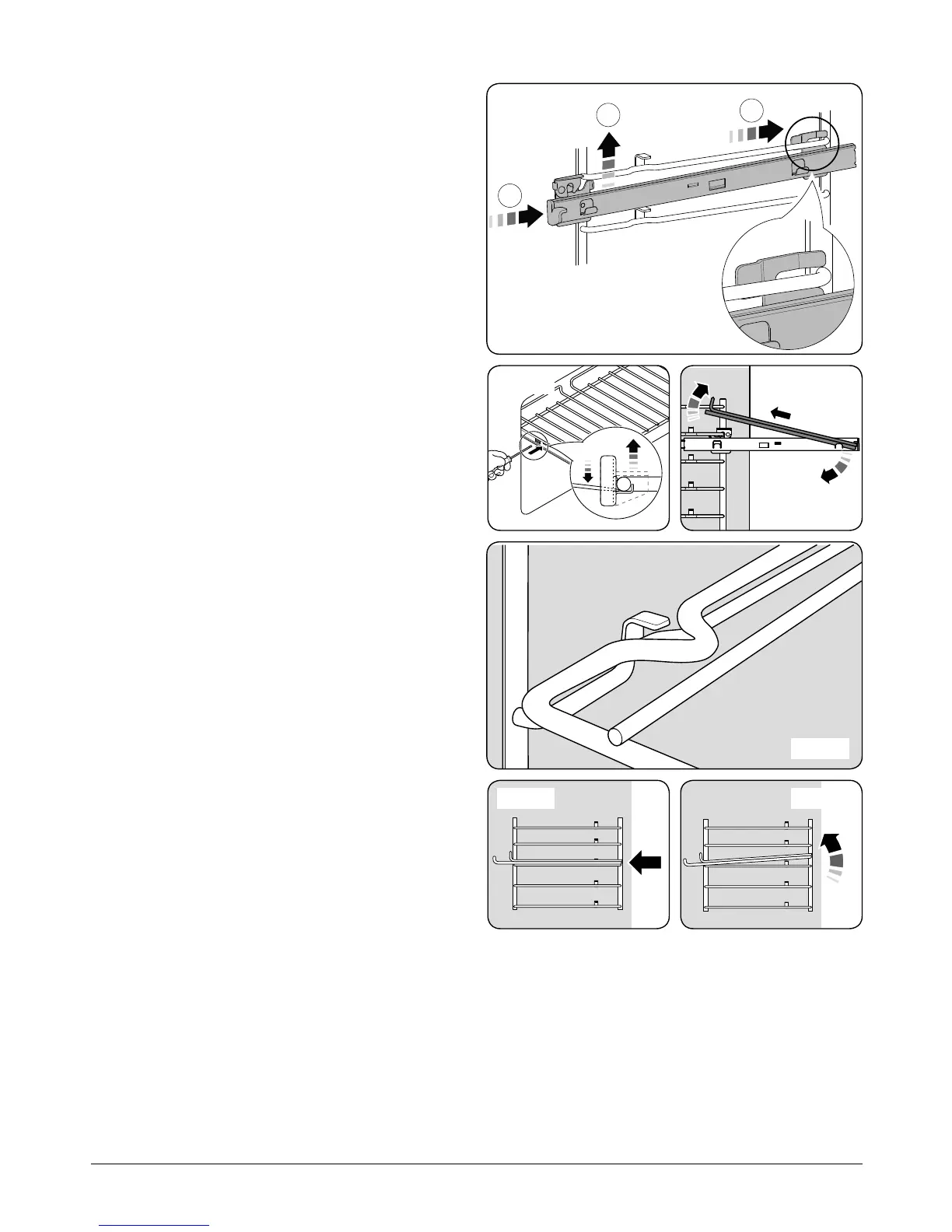

To Fit the Telescopic Shelf Runners
With the runner arm in the closed position locate the opening
of the upper rear slot onto the side support (Fig.2-23). Do
not locate any further than the opening at this point.
Lift the front of the runner arm to locate the front slot against
the side support (Fig.2-23).
Push the runner arm towards the rear of the oven. The catch
at the front will lift and drop to secure the runner arm in place
(Fig.2-23).
To Fit a Shelf to the Telescopic Shelf Runners
Slide the telescopic runners forward until they stop. Holding
the shelf above the runners, tilt the front downward and
locate into the front of the runners. Lay the shelf at. Press on
the rear of the shelf to secure in place.
To Remove a Shelf from the Telescopic Shelf Runners
Slide the shelf out on the runners. While holding one of the
runners securely, carefully lift the rear of the shelf upwards:
the shelf will spring clear of the central restraining tab. Repeat
for the opposite side of the shelf.
Note: To aid the removal of the shelf you can insert a suitable
at tool through the opening in the side of the runners and
lever the shelf clear (Fig.2-24).
Tilt the front of the shelf downwards and then lift clear of the
runners (Fig.2-25).
To Remove the Telescopic Shelf Runners
Firstly, remove the shelf as in the ‘To Remove a Shelf from the
Telescopic Shelf Runners’ section.
Place a nger on the underside of the telescopic runner and
lift.
Open the catch on top of the runner and pull the runner
forward and down to remove.
To Remove and Fit a Shelf to the Side Supports
The shelf has a small kink on either side (Fig.2-26). To remove
the shelf, line these up with the stops in the shelf support
(Fig.2-27). Lift the rear of the shelf upward so that it will pass
over the shelf stop and then pull it forward (Fig.2-28).
Fit in the reverse order, making sure to push it fully back.
To Remove and Ret the Ladder Shelf Supports
Lift the ladder support hooks out of the two locating holes in
the oven side (or divider) before lifting the support clear of
the bottom ladder restraint.
Ret by inserting the bottom of the ladder into the restraint
before tting the hooks through the locating holes.
Oven Shelves – Right-hand (Tall) Oven
When using the tall oven, you can cook on all four shelves at
the same time, but make sure that they are well spaced out
allow the hot air to circulate.
1
2
3
Fig.2-26
Fig.2-27
Fig.2-28
