The very best pans have bases that are very slightly curved
up when cold (Fig.2-3). If you hold a ruler across the bottom
you will see a small gap in the middle. When they heat up the
metal expands and lies at on the cooking surface.
Make sure that the base of the pan is clean and dry to prevent
any residue burning onto the hob panel. This also helps
prevent scratches and deposits.
Always use pans that are the same size as (or slightly larger
than) the areas marked on the hob. Using a lid will help the
contents boil more quickly.
Always take care before touching the surface, even
when the hob is turned o. It may be hotter than you
think!
The induction hob comprises of ve cooking zones
containing induction elements with dierent ratings and
diameters (Fig.2-4) each with a pan detector and residual
heat indicator, and a hob control display.
The hob control display (Fig.2-5) informs you of the following
induction hob functions:
Pan detector
H Residual heat indicator
A Automatic heat-up
Child lock
L1/L2 Low temperature/simmer setting
P Power boost setting
Pan Detector,
IMPORTANT: After use, switch o the hob element by its
control and DO NOT RELY on the pan detector.
If a cooking area is switched on and there is no pan in place or
if the pan is too small for the cooking area, then no heat will
be generated. The symbol [ ] will appear on the hob control
display; this is the “pan-missing symbol”. Place a pan of the
correct size on the cooking area and the [ ] will disappear
and cooking can begin. After 10 minutes without detecting a
pan the cooking zone will switch o automatically.
Table 2-1 shows the minimum pan sizes recommended for
each cooking zone.
Note: Using pans with a base diameter smaller than those
recommended will result in a power reduction.
Residual Heat Indicator, H
After use, a cooking zone will remain hot for a while as heat
dissipates. When a cooking zone is switched o the residual
heat indicator symbol [ H ], will appear in the display. This
shows that the cooking zone temperature is above 60 °C and
may still cause burns. Once the temperature has dropped to
below 60 °C the [ H ] will go out.

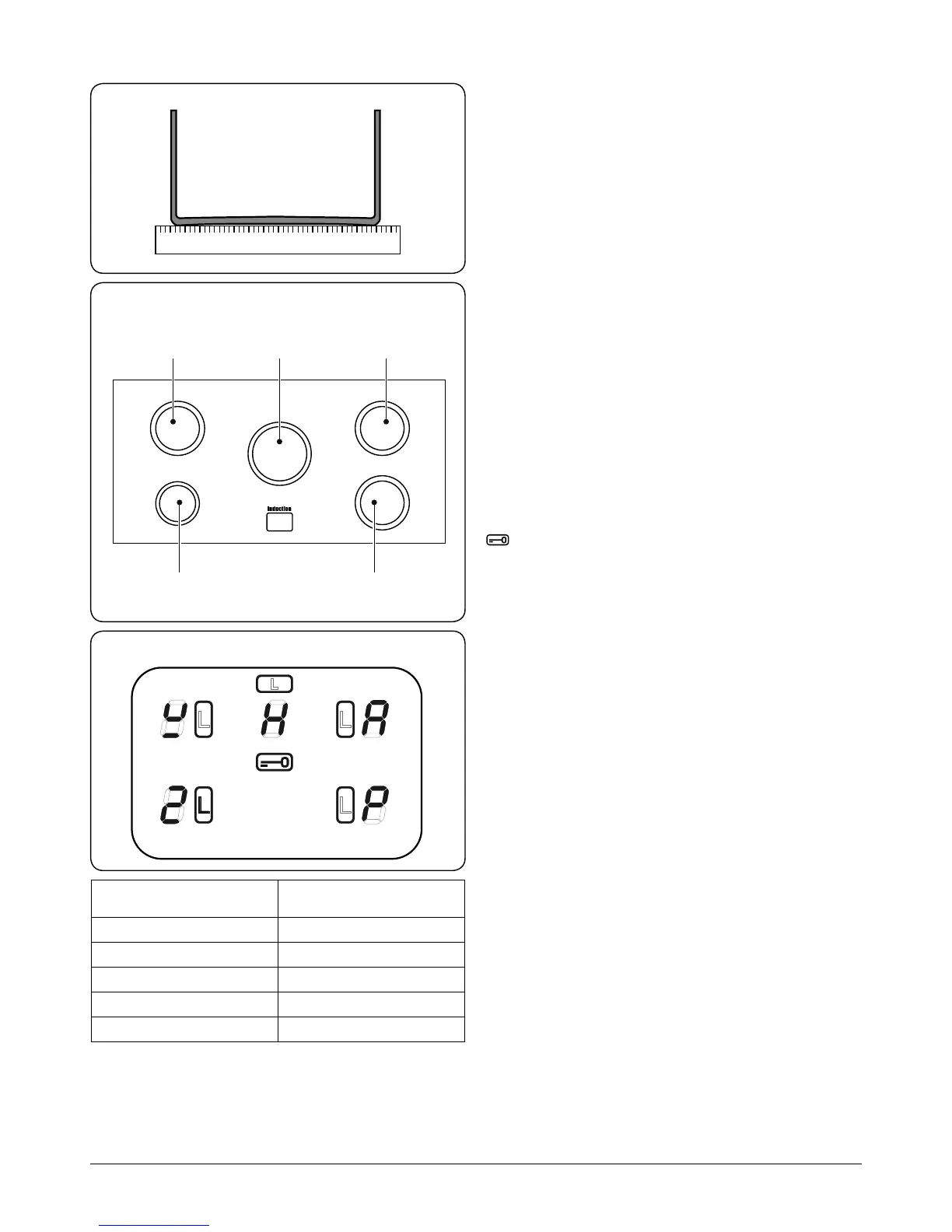

Fig.2-4
Fig.2-3
Fig.2-5
Table 2-1
Cooking zone
Minimum Pan Diameter
(Pan base) mm
Front left 120
Rear left 140
Centre 160
Rear right 140
Front right 140
