MAINTENANCE
47
ob00378

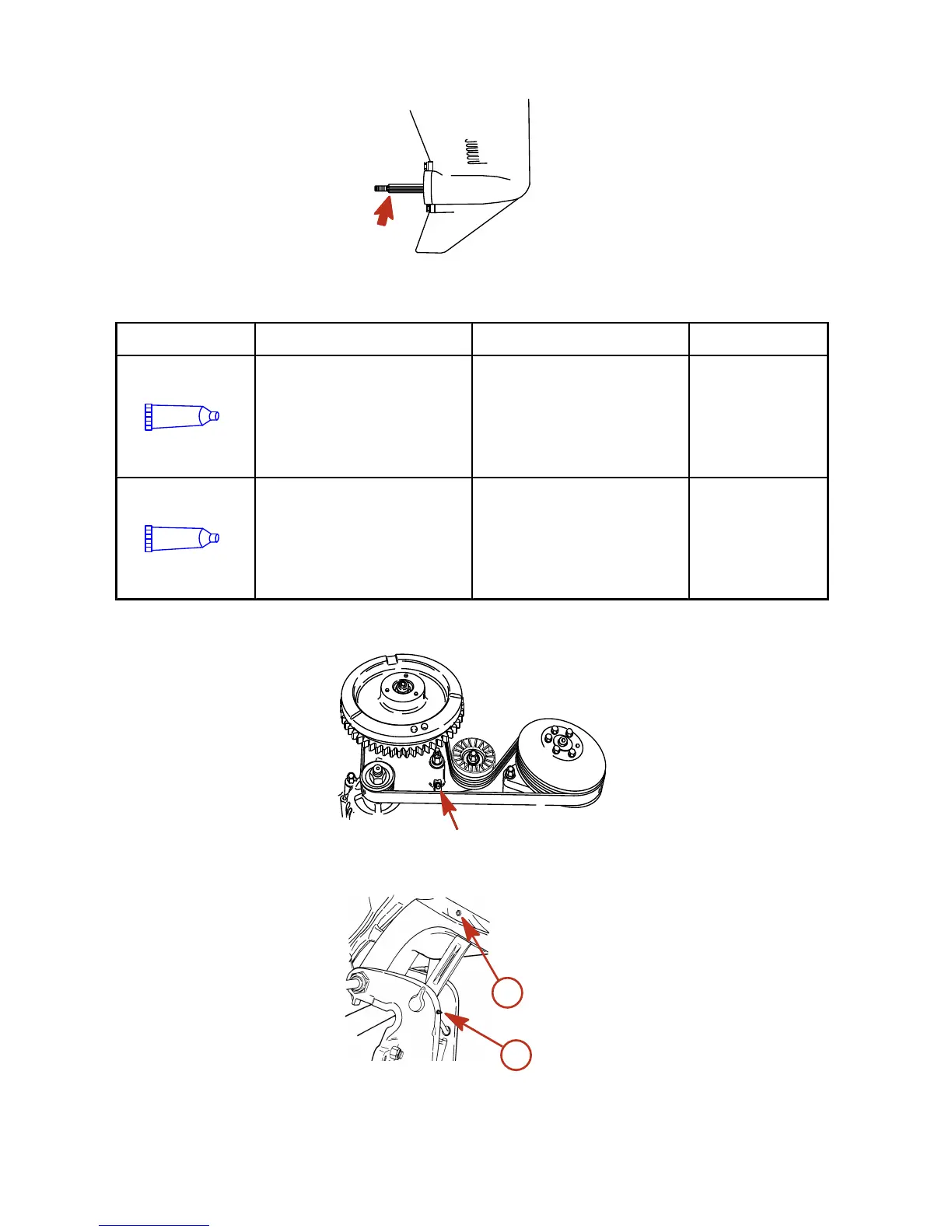

3. Lubricate the following with Quicksilver or Mercury Precision Lubricants 2‑4‑C with Teflon or Special
Lubricant 101.
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101
Alternator belt tensioner
pivot shaft, swivel
bracket, tilt support
lever, tilt tube, steering
cable
92-802865Q1
95
2-4-C with Teflon
Alternator belt tensioner
pivot shaft, swivel
bracket, tilt support
lever, tilt tube, steering
cable
92-802859Q1
• Alternator Belt Tensioner Pivot Shaft ‑ Lubricate through fitting.
ob01561
• Swivel Bracket ‑ Lubricate through fitting.
• Tilt Support Lever ‑ Lubricate through fitting.
b
ob00683
a
a - Swivel bracket b - Tilt support lever
• Tilt Tube ‑ Lubricate through fitting.
