INSTALLATION
46
NOTE: Confirm whether the engine side shift is in gear when
shifting the control lever of the remote control box to its first position
in Forward (F) or Reverse (R) , about 32° and whether the throttle
of the carburetor is fully open when shifting the lever further.
Confirm whether the carburetor's throttle is fully closed when the
control lever is shifted to the Neutral (N) position. If it is not, adjust
the position of the ball holder.
Connecting Electrical Harnesses
• Pass the cable assembly from the remote control box through
the hole in the lower cowl and connect the electric terminals.

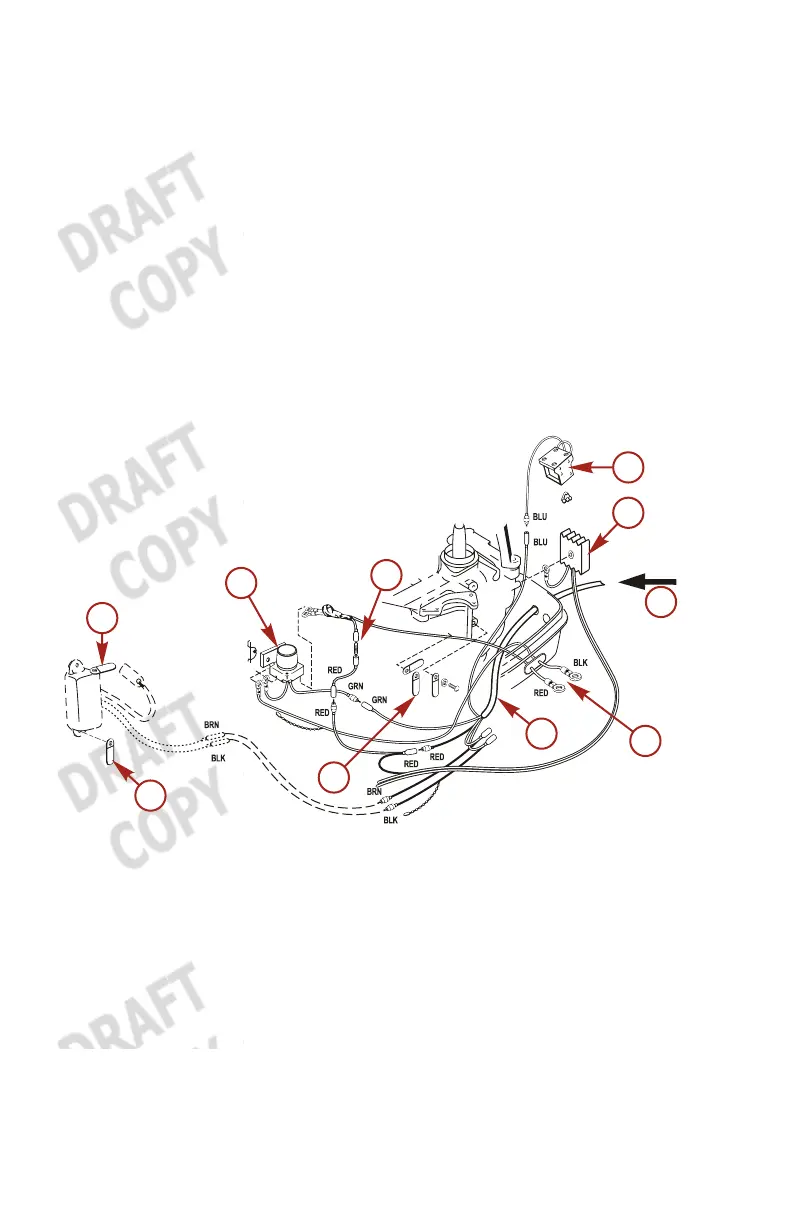

Secure the cable assembly with the clamp according to the
drawing below.
a - Clamp
b - Starter solenoid
c - Fuse wire
d - Choke solenoid
e - Rectifire
f - From the remote control
box
g - Battery cable
h - Cable assembly
