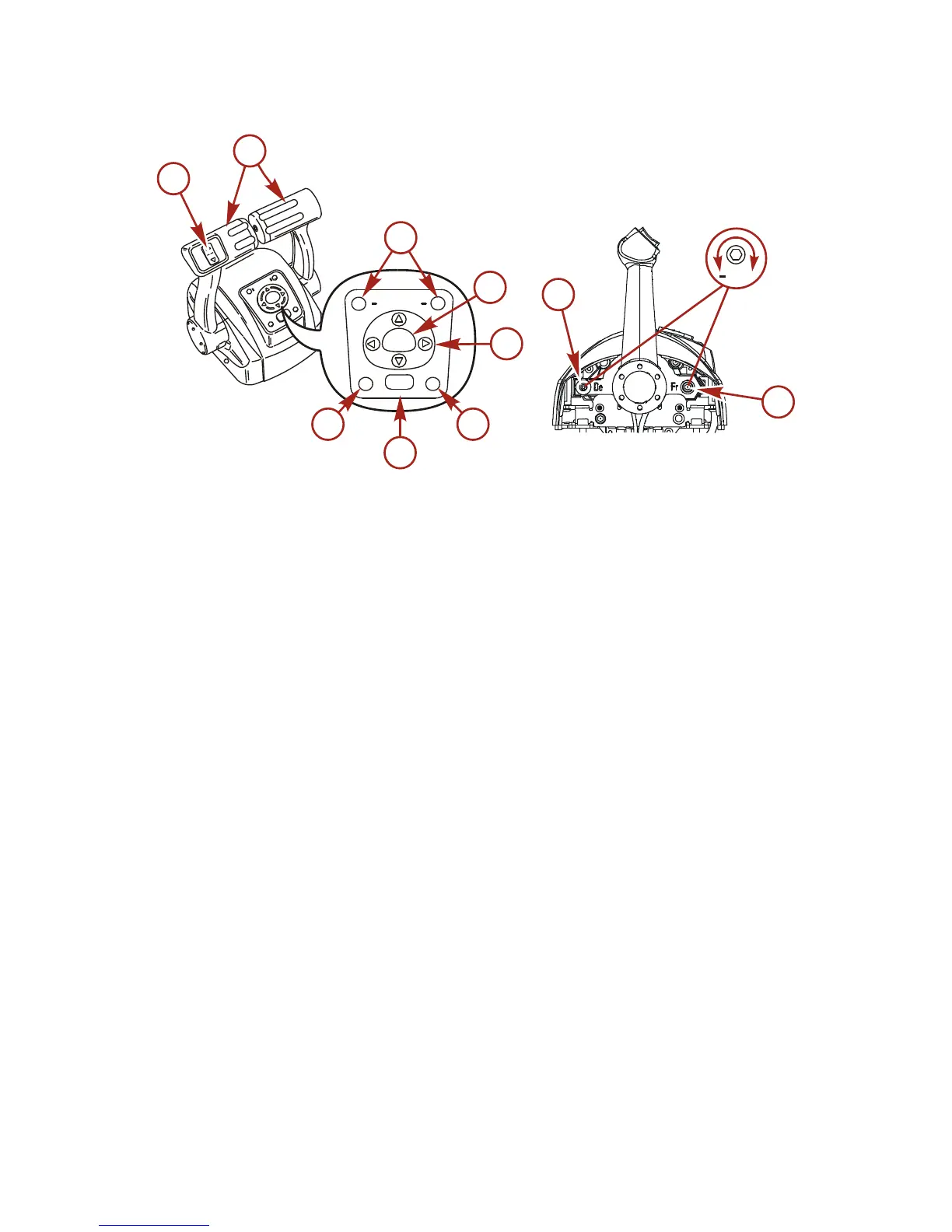

a - Trim/tilt switch ‑ Refer to Power Trim and
Tilt.
b - Control handle ‑ Forward (F), Neutral (N),
Reverse (R).
c - Active light ‑ Illuminated when remote
control is active and ready.
d - Neutral light ‑ Illuminated when engine is in
neutral gear position. Blinks when engine is
in throttle only mode.
e - Select key ‑ Used to select System View
on‑screen options, if equipped. Refer to
System View Operation Manual for screen
options.
f - Arrow trackpad ‑ Used to scroll through
System View displays, if equipped. Refer to
System View Operation Manual for screen
options.
g - Sync light ‑ Illuminated when the auto
synchroning feature is engaged. Refer to
Operation ‑ Starting The Engine.
h - Throttle only/station select key ‑ Allows the
boat operator to increase engine RPM for
warm‑up, without shifting the engine into gear.
Allows the boat operator to select which
station will be used for dual helm applications.
Refer to Operation ‑ Starting The Engine.
i - Detent tension adjustment ‑ Refer to
Operation ‑ Remote Control Adjustments.
j - Control handle friction adjustment screw ‑
Refer to Operation ‑ Remote Control
Adjustments.
Throttle and Shift Operation
Movement of the handles on the remote control allows the boat operator to control the engine throttle speed and
gear shift positions of all three engines.
The throttle and shift function is dependant on what engines are running. Refer to the following table.
