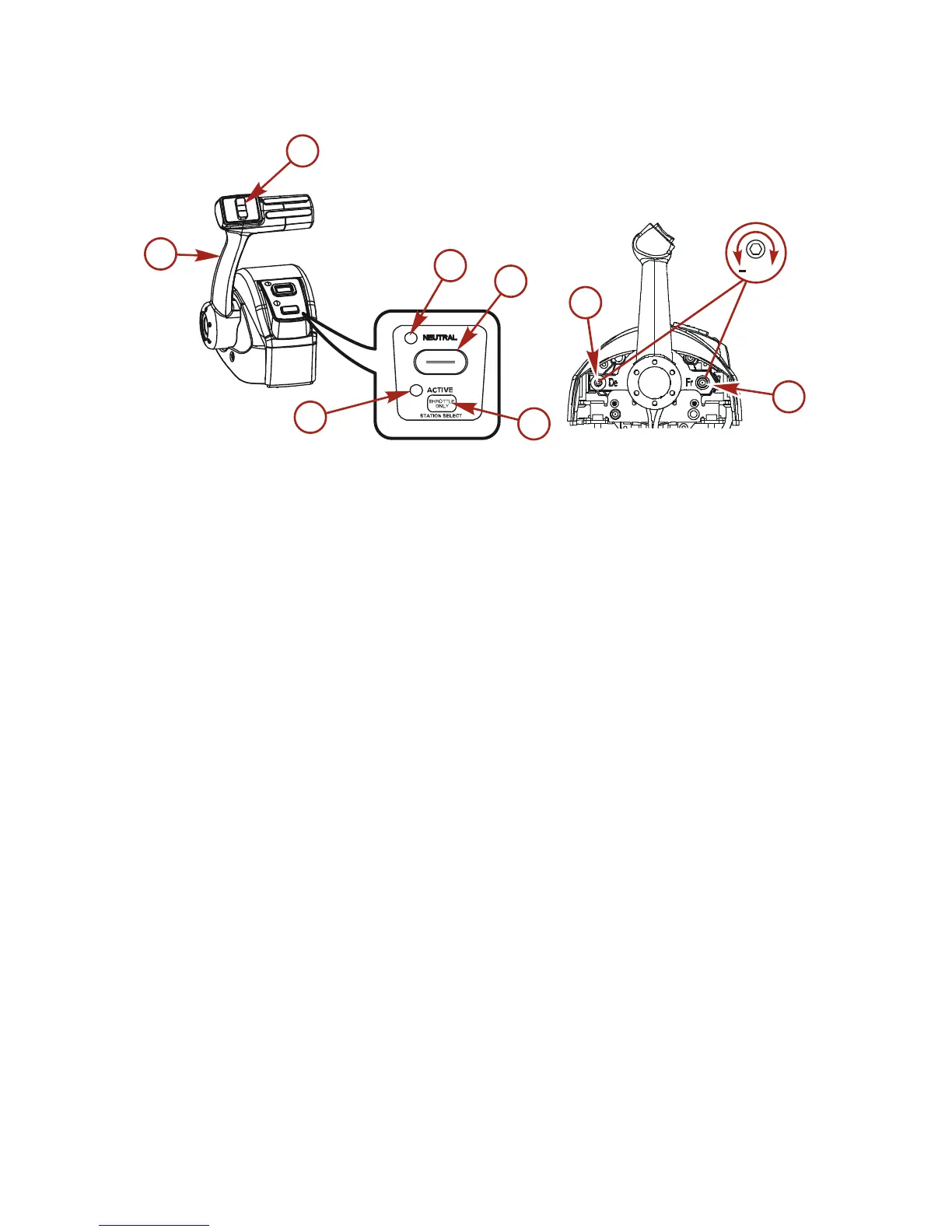

a - Control handle ‑ Forward (F), Neutral (N),
Reverse (R).
b - Trim/tilt switch ‑ Refer to Power Trim and
Tilt.
c - Active light ‑ Illuminated when remote
control is active and ready.
d - Neutral light ‑ Illuminated when engine is in
neutral gear position. Blinks when engine is
in throttle only mode.
e - Start/stop button ‑ Allows the boat operator to
start or stop the engine without using the
ignition key.
f - Throttle only/station select key ‑ Allows the
boat operator to increase engine RPM for
warm‑up, without shifting the engine into gear.
Allows the boat operator to select which
station will be used for dual helm applications.
Refer to Operation ‑ Starting The Engine.
g - Detent tension adjustment ‑ Refer to
Operation ‑ Remote Control Adjustments.
h - Control handle friction adjustment screw ‑
Refer to Operation ‑ Remote Control
Adjustments.
