Mercury 25 Series User Manual

INSTALLATION
44

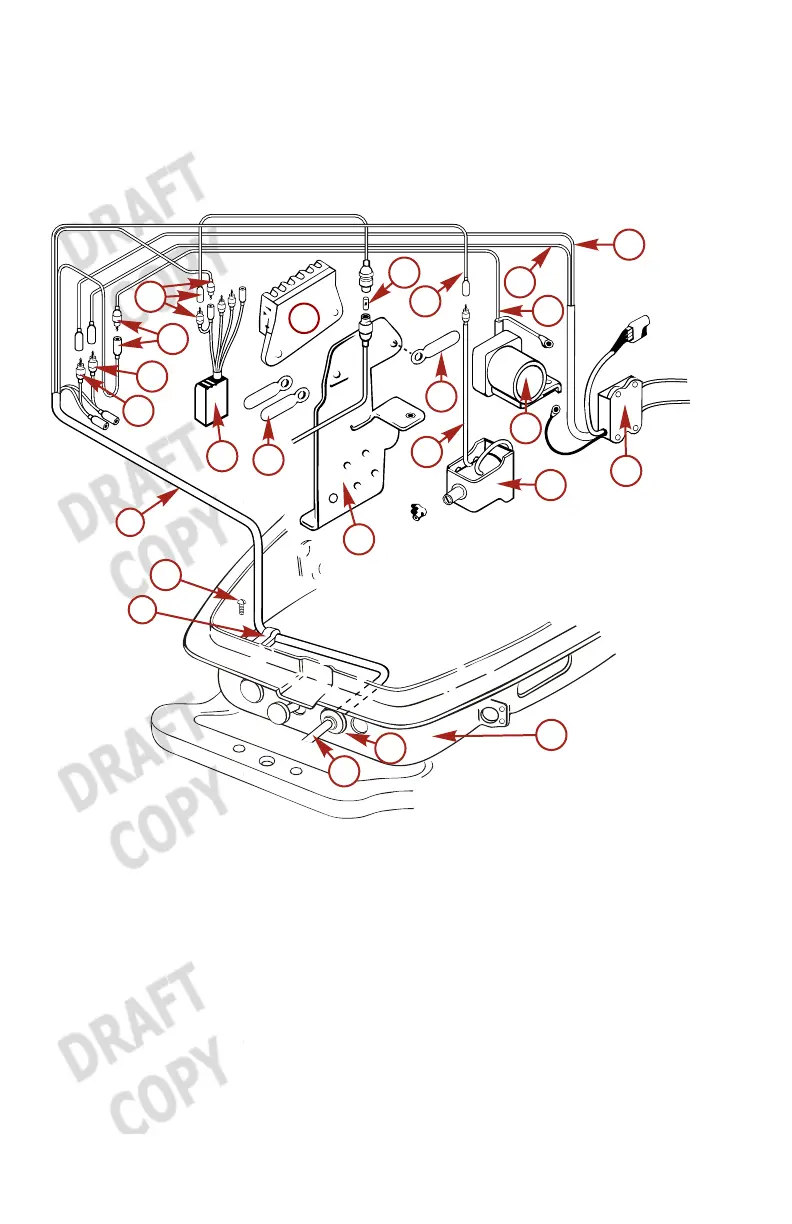

17.Attach the cord assembly: Connect the cord assembly from
the remote control box to respective terminals through the
lower motor cover as illustrated. Fasten the cord assembly
with clamps.
37505
a
b
c
b
c
d
f
j
i
h
j
i
g
k
l
m
n
o
r
s
p
q
e
d
a - Cord assembly
b - Black terminal
c - Brown terminal
d - Green terminal
e - Red terminal
f - Rectifier
g - Terminal holder
h - Fuse
i - Clamps
j - Blue terminal
k - Starter solenoid
l - CD Unit
m -Choke solenoid
n - Starter solenoid bracket
o - Lower motor cover
p - Grommet
q - To remote control box
r - Clamp
s - Screw

Mercury 25 Series Specifications

General

Gear Ratio	2.08:1
Horsepower	25 HP
Steering	Tiller
Shaft Length	15 in, 20 in
Starting	Manual
Full Throttle RPM Range	5000- RPM
Fuel Type	Gasoline
