Mercury 30 2-Stroke User Manual

INSTALLATION
37
2.

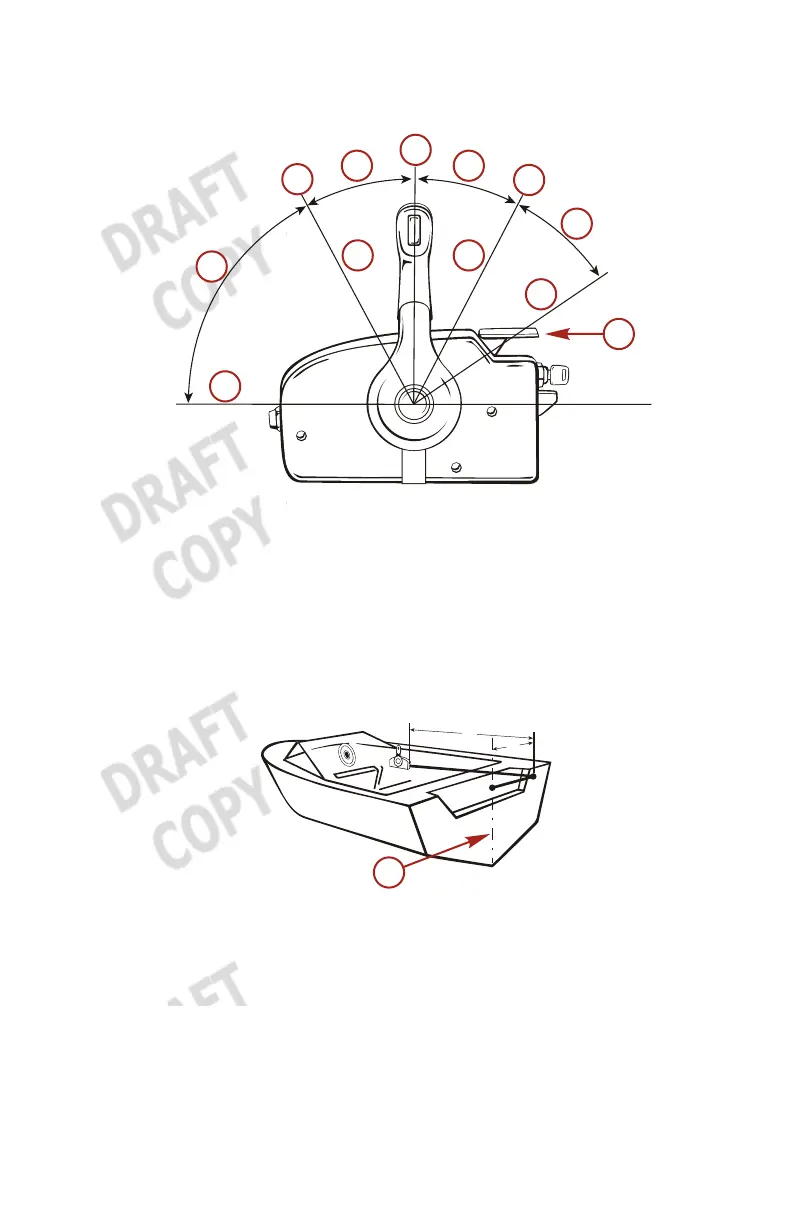

Remote control features
37531
a
b
c
d
e
g
b
a
f
d
c
h
a - Fully opened position
b - Fully closed position
c - Throttle
d - Shift
e - Neutral (N)
f - Forward (F)
g - Reverse (R)
h - Throttle only lever
3. Determining remote control cable length: A guideline for
determining the proper length for a remote control cable is
dimensions A plus B plus 300 mm (1 foot).
37530
a
A
B
a - Center of stern
NOTE: The minimum bend radius for a remote control cable is
typically 203 mm (8 in.). Avoid making sharp bends.
