OUTBOARD INSTALLATION
eng 127
4. Align the cable end guide against this center mark when installing the
cable to the engine.
5. Position the remote control and outboard into neutral position.
6. Slide the anchor pin forward until resistance is felt, then slide the anchor
pin toward the rear until resistance is felt.
7. Center the anchor pin between these resistance points.

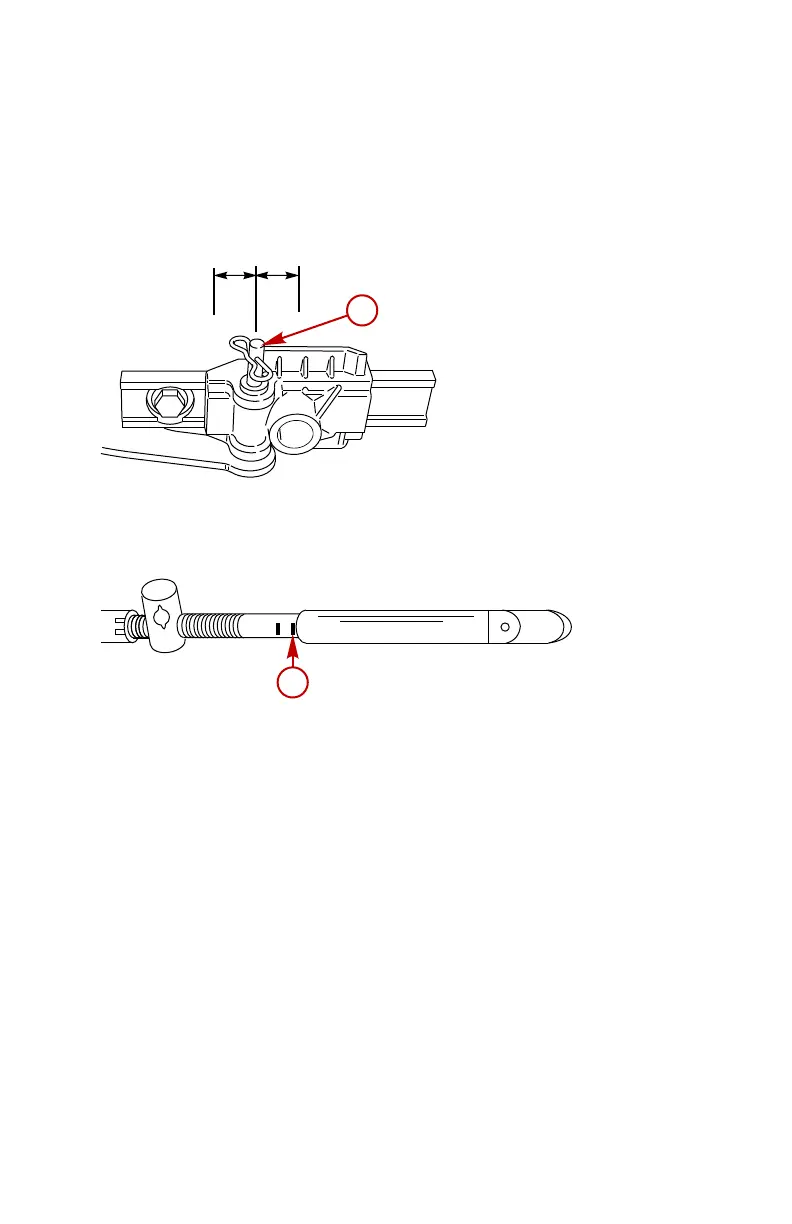

a - Anchor pin
Adjusting the Shift Cable
1. Align the shift cable end guide with the center mark as instructed in
Locating the Center Point of the Shift Cable.
a - Center mark
2. Place the shift cable end guide on the anchor pin and adjust the cable
barrel so that it slips freely into the barrel holder.
a
28746
4362
a
