OUTBOARD INSTALLATION
130 eng
5. Lock the barrel holder in place with the cable latch.
2682
FRONT CLAMP ASSEMBLY INSTALLATION
IMPORTANT: There must be sufficient slack in the engine wiring harness,
battery cables, fuel hose, and oil hoses, between clamp and engine attachment
point, to relieve stress and prevent hoses from being kinked or pinched.
1. Place the lower half of the front clamp into the bottom cowl opening.
2. Place the neoprene wrap around the wiring, hoses, and control cables,
and place into the lower half of the front clamp.

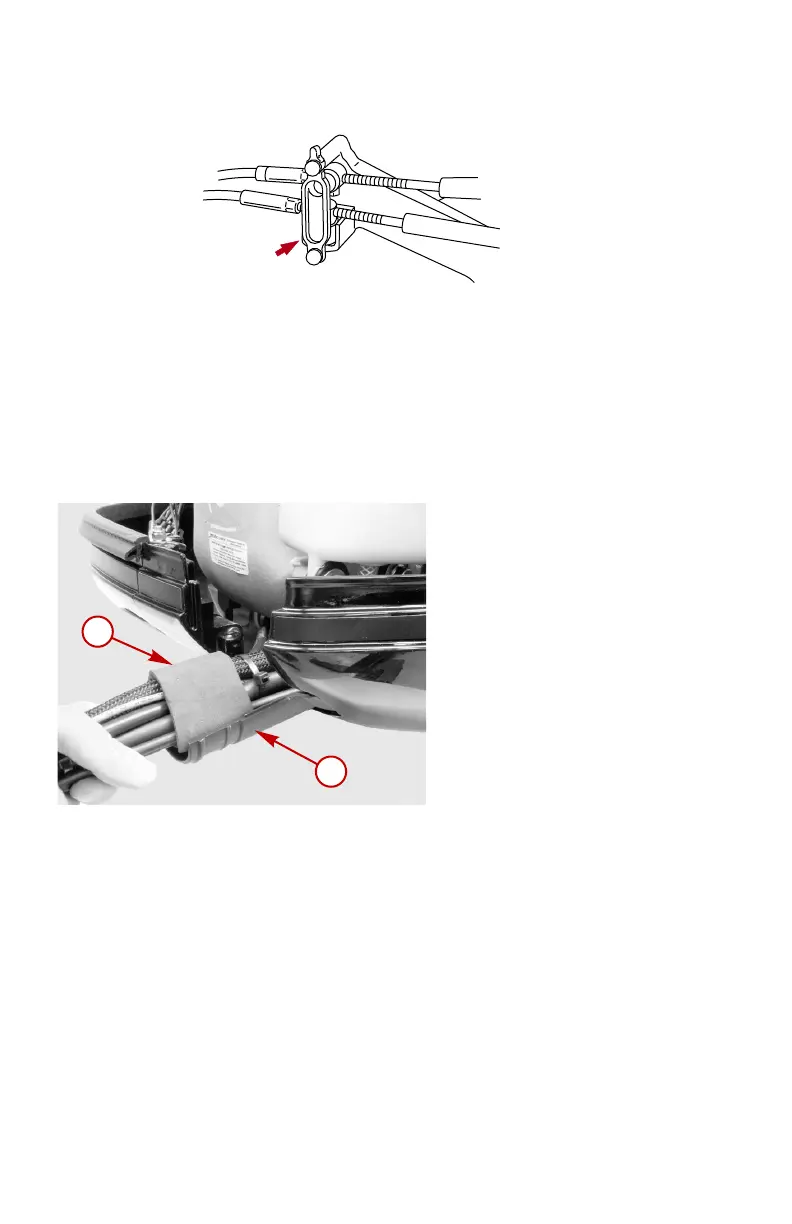

a - Neoprene wrap
b - Lower half of the front clamp
a
b
29073
