Mercury 40 Jet User Manual

OUTBOARD INSTALLATION
98
3. Fasten the outboard to the transom at this height. Refer to
Fastening the Outboard.
22403
BOATS WITH A FLAT BOTTOM HULL

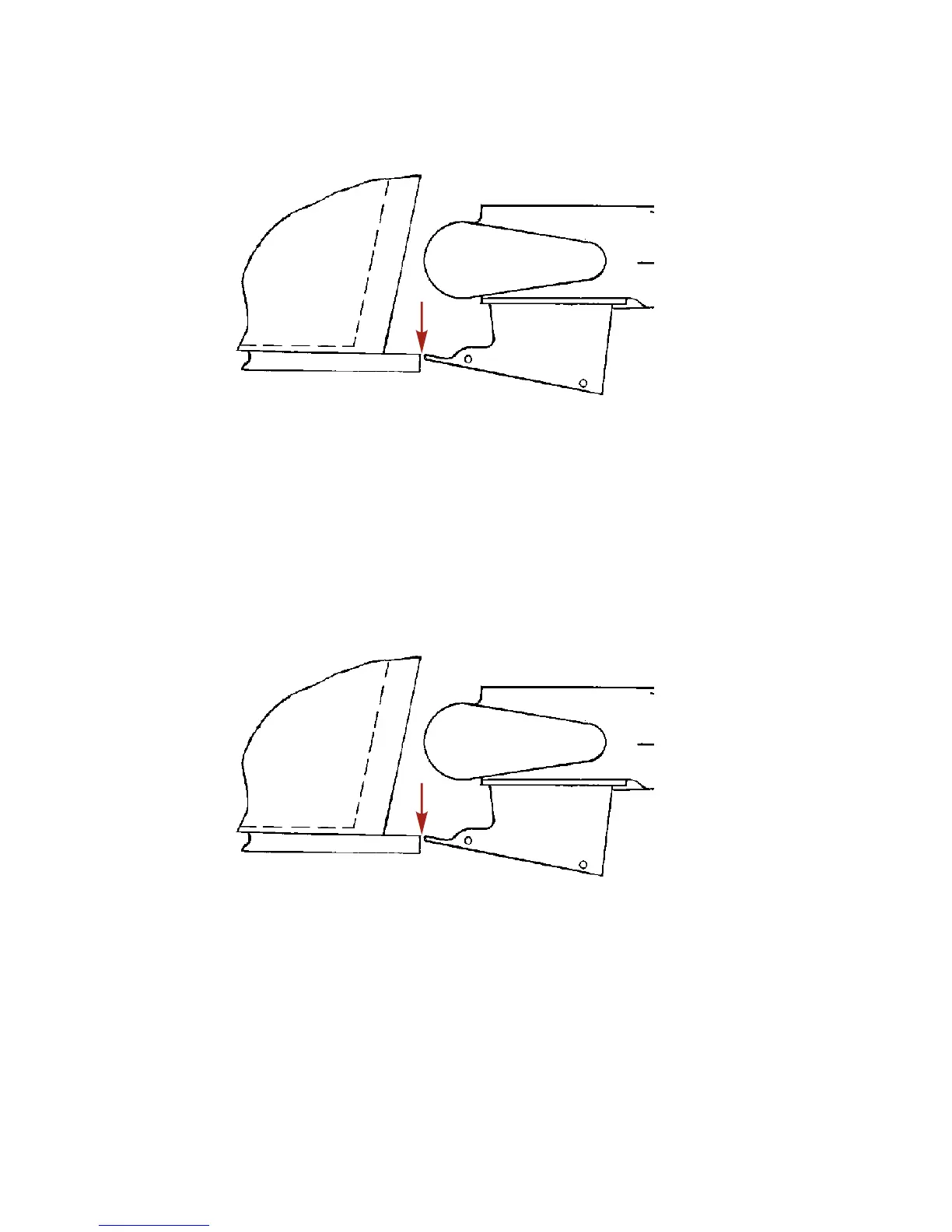

1. Place (center) the outboard on the boat transom. Set the
height of the outboard on the boat transom so that the front
edge of the water intake housing is in line with the bottom of
the boat as shown. Temporarily clamp the outboard to the
transom at this position.
2. Fasten outboard to the transom at this height. Refer to
Fastening the Outboard.
22403

Mercury 40 Jet Specifications

General

Cylinders	3
Starting	Electric
Steering	Remote
Shaft Length	20 in
Horsepower	40 HP
Alternator Output	226-watt
Warranty	3 years
