2.

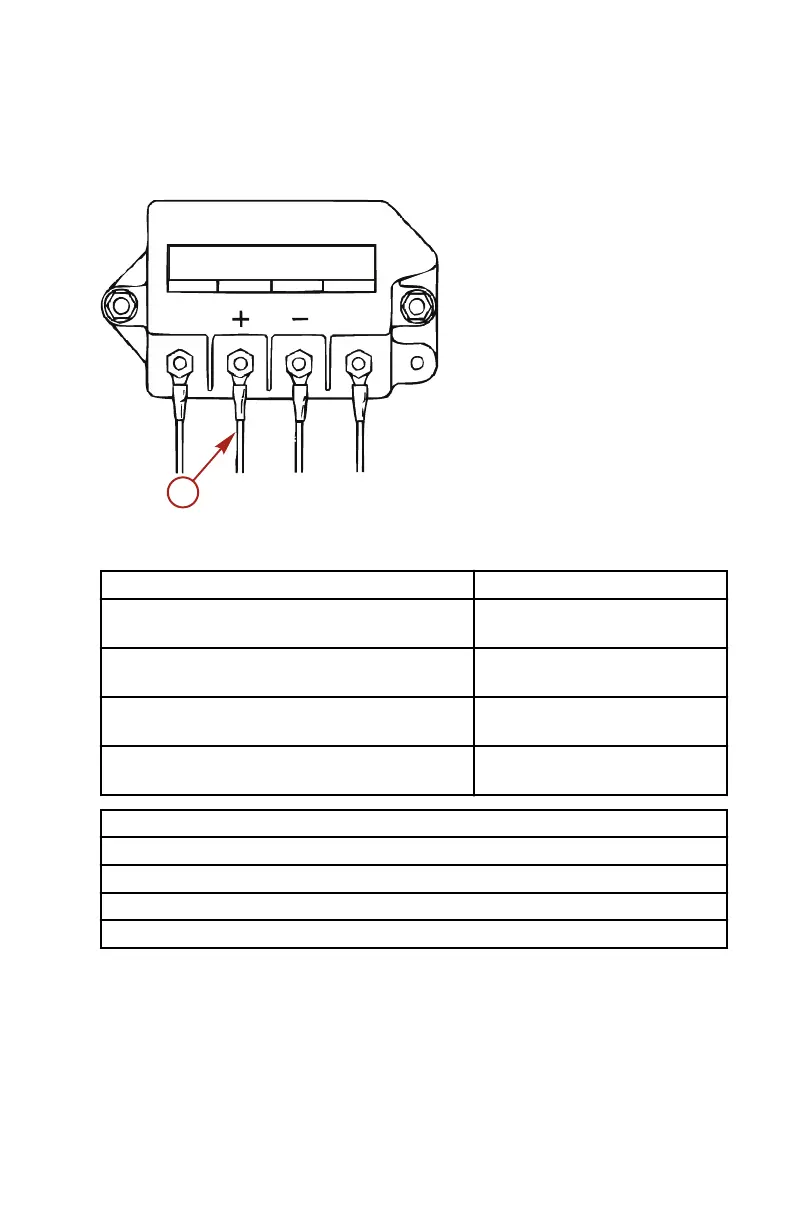

Bravo Drive: The MerCathode system has a 20‑amp in‑line fuse in the
wire, which connects to the positive (+) terminal on the controller. If the
fuse is open, the MerCathode system will not operate and a loss of
corrosion protection will result.
a - 20‑amp in‑line fuse
3. There are twelve fuses in three fuse holders (four fuses in each holder).
Fuse Holder ‑ A
Fuse Holder ‑ B
(1) 15 amp ‑ Cylinder number 8 fuel injector
and ignition coil
(1) 2 amp ‑ Diagnostic power
(2) 15 amp ‑ Cylinder number 2 fuel injector
and ignition coil
(2) 20 amp ‑ Main power
relays
(3) 15 amp ‑ Cylinder number 6 fuel injector
and ignition coil
(3) Not used
(4) 5 amp ‑ Cylinder number 4 fuel injector
and ignition coil
(4) 20 amp ‑ PCM driver
power
Fuse Holder ‑ C
(1) 15 amp ‑ Cylinder number 7 fuel injector and ignition coil
(2) 15 amp ‑ Cylinder number 1 fuel injector and ignition coil
(3) 15 amp ‑ Cylinder number 5 fuel injector and ignition coil
(4) 15 amp ‑ Cylinder number 3 fuel injector and ignition coil
4. There are two circuit breakers:
• 50‑amp main power circuit breaker
OPERATION
eng 35
