6. Run the engine for a short period of time and recheck tension.

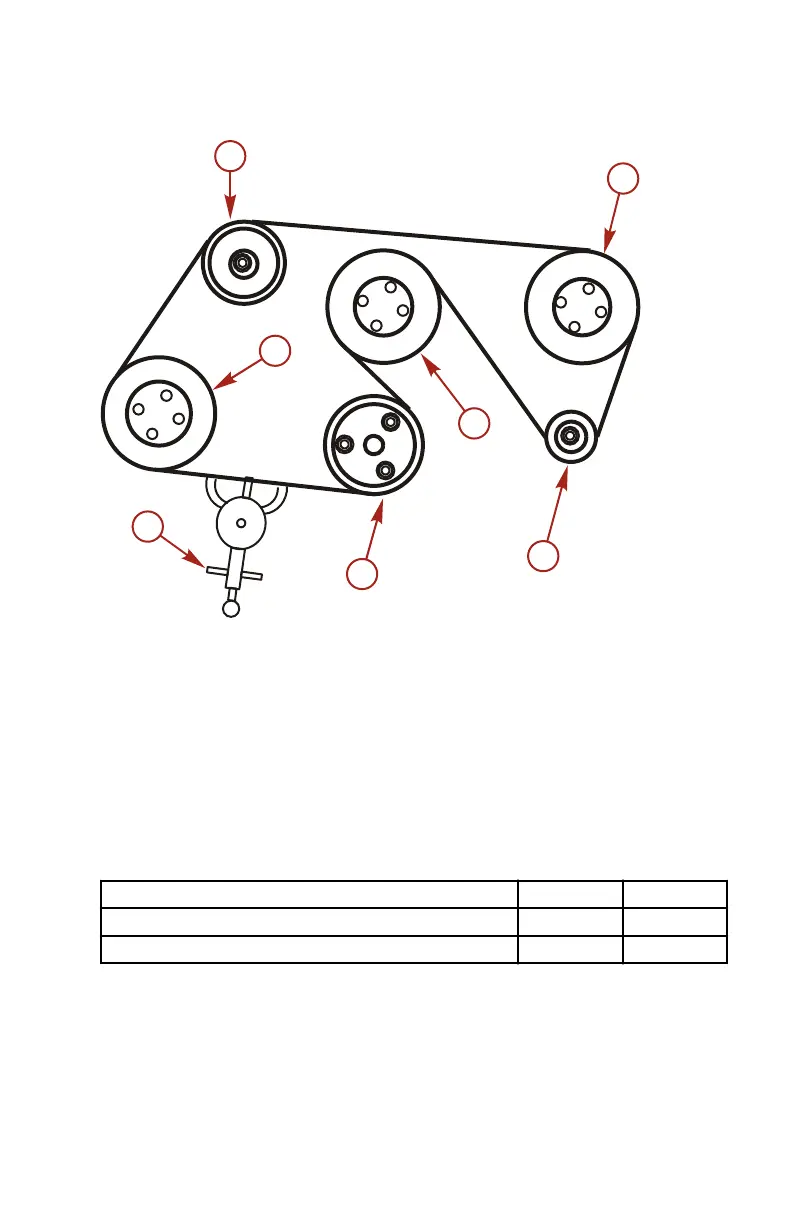

a - Crankshaft pulley
b - Water circulating pump pulley
c - Alternator pulley
d - Power steering pump pulley (Non‑power steering models have an
idler pulley)
e - Idler pump
f - Seawater pump pulley
g - Belt tension gauge
Description N lb.
New Belt 489 110
Used Belt 400 90
INSPECTING BELT
NOTE: Minor, transverse cracks (across the belt width) may be acceptable.
Longitudinal cracks (in the direction of belt length) that join transverse cracks
are not acceptable.
The belt will have to be replaced for the following conditions:
• Excessive wear
MAINTENANCE
eng 73
