75, 90 and 115 (4-STROKE) INSTALLATION MANUAL
Page 11 of 18
4. Position remote control into neutral.

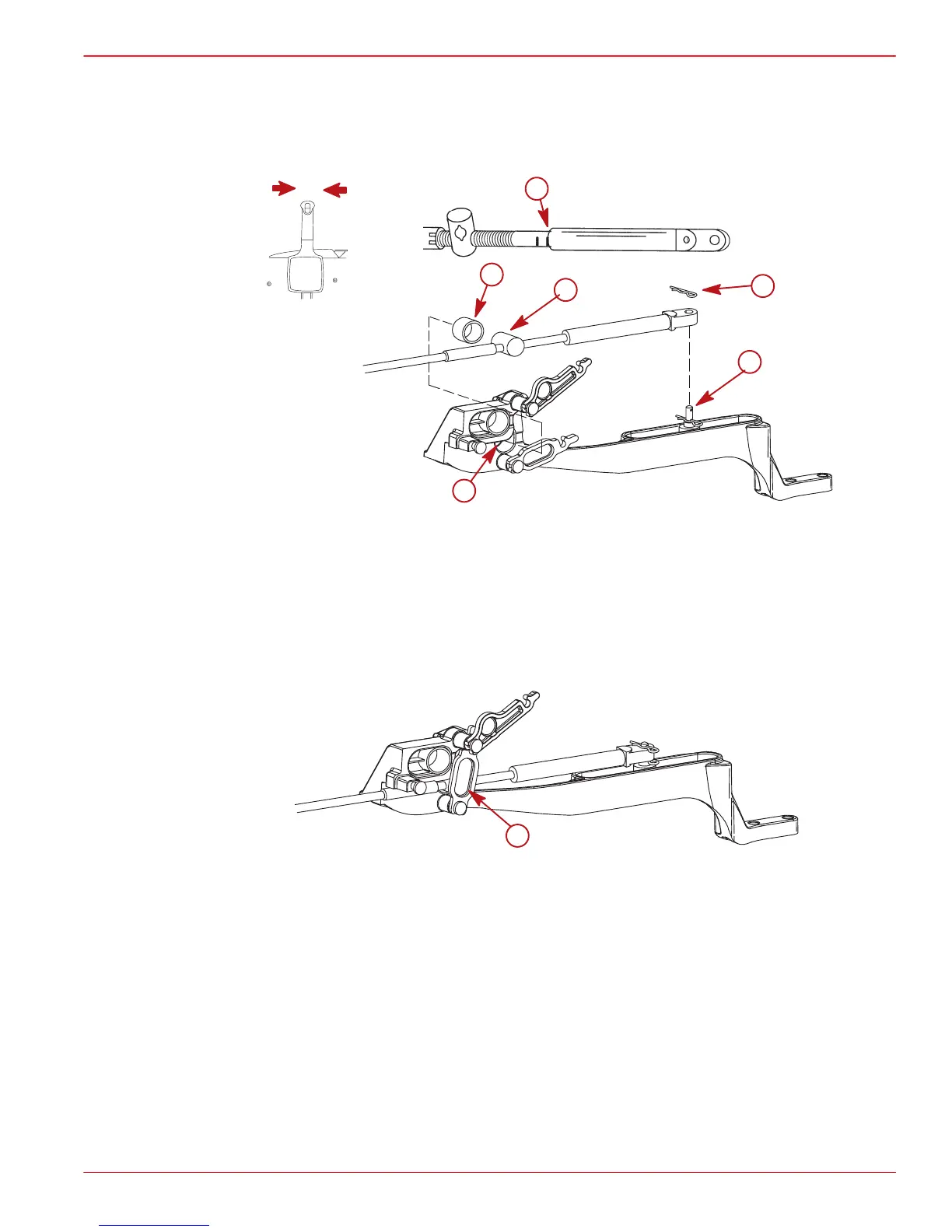

5. Align the shift cable end guide with the center point made in Step 2. Place shift cable
on anchor pin. Adjust cable barrel so it slips freely into the barrel holder.
6. Secure shift cable to the anchor pin with hair pin retainer.
N
a
b
c
d
e
f
a-Center Mark
b-Anchor Pin
c-Barrel Insert
d-Cable Barrel
e-Barrel Holder
f-Hair Pin Retainer
7. Lock cable barrel in place with cable latch.
a
a-Cable Latch
8. Check shift cable adjustments as follows:
a. Shift remote control into forward. The propeller shaft should be locked in gear. If not,
adjust the barrel closer to the cable end.
b. Shift remote control into neutral. The propeller shaft should turn freely without drag.
If not, adjust the barrel away from the cable end. Repeat steps a and b.
c. Shift remote control into reverse while turning propeller. The propeller shaft should
be locked in gear. If not, adjust the barrel away from the cable end. Repeat steps a
thru c.
d. Shift remote control back to neutral. The propeller shaft should turn freely without
drag. If not, adjust the barrel closer to the cable end. Repeat steps a thru d.
