75, 90 and 115 (4-STROKE) INSTALLATION MANUAL
Page 12 of 18
75 and 90 Hp Throttle Cable Installation
Install cables into the remote control following the instructions provided with the remote
control.
1. Position remote control into neutral.
N
2. Install throttle cable to the throttle arm with hairpin cotter.
3. Adjust the cable barrel so that the installed throttle cable will hold the throttle arm against
the idle stop.
4. Place cable barrel into retainer and install.
5. Fit throttle cable through the rubber grommet.
6. Lock the cable barrel in place with the cable latch.
a
b
c
d
e
f
g
h

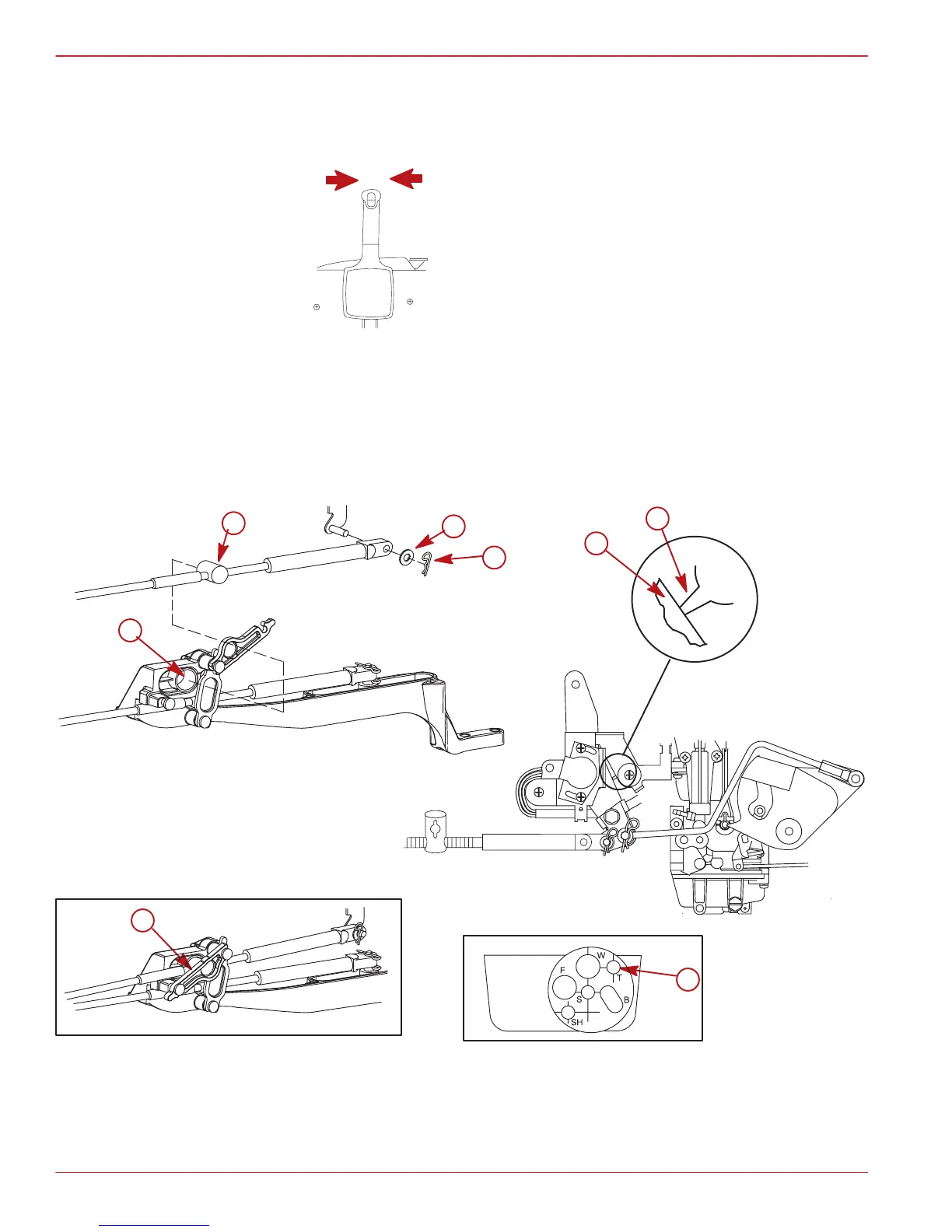

a-Flat Washer
b-Hairpin Cotter
c-Cable Barrel
d-Barrel Retainer –
Toward Rear
e-Throttle Arm
f-Idle Stop
g-Throttle Cable Opening
h-Cable Latch
