GASOLINE ENGINE 8.1 S INBOARD MODELS
Page 14 of 58

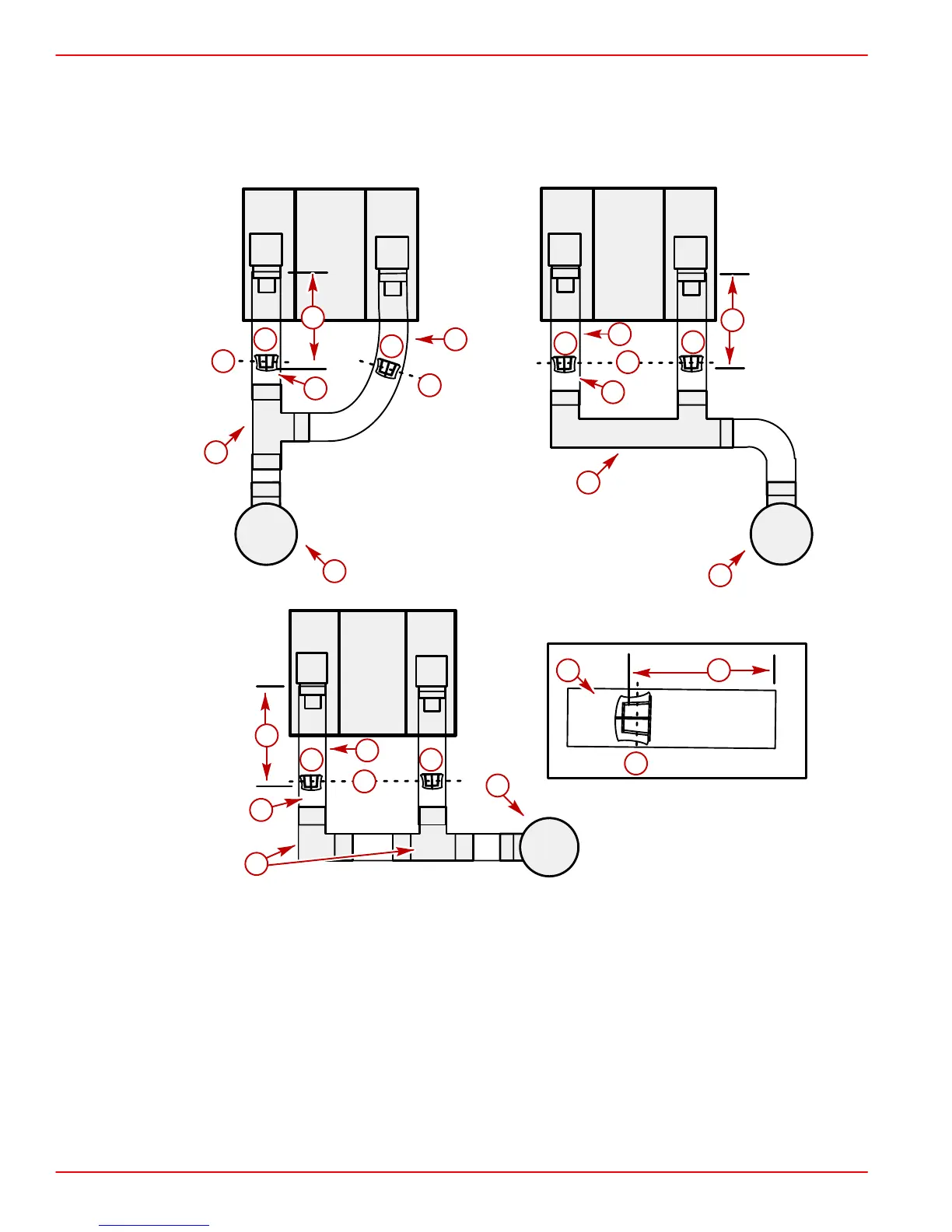

The exhaust resonator is positioned with the inside flat surface at the preferred distance
of 17 in. (432 mm) from the front edge of the exhaust hose but no closer than 2 in. (51
mm) to the exhaust outlet on sterndrives. The 17 in. (432 mm) dimension can be re-
duced, if necessary, to a MINIMUM of 13 in. (330 mm). This dimension must be the same
on both exhaust outlets.
e
e
e
a
a
a
a
b
b
d
d
c
c
f
f
g
g
75768
c
a a
e
f
b
d
e
b
c
g
a-Exhaust Resonator
b-Exhaust Hose
c-Dimension to Inside Flat Surface Of Resonator Approximately 17 in. (432 mm)
d-No Less Than 2 in. (51 mm) Between Collector And Resonator
e-Clamp - Positioned Around Center of Resonator
f-Exhaust Muffler
g-Collector
