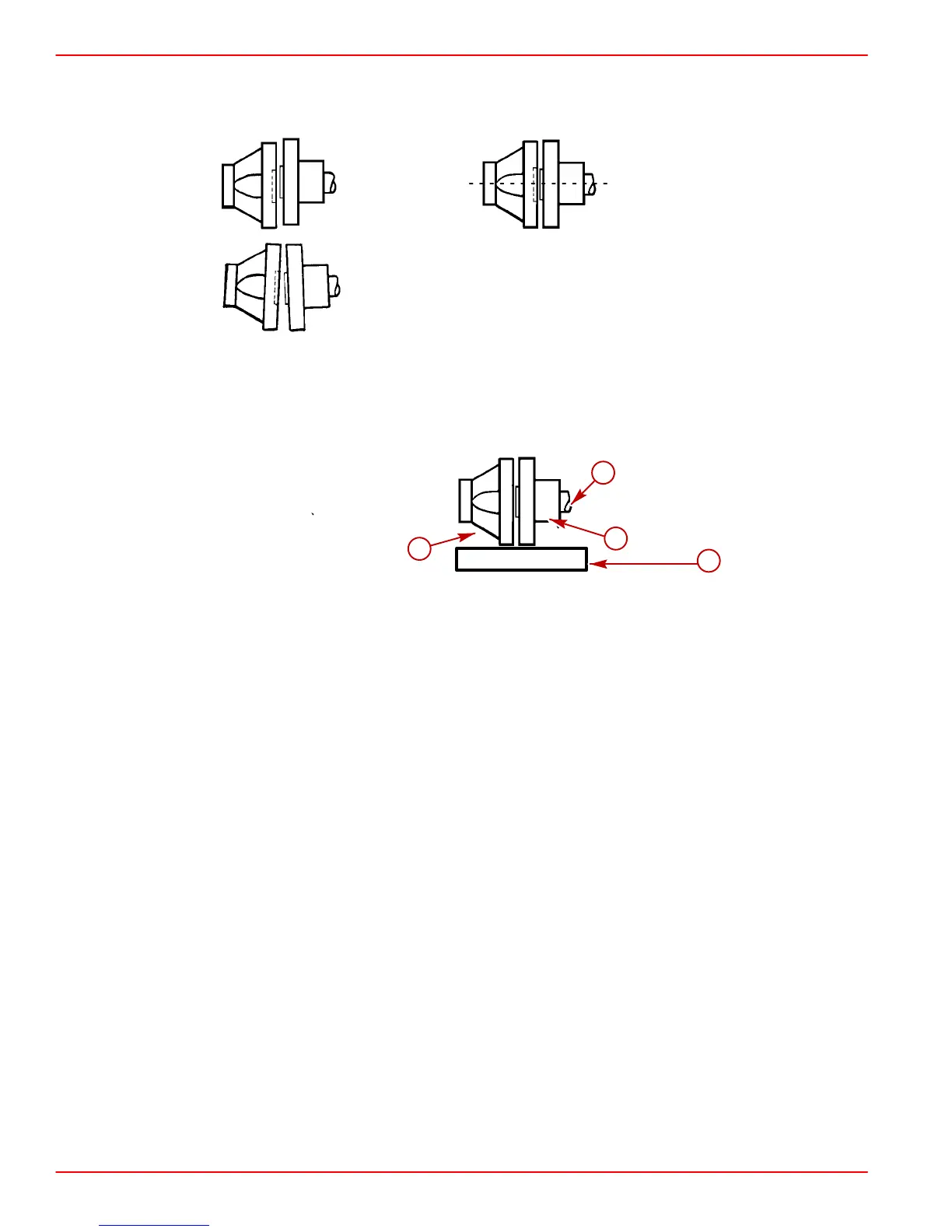

3. Ensure that coupling centerlines align by butting propeller shaft coupler against
transmission output flange. Shoulder on propeller shaft coupler should engage recess
on transmission output flange face with no resistance.
72597
Incorrect Correct
NOTE: Some propeller shaft couplers may not have a shoulder on mating face. On these
installations, use a straight edge to check centerline alignment.
74483
c
d
b
a
a-Transmission Output Flange
b-Propeller Shaft Coupler
c-Propeller Shaft
d-Straight Edge
