Mercury MerCruiser 8.1S - Page 51

GASOLINE ENGINE 8.1 S INBOARD MODELS
Page 51 of 58
73590
71211
e
g
f
e
c
b
a
d
b

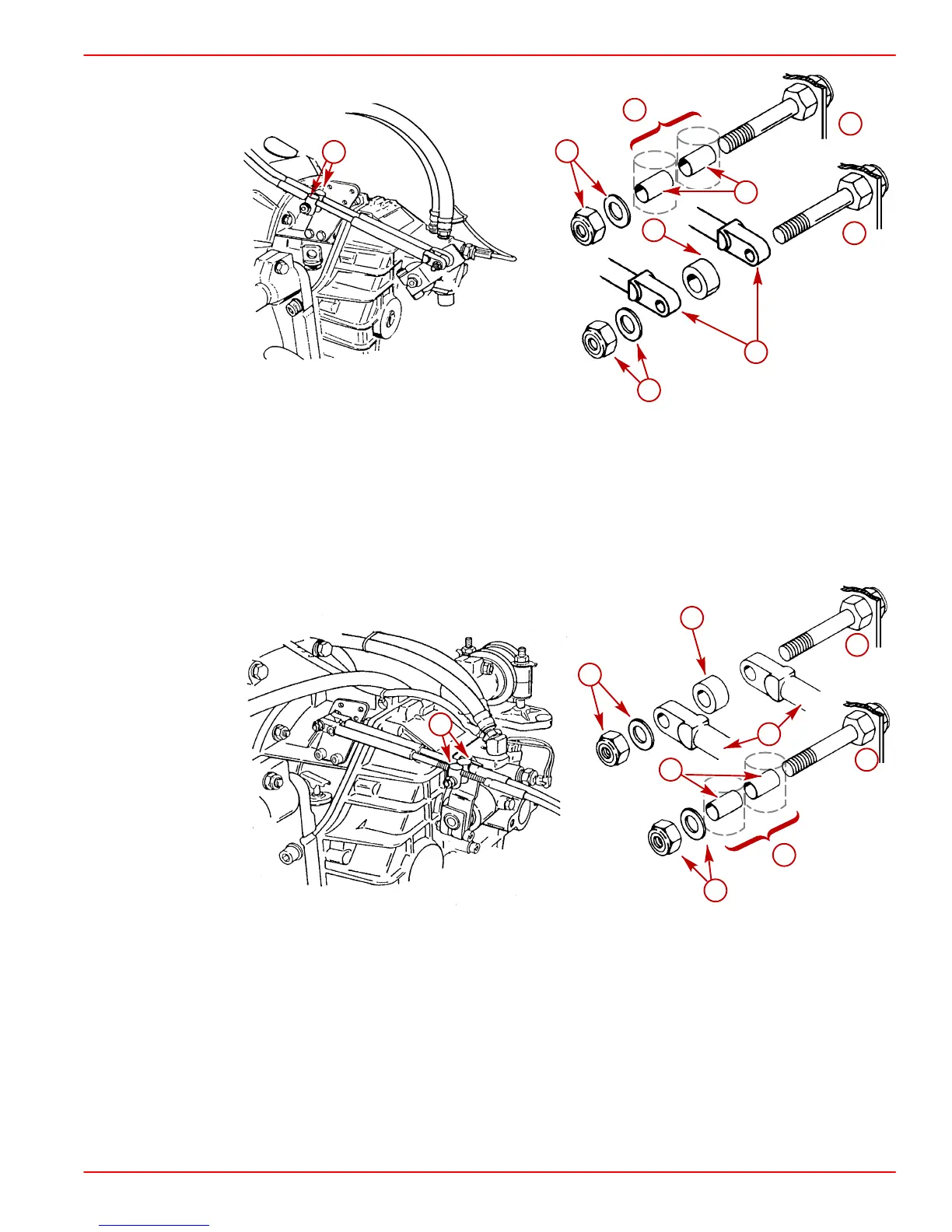

Typical Dual Cable - Forward Entry
a-Cable End Guides
b-Locknut And Washer
c-Spacer (Fits Over Stud)
d-Bushings
e-Cable Barrel Locations
f-Cable Barrel Stud
g-Cable End Guide Stud
73591
50073
e
f
g
e
b
c
d
a
b
Typical Dual Cable - Rear Entry
a-Cable End Guides
b-Locknut And Washer
c-Spacer (Fits Over Stud)
d-Bushings
e-Cable Barrel Locations
f-Cable Barrel Stud
g-Cable End Guide Stud
