GASOLINE ENGINE 8.1 S INBOARD MODELS
Page 7 of 58
Propeller Rotation (Continued)
c
25506
a
b
d
e
b

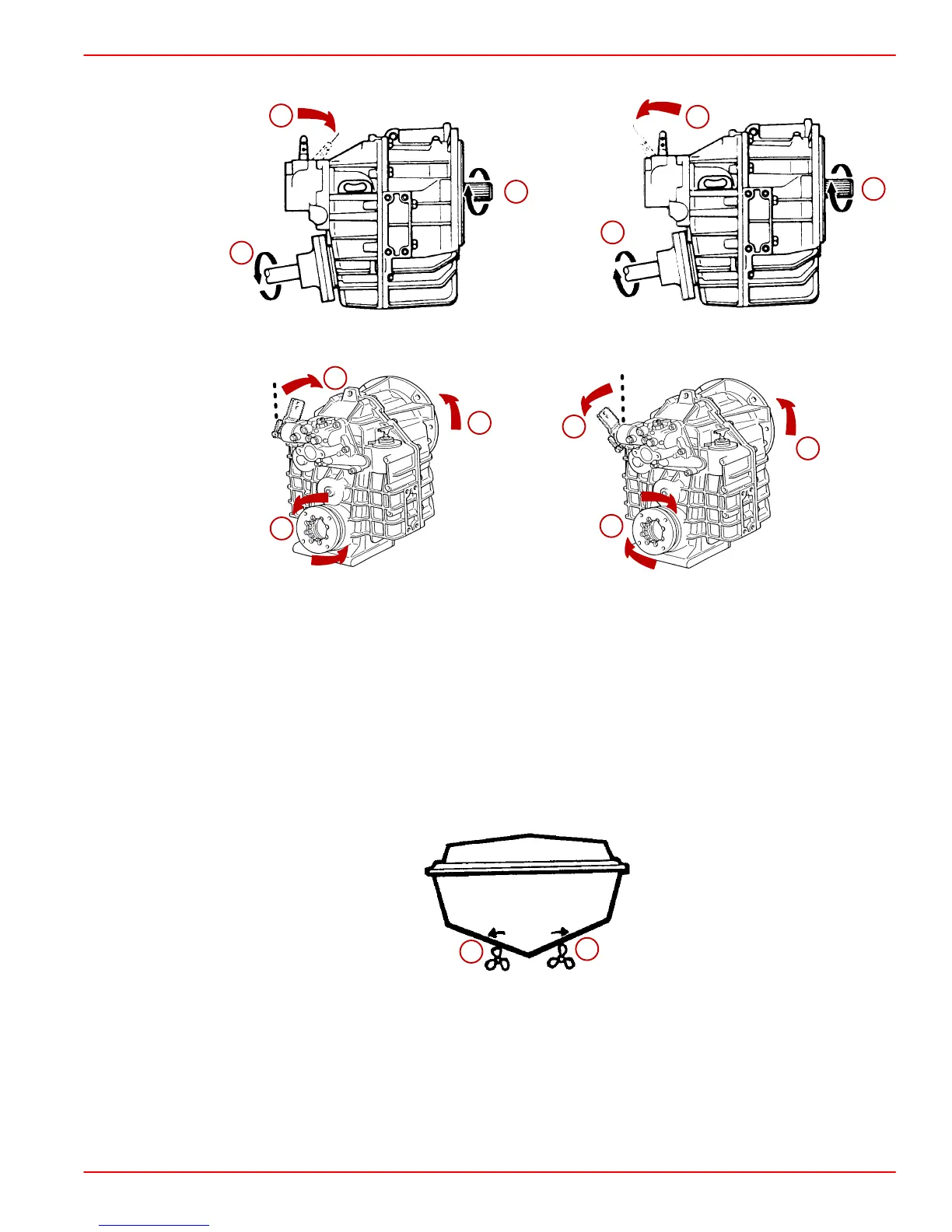

ZF / Hurth 630A or 800A - 8° Down-Angle Transmissions
72959
72959
a
b
c
d
e
b
ZF / Hurth 630V - V-Drive Transmissions
a-Direction Of Shift Lever Engagement (Toward Flywheel)
b-Engine/Transmission Input Shaft Rotation Direction (LH)
c-Transmission Output/Propeller Shaft Rotation Direction (LH)
d-Direction Of Shift Lever Engagement (Away From Flywheel)
e-Transmission Output/Propeller Shaft Rotation Direction (RH)
PROPELLER ROTATION ON DUAL INSTALLATIONS
Best all-around performance usually is obtained by installing engines so that propellers turn
outboard (looking at the stern).
22457
a
b
Outboard Propeller Rotation
a-RH Rotation
b-LH Rotation
