MCM MODELS - BRAVO AND BLACKHAWK DRIVES WITH DRIVESHAFT EXTENSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2B-7

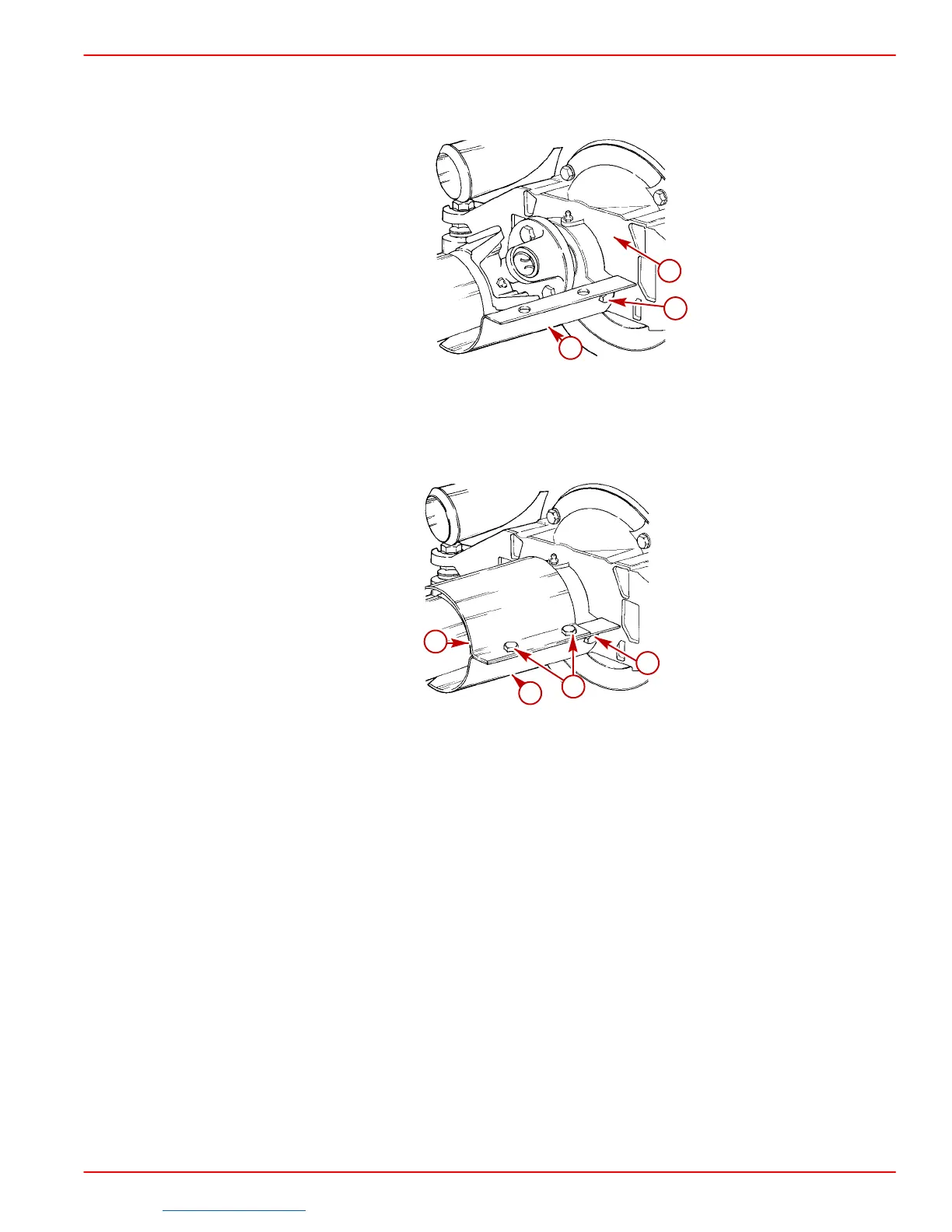

9. Apply Loctite 271 to threads of bottom drive shaft shield retaining screws and install
bottom shield on engine end as shown. Torque screws to 30 lb-ft (41 Nm). Then install
top shield as shown. Torque bolts and nuts to 30 lb-ft (41 Nm).
72028
a
b
c
Engine End Shown
a-Shaft Housing
b-Bottom Shield
c-Screws (3 Used - 2 Hidden in This View) (Use Loctite 271)
72033
d
c
b
a
Engine End Shown
a-Top Shield
b-Bottom Shield
c-4 Bolts / Nuts (2 Hidden)
d-3 Screws (2 Hidden)
10. Proceed to “Engine Connections” section instructions following.
