STARTING SYSTEM SERVICE MANUAL NUMBER 23
Page 4A-22 90-861326--1 MARCH 1999

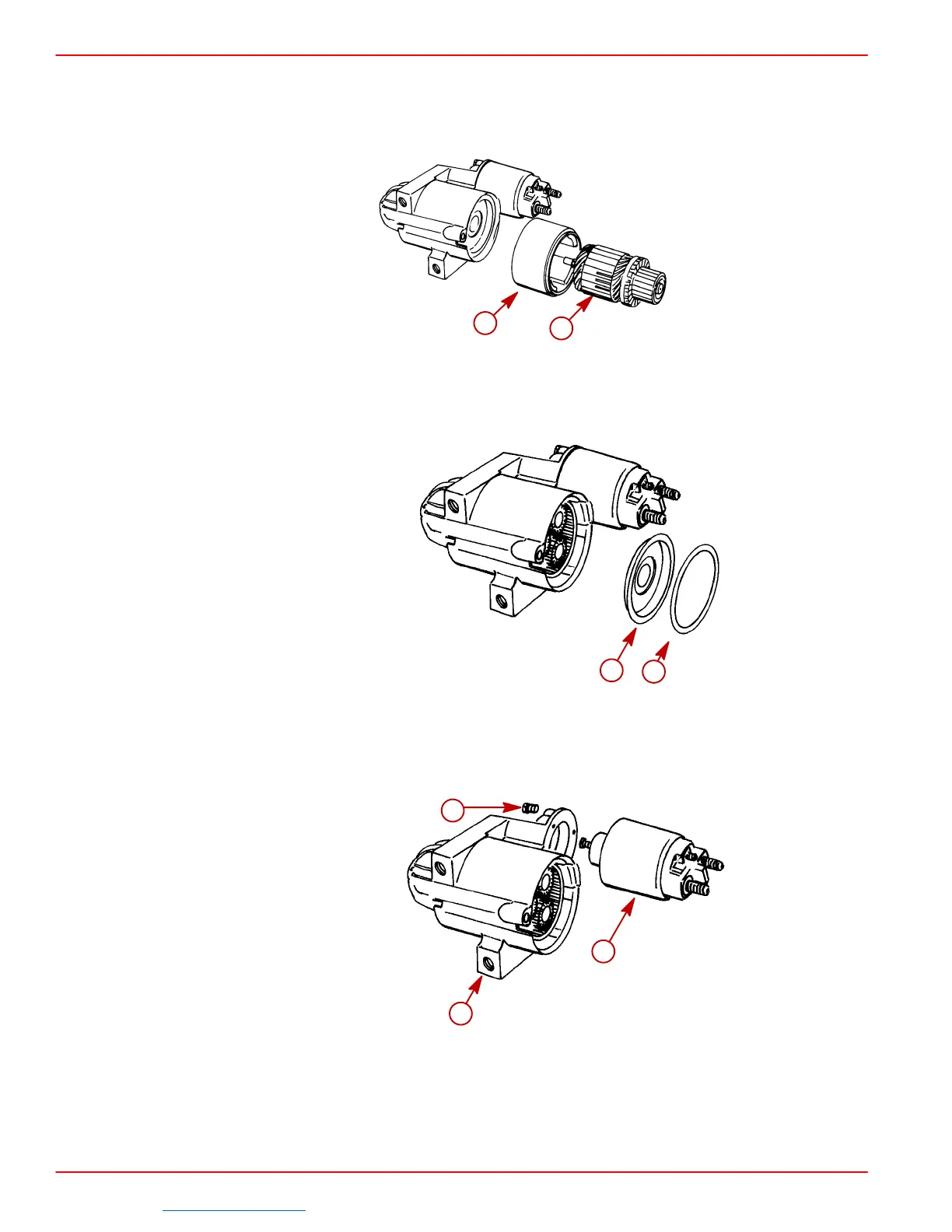

4. Remove armature and field frame from drive housing.
5. Pull armature out of field frame.
NOTE: Permanent magnets inside field frame will be holding armature in place.
74086
b
a
a-Armature
b-Field Frame
6. Remove shield and washer.
74038
a
b
a-Shield
b-Washer
7. Remove the three screws retaining the solenoid. Remove solenoid from drive housing.
74036
b
a
c
a-Drive Housing
b-Solenoid
c-Screws (2)
