Mercury MerCruiser MIE 7.4L MPI

IGNITION SYSTEM
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 4B-9

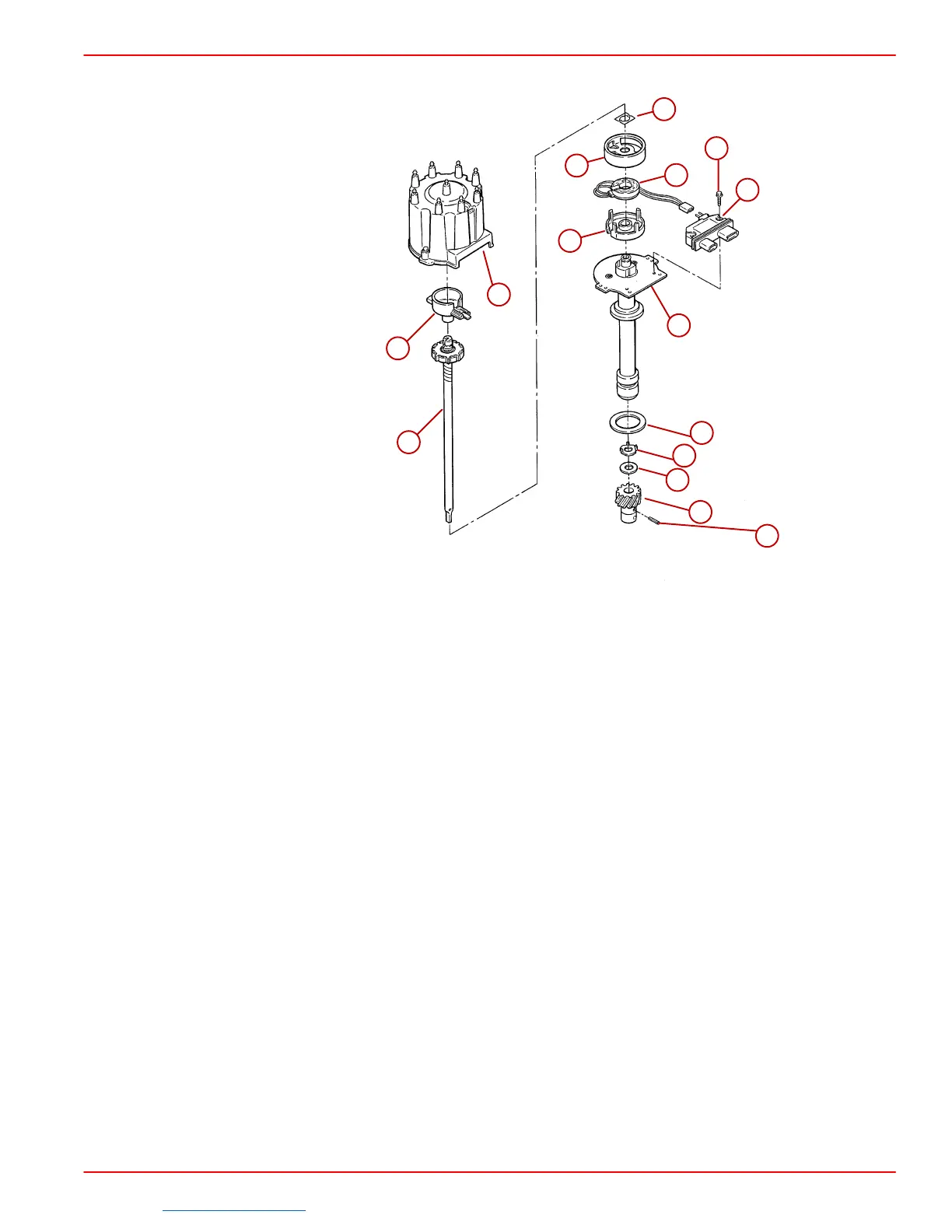

DISASSEMBLY
72411
i
o
n
m
l
k
j
i
h
g
f
e
d
c
b
a
a-Cap
b-Rotor
c-Shaft Assembly
d-Retainer
e-Shield
f-Pickup Coil
g-Pole Piece
h-Screw
i-Module
j-Housing
k-Gasket
l-Tang Washer
m-Washer
n-Gear
o-Pin
NOTE: Whenever disassembling distributor, the retainer (d) must be replaced. DO NOT
attempt to use old retainer.
