GENERAL SYSTEM DIAGNOSTICS SERVICE MANUAL NUMBER 23

Page 5E-36 90-861326--1 MARCH 1999

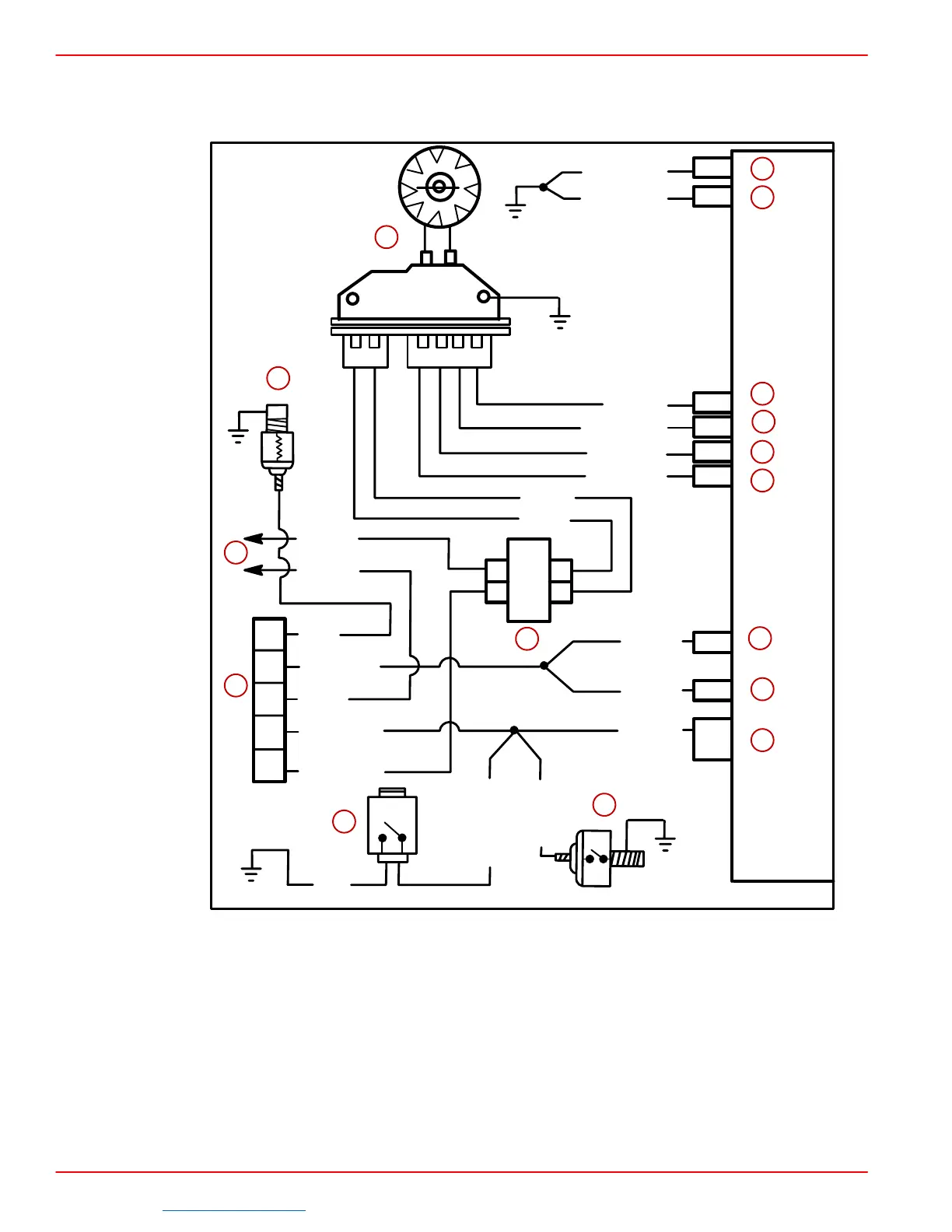

MEFI 2 - 7.4L MPI Wiring System Diagram (3 of 4)

75606

J1-14

J2-23

J2-8

J2-11

J2-26

J1-4

J1-30

J2-24

J2-6

450 BLK/WHT

121 WHT

112 GRY

31 TAN

931 BRN

423 WHT

430 PUR/WHT

424 TAN/BLK

453 RED/BLK

902 RED

3 PNK

585 TAN/WHT

3 PNK

31A DK GRN

DK BLU

121 BRN

3 PNK

906 TAN/WHT

114 PUR

450 BLK/WHT

J1-6

BLK
