VELVET DRIVE IN-LINE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 8A-6 90-861326--1 MARCH 1999
Changing Transmission Fluid
Draining Transmission

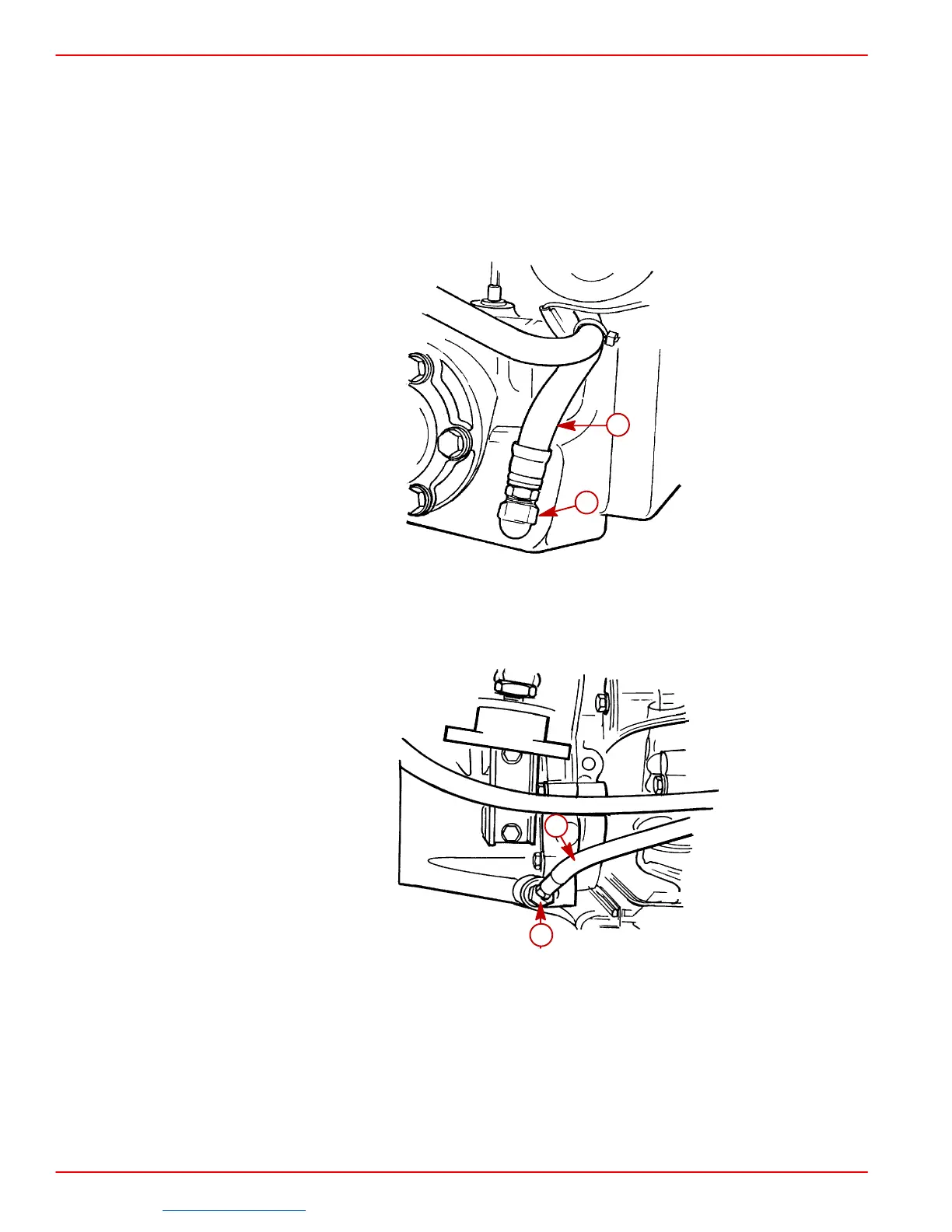

1. Clean area around cooler hose shown and proceed as follows:
a. Disconnect hose from elbow fitting.
b. Remove elbow fitting from bushing.
c. Drain oil from transmission, cooler and cooler hoses into a suitable container.
72840
a
b
Transmission With 1:1 Ratio
a-Hose
b-Elbow Fitting
72841
a
b
Transmission with Reduction Ratios
a-Hose
b-Bushing
2. Remove bushing, spring and strainer tube from transmission case. Allow transmission
to drain completely.
