POWER TRIM
90-855347R1 JANUARY 1999 Page 5B-45
IMPORTANT: Attach Vise Grip pliers to armature shaft before installing frame as-
sembly. The Vise Grip pliers will prevent the armature from being drawn out of the
brush card assembly by the frame magnets while installing the frame assembly.
3. Install Vise Grip pliers on armature shaft.
4. Carefully install frame assembly over armature.
5. Position harness retainer hole over tab in end cap.
6. Secure frame assembly to end cap with 2 screws.

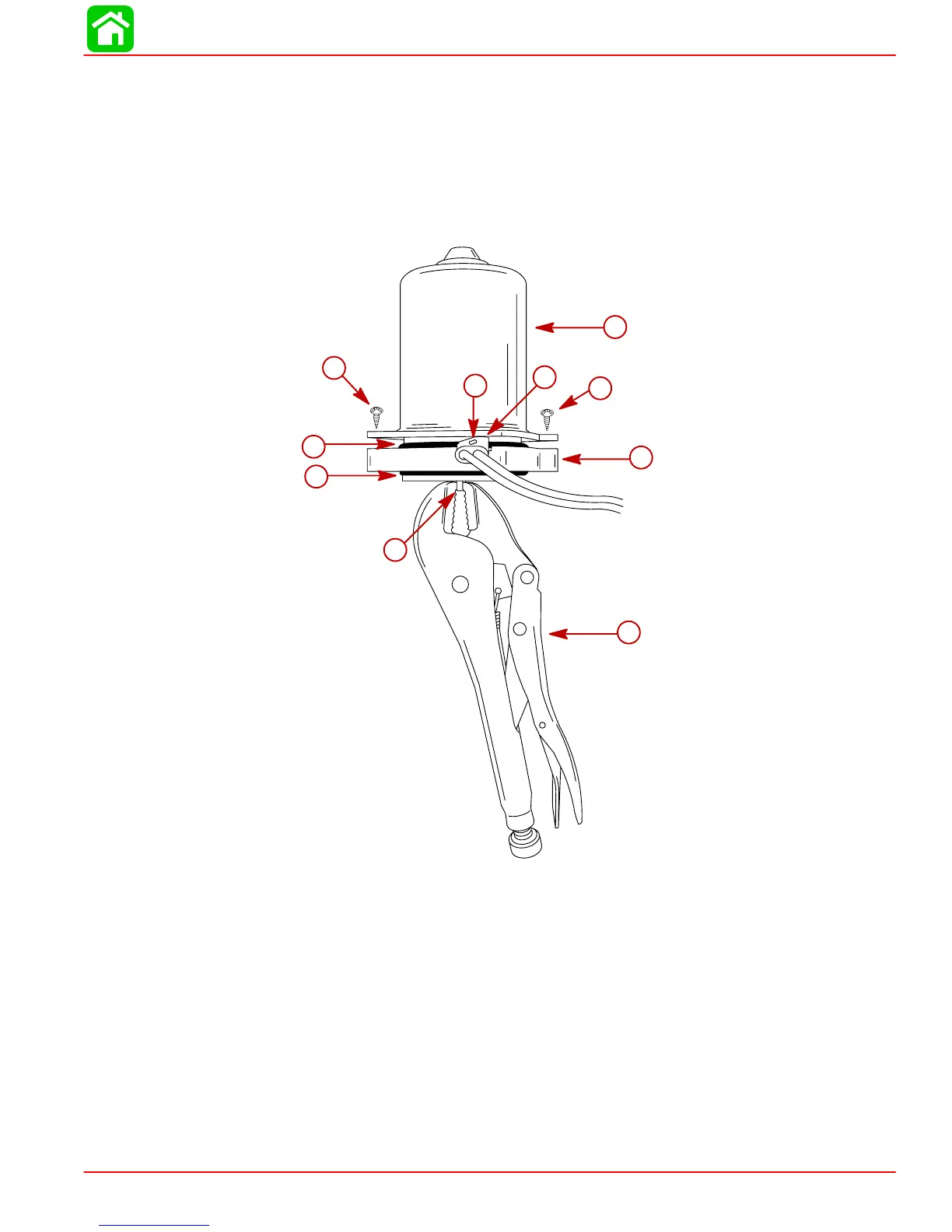

53776
a
b
c
d
e
g
h
i
i
f
a-Vise Grip Pliers
b-Armature Shaft
c-O-ring
d-End Cap
e-Harness Retainer
f-Retainer Hole
g-O-ring
h-Frame Assembly
i-Screws
