LEFT HAND NON-RATCHETING
Page 6B-26 90-855347R1 JANUARY 1999
Pinion Gear and Driveshaft
REMOVAL

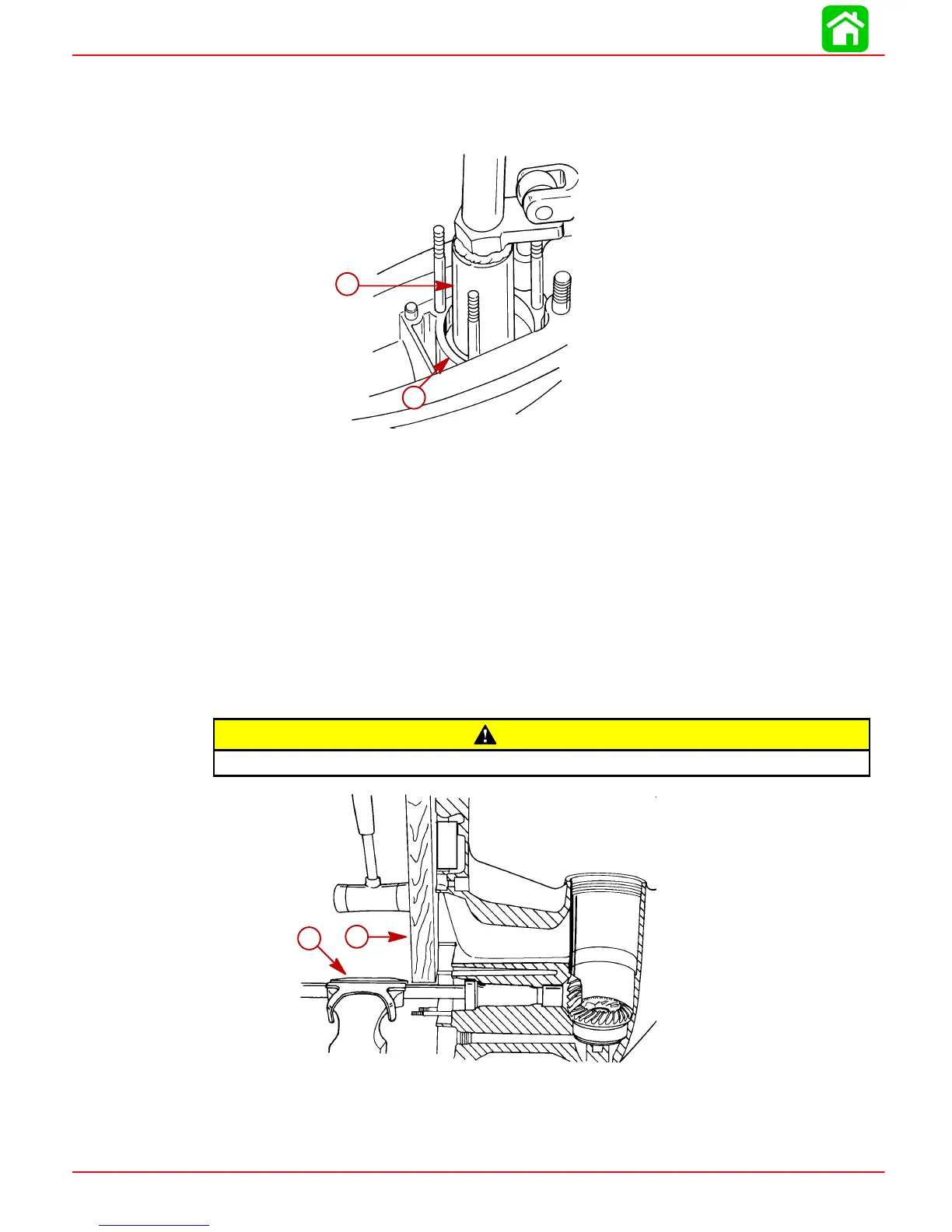

1. Remove bearing retainer using Bearing Retainer Tool (91-43506).
51865
a
b
a-Bearing Retainer
b-Bearing Retainer Tool (91-43506)
2. Place Driveshaft Holding Tool (91-34377A1) over driveshaft splines.
3. Use a socket and flex handle to hold pinion nut. (Pad area of gear housing, where flex
handle will make contact, to prevent damage to gear housing.)
4. Use a socket and flex handle on Driveshaft Holding Tool to loosen pinion nut. Remove
pinion nut and Driveshaft Holding Tool.
5. Remove gear housing from vise and reposition it as shown. Be sure to use soft jaw
vise covers and clamp as close as possible to water pump studs.
6. Place a block of wood on gear housing mating surface. Use a mallet and carefully tap
gear housing away from driveshaft.
CAUTION
DO NOT strike gear housing hard with the mallet or allow gear housing to fall.
51878
a
b
a-Wooden Block
b-Soft Jaw Vise Covers
7. Reach into gear housing and remove pinion gear.
To Next Page
