Horizontal aim adjustment
1. Park the vehicle on a
level surface.
2. With the hood open,
locate the horizontal
indicator and the
adjusting screw.
Remove the protective
cap to access the 7 mm
adjusting screw head.

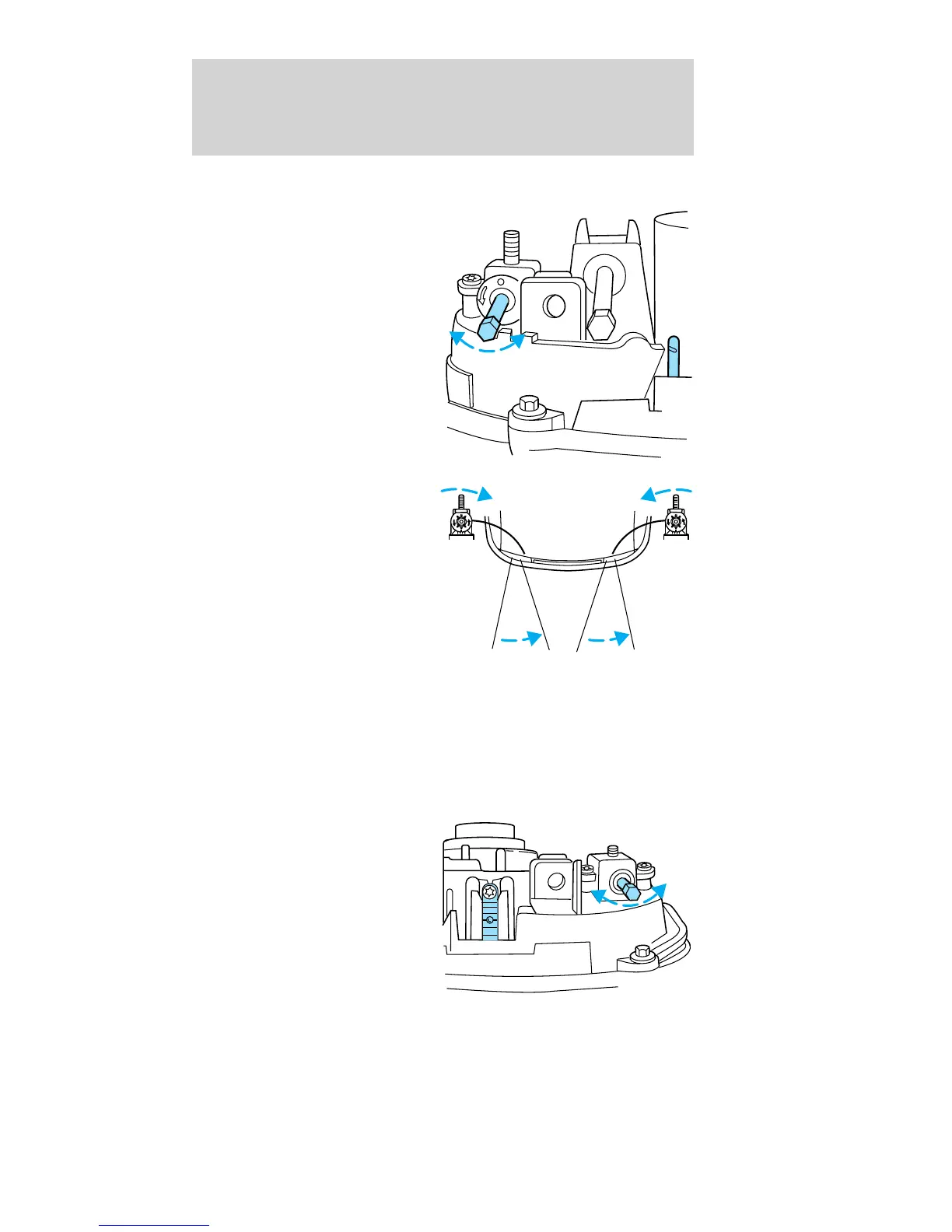

3. Turn the horizontal
adjusting screw in the
direction of the arrow
to change the
horizontal aim as
shown.
4.Usea7mmwrench
or socket to turn the
horizontal adjusting screw until the “0” reference
mark on the view dial is aligned with the rearward
facing tab (as shown) on the plastic housing.
Vertical aim adjustment
1. Park the vehicle on a level surface.
2. With the hood open,
locate the bubble level
the vertical aim
indicator. It is visible
when viewed from
above center rear of
the headlamp. Locate
the vertical adjusting
screw, located on the
outboard side of the headlamp adjacent to the
headlamp upper outboard attachment.
