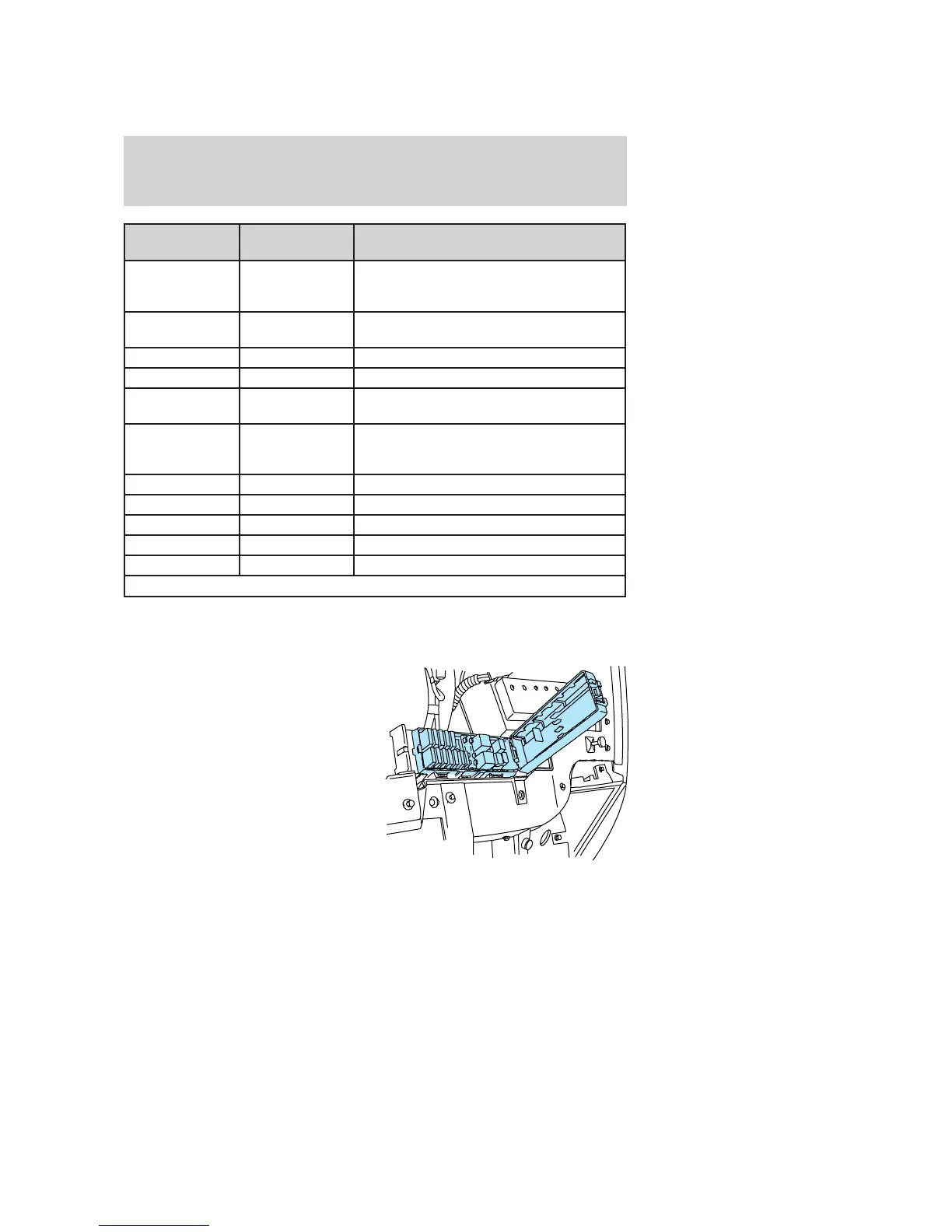

Fuse/relay
location
Fuse amp
rating
Passenger compartment fuse
panel description
32 10A Cluster, Flex fuel module, ICP logic,
Passive anti-theft module (GEM
power)
33 15A Hazard flasher, Cluster power, ICP
power, EATC
34 5A GEM logic
35 10A Backlighting
36 2A Powertrain Control Module (PCM)
relay, Fuel pump relay, A/C clutch
37 25A Autolamp, Daytime Running Lamps
(DRL), Flash-to-pass, Headlamp
switch
38 15A Horn, Diagnostic connector (OBD II)
39 — Not used
40 — Not used
41 — Not used
42 — Not used
CB - Circuit Breaker
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
