Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the chapter.

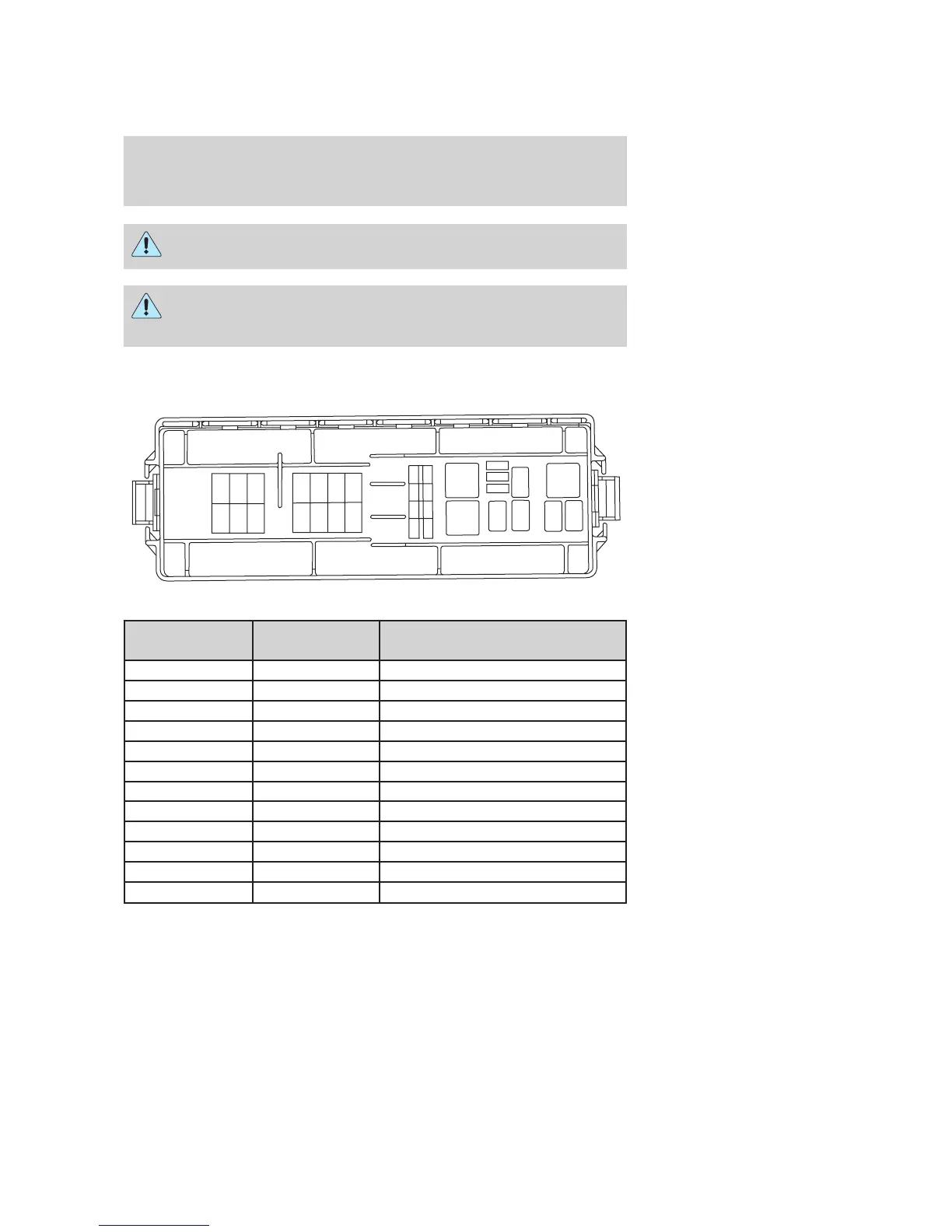

The high-current fuses are coded as follows.
Fuse/relay
location
Fuse amp
rating
Power distribution box
description
1 60A** Fuse junction panel
2 30A** Powertrain Control Module (PCM)
3 60A** Fuse junction panel
4 10A CB Low speed cooling fan
5 40A** Cooling fan
6 — Not used
7 40A** Starter relay, Ignition switch
8 — Not used
9 20A** Cooling fan (passenger side)
10 20A** Cooling fan (driver side)
11 50A** Rear defrost (sedan only)
12 — Not used
1
2
3
4
56
7
8
910
11 12
13
14
15
16 17
18
19
20
21
22
23
24
25
29
30
26
27
28
31
32
33
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
155
