Mercury SCC-1 User Manual

NOTE:At the time of this publication, VesselView Link and SmartCraft CONNECT cannot be used together on the same
network.
SmartCraft CONNECT Module—Single through Quad‑Engine
NOTE:The SmartCraft CONNECT module does not provide power for any device on the NMEA 2000 network. The NMEA
2000 network will require its own power source. The NMEA 2000 network power input must have appropriate circuit
protection for the devices on the NMEA 2000 network.
NOTE:The termination band on the 10‑pin connector cable only applies to engine‑mounted modules.

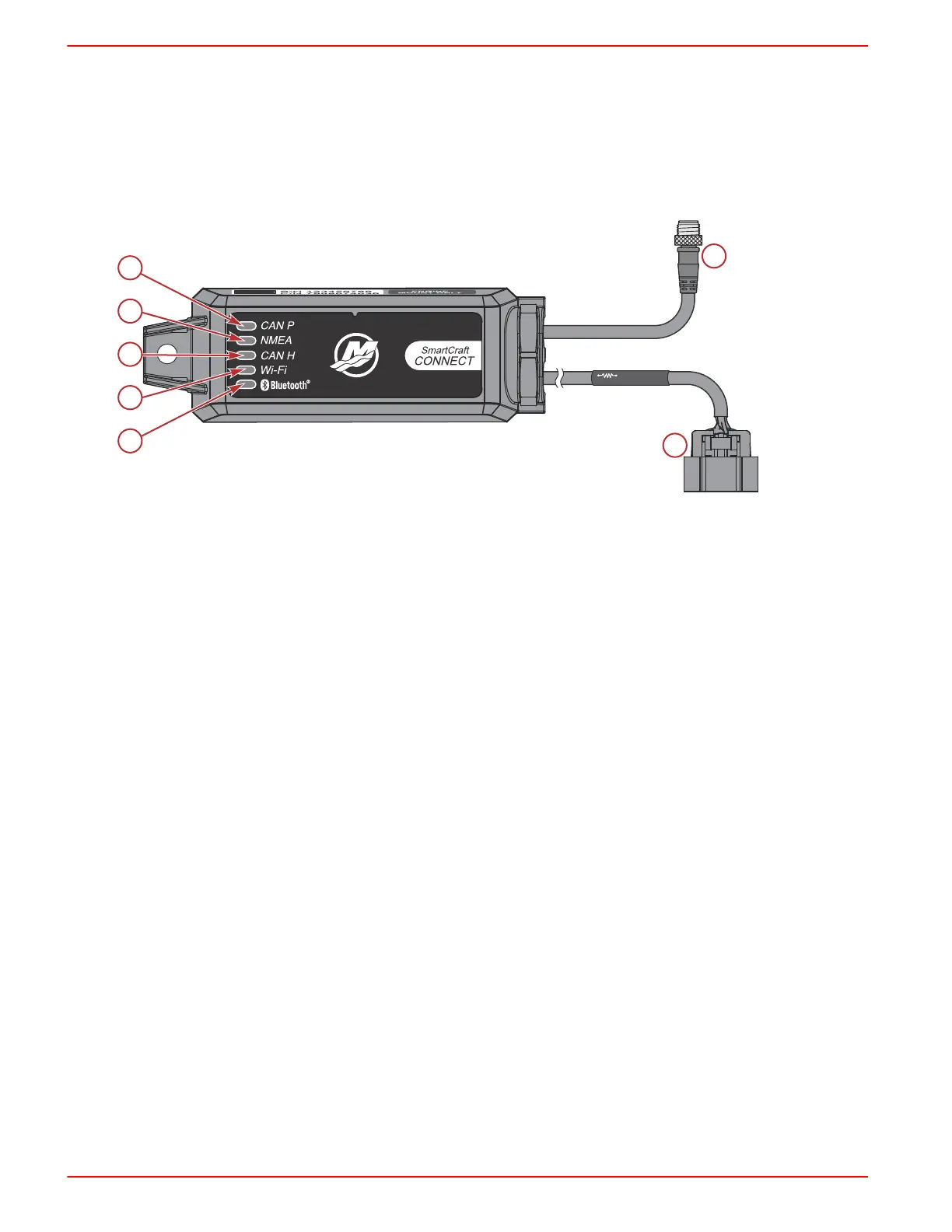

a - CAN P connection light
b - NMEA connection light
c - CAN H connection light
d - Wi‑Fi connection light
e - Bluetooth® connection light
f - NMEA 2000® connector
g - 10‑pin connector
Module Harness Connections
1. Connect the SmartCraft CONNECT module in one of the two following ways:
a. Connect the CAN 10‑pin harness connector to the SmartCraft junction box. Refer to the following diagram.
b. Connect the CAN 10‑pin harness connector to the helm harness SmartCraft 10‑pin connection using a male‑male
adapter harness.
TERMINA
TED
ENGINE MOUNT ONL
Y
a
b
d
e
c
f
g
71912
SCC-1 SMARTCRAFT CONNECT GATEWAY INSTALLATION MANUAL
Page2 / 23 © 2023 Mercury Marine 90-8M0219240 eng MAY2023
