CAL 1 CALIBRATION

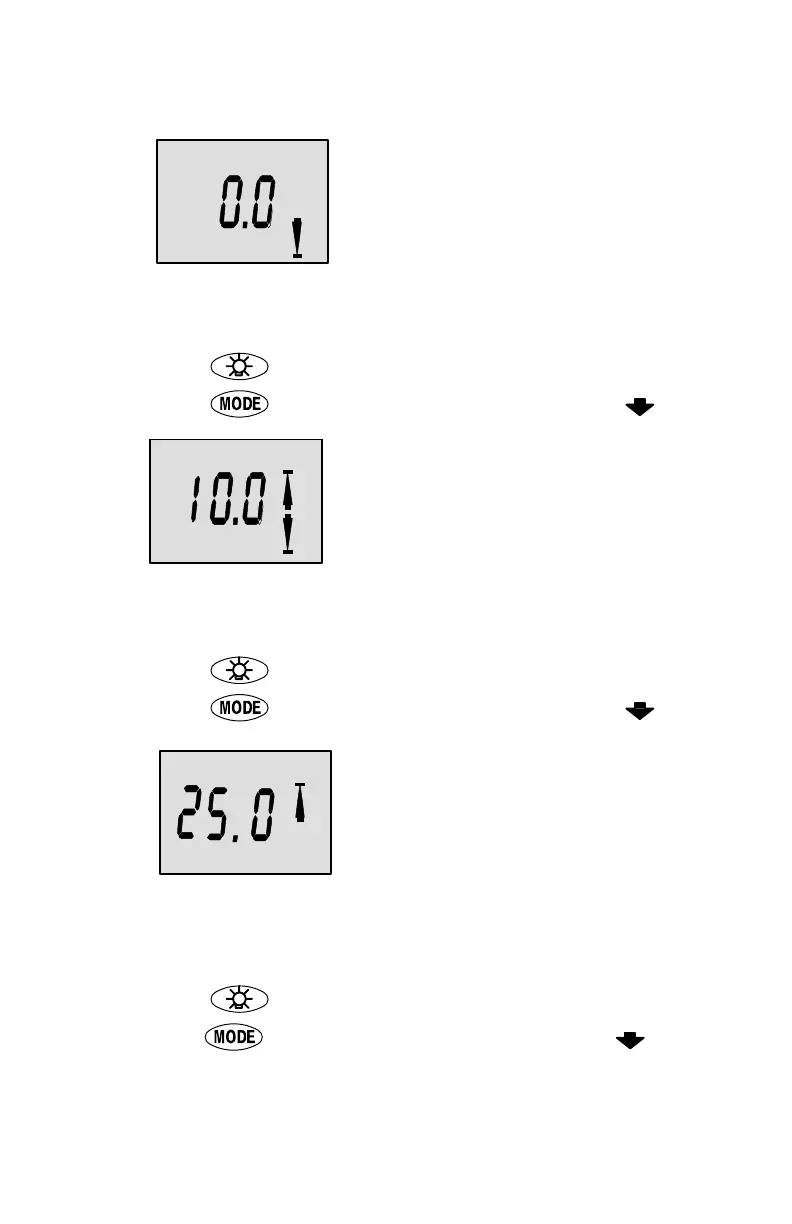

Trim
Trim Sensor
0.0 Setting
(Full Trim in Position)
1. The word “Trim” and down arrow should be blinking.
2. Trim unit to the full Down/In position.
3. Press the
button to save.
4. Press the
button to advance to 10.0 setting.
Trim Trim Sensor
10.0 Setting
(Full Trim Out Position)
5. The word “Trim” and down and up arrows should be blinking.
6. Trim unit out to the maximum trim (not trailer) position.
7. Press the
button to save.
8. Press the
button to advance to 25.0 setting.
Trim
Trim Sensor
25.0 Setting
(Full Trailer Out Position)
9. The word “Trim” and up arrow should be blinking.
10. Use the trim switch and trim unit out to the maximum trailer posi-
tion.
11. Press the
button to save.
12. Press the
button to move to the next function.
