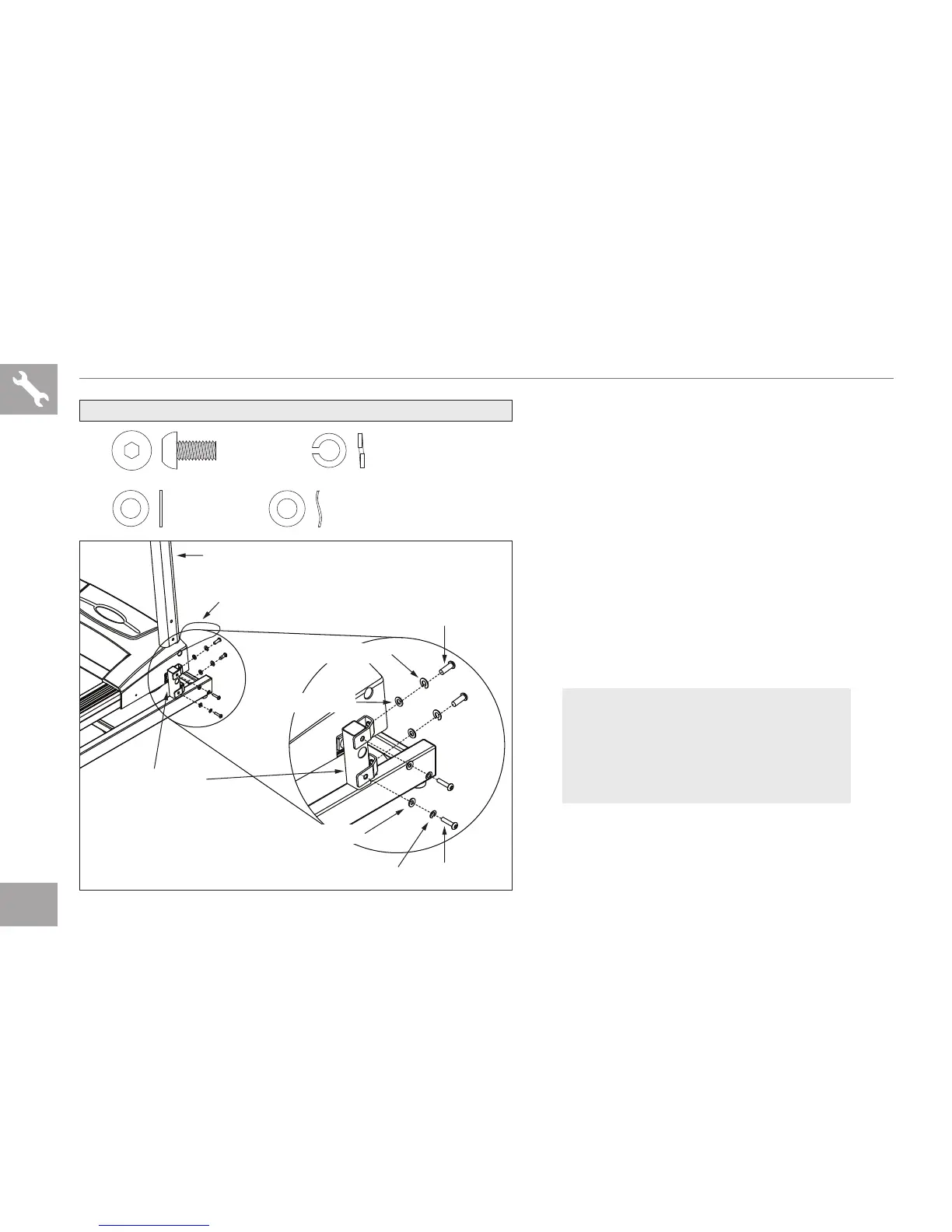

ASSEMBLY STEP 1
A Open HARDWARE BAG 1.
B Slide the right CONSOLE MAST down on to
the CONSOLE MAST SUPPORT TUBE. On
the front of the CONSOLE MAST, bolt in place
using 2 BOLTS (A), 2 SPRING WASHERS
(B), and 2 ARC WASHERS (D). On the side
of the CONSOLE MAST, bolt in place using 2
BOLTS (A), 2 SPRING WASHERS (B), and 2
FLAT WASHERS (C).
C Repeat on other side.
D On right side thread CONSOLE MAST WIRE
through CONSOLE MAST.
WASHER (C)
15.5 mm
Qty: 4
ARC WASHER (D)
17 mm
Qty: 4
SPRING WASHER (B)
15.4 mm
Qty: 8
BOLT (A)
15 mm
Qty: 8
HARDWARE BAG 1 CONTENTS :
BOLT (A)
SPRING WASHER (B)
CONSOLE MAST
CONSOLE MAST
SUPPORT TUBE
BOLT (A)
CONSOLE WIRE
SPRING WASHER (B)
ARC WASHER (D)
FLAT WASHER (C)
NOTE: While assembling the masts, do
not completely tighten any bolts until
the end of ASSEMBLY STEP 2. Ensure
that ALL bolts are in place and partially
threaded in before completely tightening
any ONE bolt.
To Next Page
