Merit 715T - Assembly Step 2: Console Attachment

7

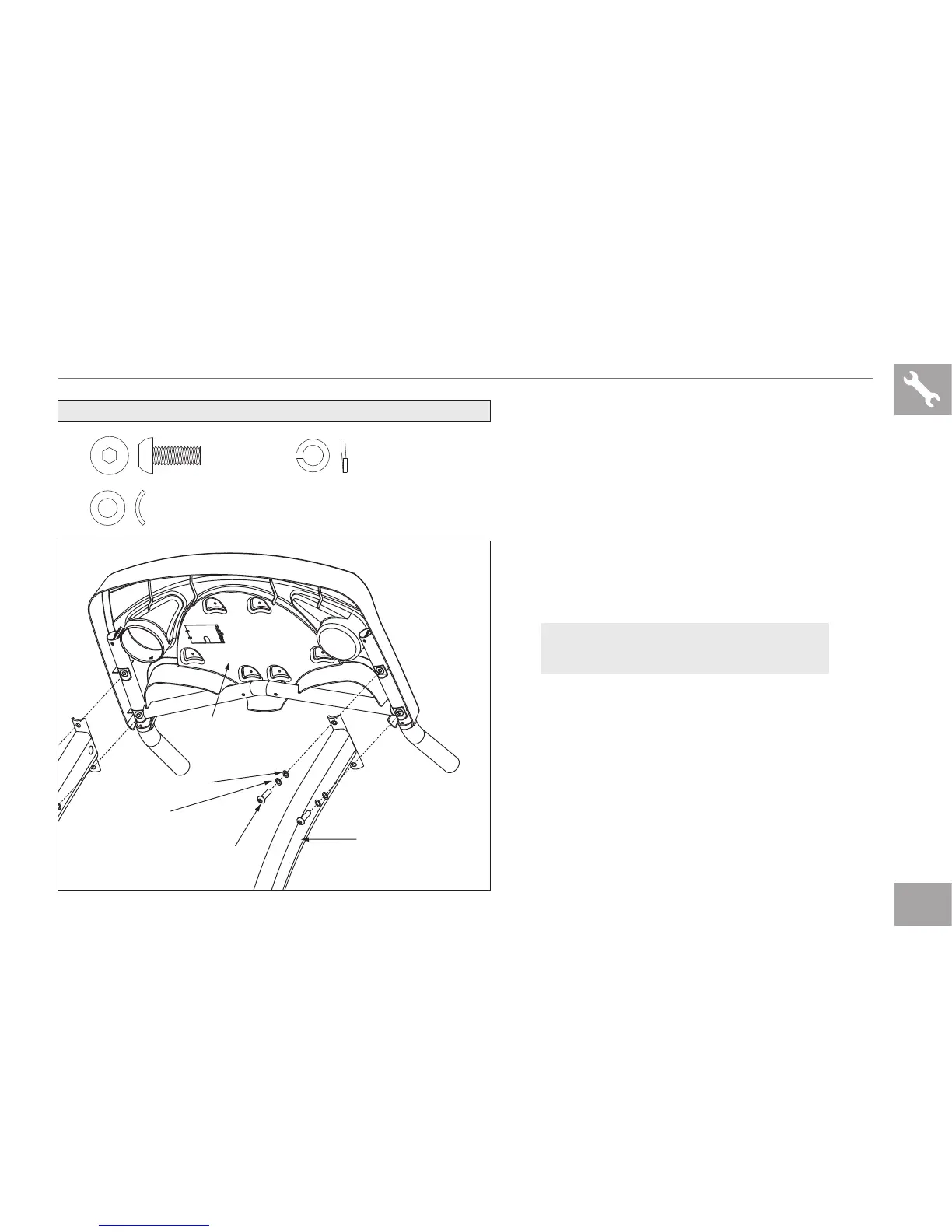

ASSEMBLY STEP 2
A Open HARDWARE BAG 2.
B Attach the CONSOLE to the CONSOLE
MAST using 2 BOLTS (E), 2 SPRING
WASHERS (B), and 2 ARC WASHERS (D).
C Repeat on other side.
D After all bolts are inserted for assembly step
1 and assembly step 2, all bolts can be
completely tightened.
ARC WASHER (D)
17 mm
Qty: 4
SPRING WASHER (B)
15.4 mm
Qty: 4
BOLT (E)
25 mm
Qty: 4
HARDWARE BAG 2 CONTENTS :
BOLT (E)
SPRING WASHER (B)
ARC WASHER (D)
CONSOLE
CONSOLE MAST
NOTE: Be careful not to pinch any wires
while assembling the masts.
