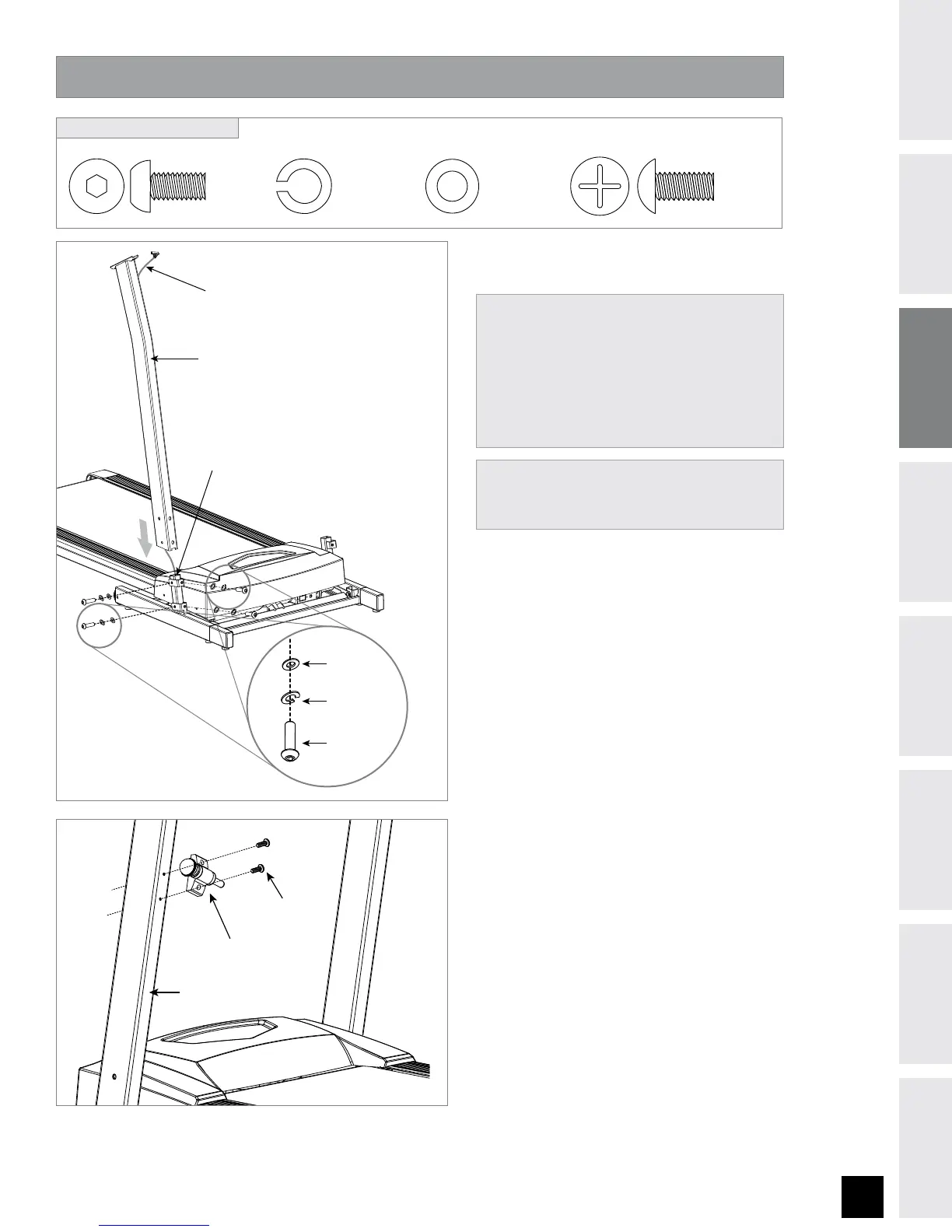

ASSEMBLY STEP 2
Open HARDWARE BAG 2.
Slide the RIGHT CONSOLE MAST
down onto the CONSOLE MAST
SUPPORT TUBE. Bolt in place
using 2 BOLTS (F), 2 LOCK
WASHERS (B), and 2 WASHERS
(C) on the side. Then, bolt in
place using 2 BOLTS (F), 2 LOCK
WASHERS (B), and 2 WASHERS (C)
on the front.
NOTE: Carefully lift RIGHT
CONSOLE MAST to avoid
disconnecting CONSOLE CABLE
from the motor control board.
The CONSOLE CABLE must be
threaded through the mast.
Repeat on the other side.
Attach DECK LOCK LATCH to
LEFT CONSOLE MAST using
2 BOLTS (D).
A
B
C
D
BOLT (F)
15 mm
Qty: 8
LOCK
WASHER (B)
Qty: 8
BOLT (D)
20 mm
Qty: 2
FLAT
WASHER (C)
Qty: 8
HARDWARE BAG 2 CONTENTS :
* NOTE: Be careful not to pinch any wires
while assembling the masts.
BOLTS (D)
DECK LOCK LATCH
LEFT CONSOLE MAST
RIGHT CONSOLE MAST
CONSOLE MAST
SUPPORT TUBE
CONSOLE CABLE
(THREAD THROUGH INSIDE HOLE IN MAST)
LOCK
WASHER (B)
FLAT
WASHER (C)
BOLT (F)
* NOTE: While assembling the masts,
do not completely tighten any bolts
until the end of ASSEMBLY STEP 3.
Ensure that ALL bolts are in place and
partially threaded in before completely
tightening any ONE bolt.
