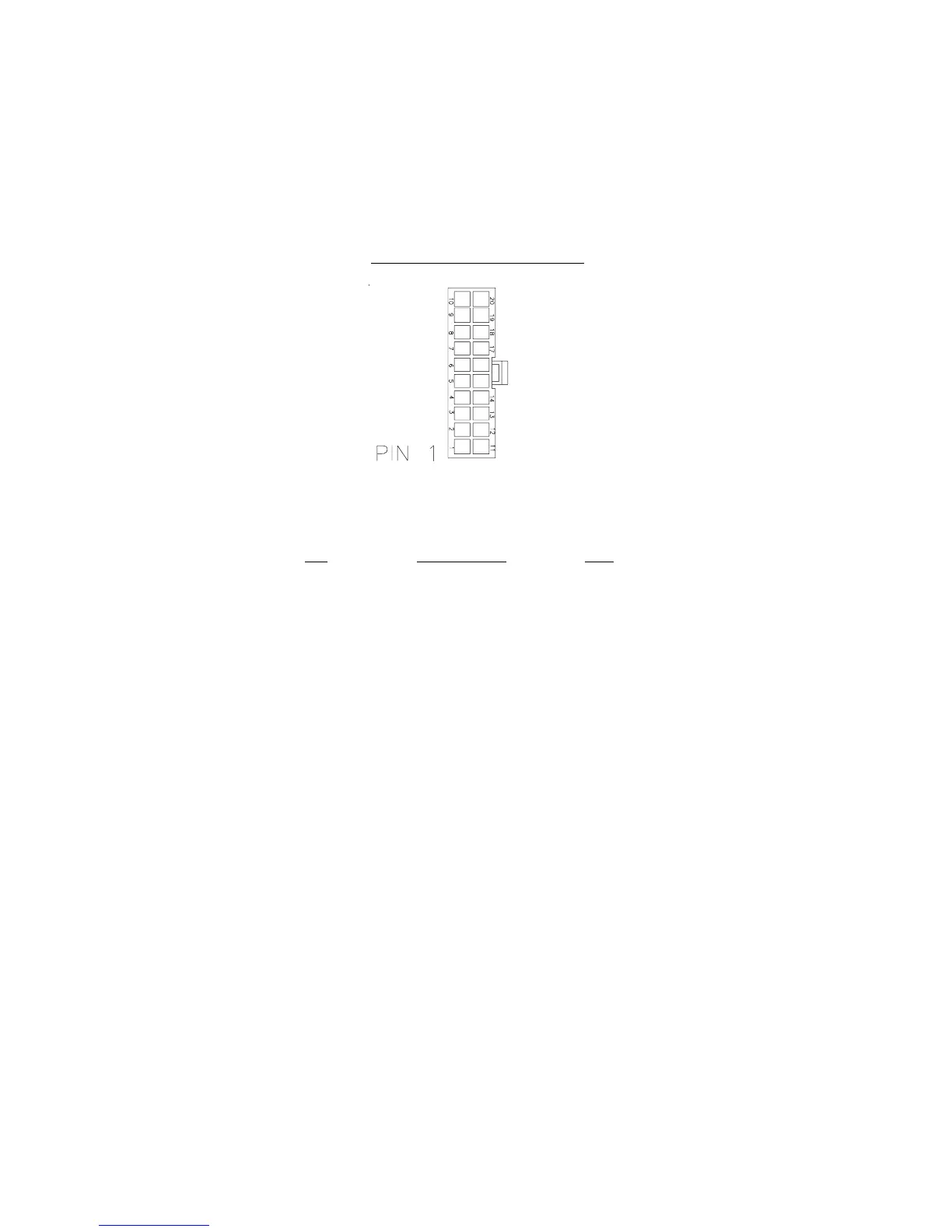

FIGURE 32 - REAR VIEW OF CABLE CONNECTOR
Motherboard - Power Connector
Connection Diagrams
PIN WIRE COLOR USE
1 ORANGE +3.3 VDC
2 ORANGE +3.3 VDC
3 BLACK GND
4 RED +5 VDC
5 BLACK GND
6 RED +5 VDC
7 BLACK GND
8 GRAY PWR GOOD
9 VIOLET +5V VSB
10 YELLOW +12 VDC
11 ORANGE +3.3 VDC
12 BLUE -12 VDC
13 BLACK GND
14 GREEN PWR ON
15 BLACK GND
16 BLACK GND
17 BLACK GND
18 ----- -----
19 RED +5 VDC
20 RED +5 VDC
