Merit Ion eVo - Connection Diagrams

COPYRIGHT © 2008 MERIT ENTERTAINMENT

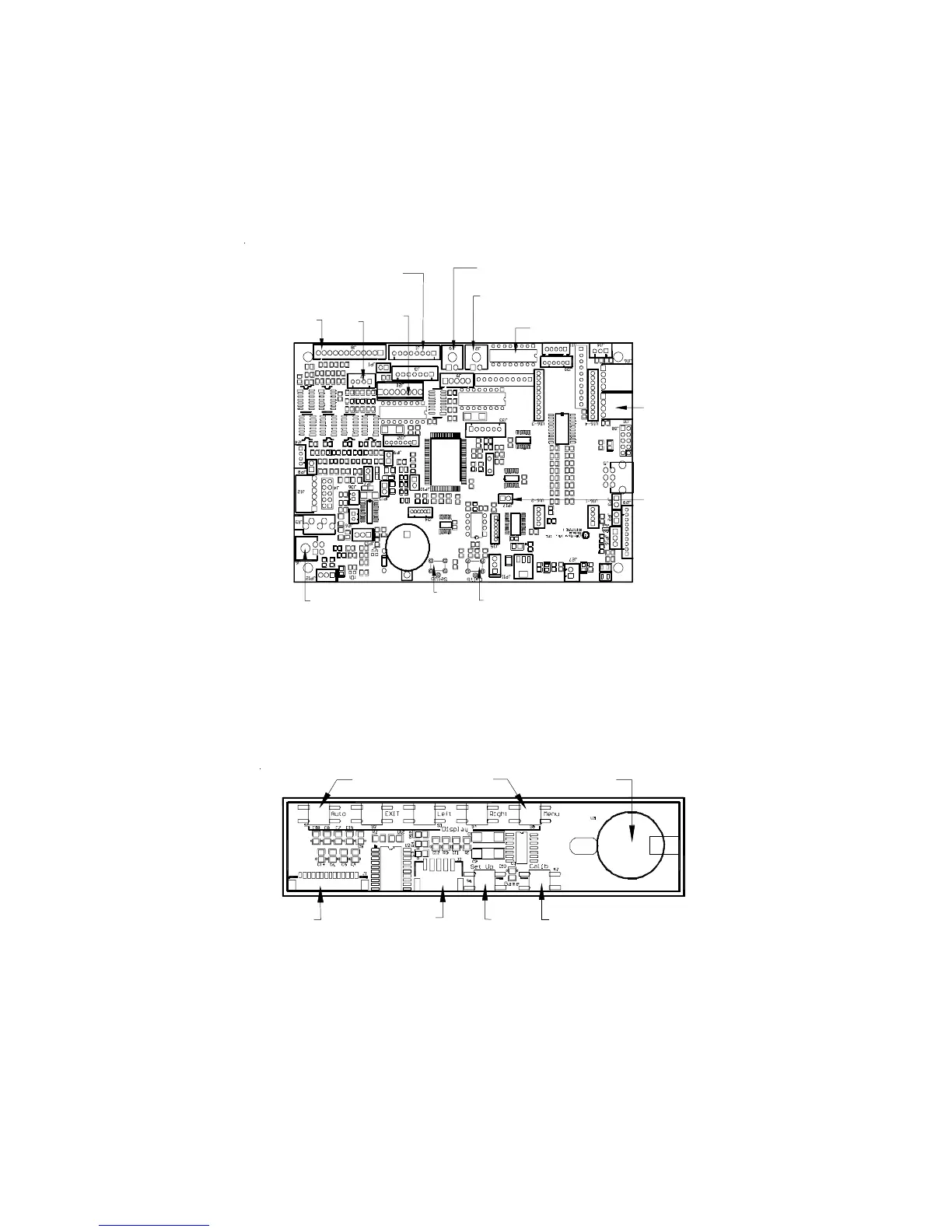

FIGURE 34 - ON-SCREEN DISPLAY BOARD DRAWING
Connection Diagrams
FIGURE 33 - I/O BOARD DRAWING
J8
BILL / COIN
J6
POWER
CONNECTOR
J31
PLAYER
KEY SOCKET
JUMPER AT JP17
FOR JOYSTICK
FUNCTION
DIP SWITCH BANK
J7
BILL
SETUP
CALIBRATE
J20
COIN
MECH
J1
COIN MECH
J2
METER 1
J19
METER 2
REMOTE SETUP/
CALIBRATE/KEY
LCD
SETUP CALIBRATE
MONITOR CONTROLS SECURITY KEY
PM0426-25 MEGATOUCH ION EVO OWNER’S MANUAL 40
