5
6
21.
7
8
22.
8A
8B
4mm
A01S0102
Hex Key is
needed

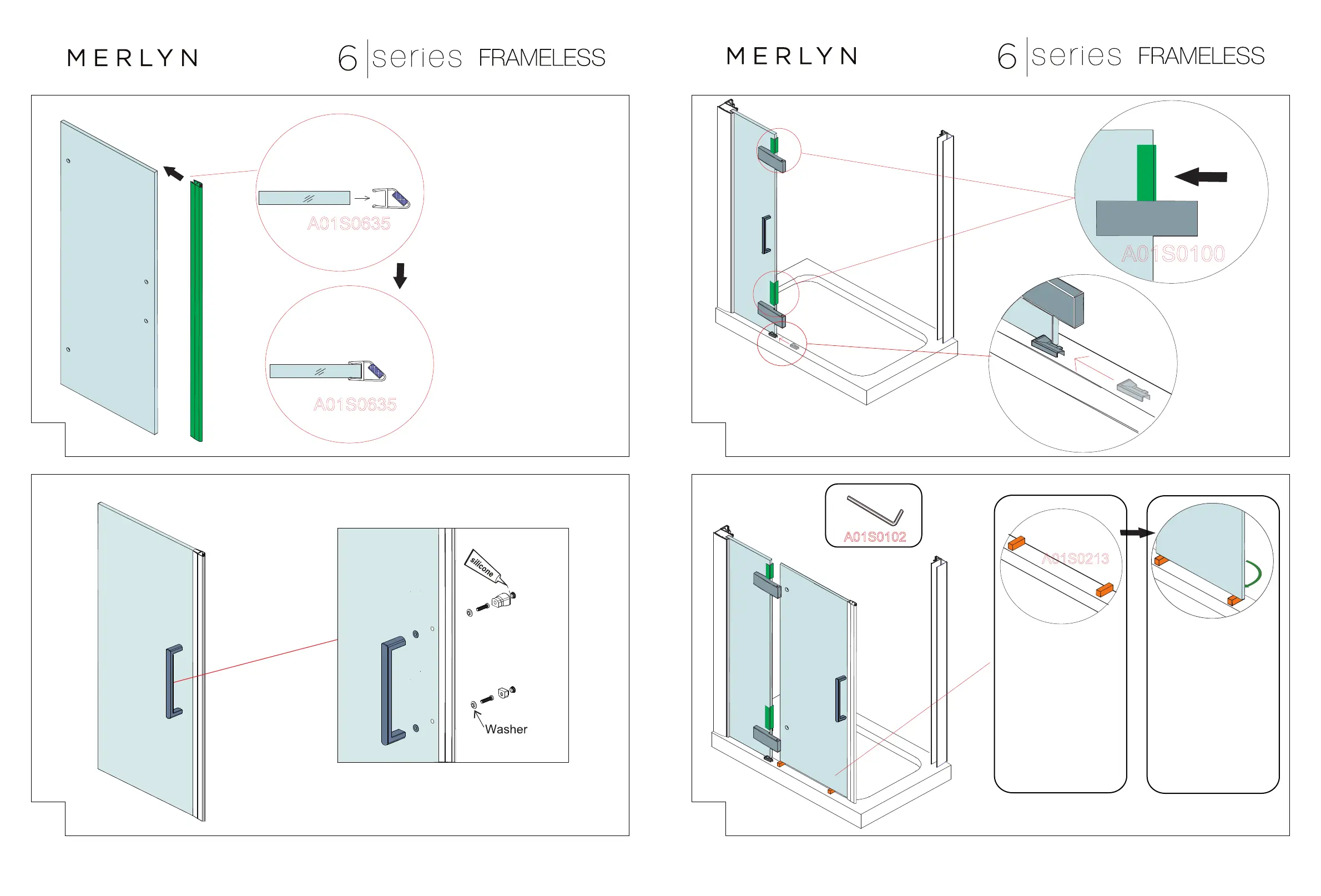

8A: Use the 20mm
spacers A01S0213
to set the height of
the moving panel.
Extra 2mm spacers
are provided to
adjust the height
if required.
8B: From inside the
enclosure place the
moving panel on the
spacers. You will
need the 4mm hex
key, holding seal
A01S0100 and
remaining hinge
parts.
7A
7B
5A
5B
NOTE：when fitting the
moving panel magnet
seal ensure the bottom
is flush with the bottom
of the glass.
A01S0635
A01S0635
A01S0100
A01S0213
