Merrytek MC054V-RC-2A - Function Diagram; Radiation Pattern; Ceiling Mounted Radiation Patterns

Lighting Control Switch Version: A0
Page 7 of 11

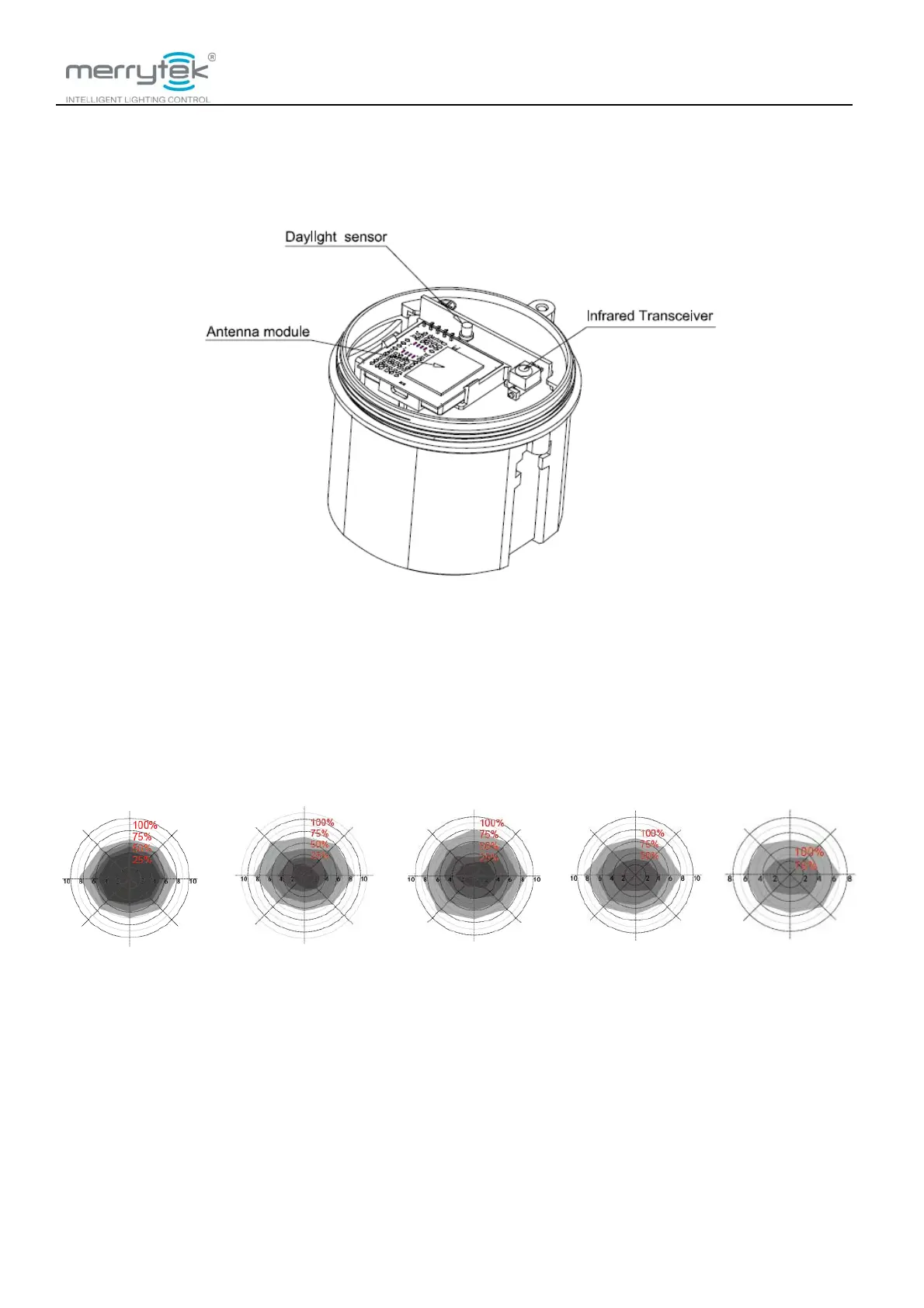

6.Function Diagram
7.Radiation Pattern
Ceiling mounting
Ceiling mounted
height: 3m
Sensitivity:
100%/75%/50%/25%
Ceiling mounted
height: 6m
Sensitivity:
100%/75%/50%/25%
Ceiling mounted
height: 9m
Sensitivity:
100%/75%/50%/25%
Ceiling mounted
height: 12m
Sensitivity:
100%/75%/50%
Ceiling mounted
height: 15m
Sensitivity:
100%/75%
Normal moving
(Speed:1m/s)
Normal moving
(Speed:1m/s)
Normal moving
(Speed:1m/s)
Normal moving
(Speed:1m/s)
Normal moving
(Speed:1m/s)
