62 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Installing AP1000
AP1000 Beta Test
Mount AP1000 on a Wall
The AP1000 attaches directly to the wall. To mount an AP1000 on sheetrock or wall studs, follow these
steps:
1. Attach two appropriate screws (see Additional Equipment for screw information) to the wall 3
inches apart (76mm) as shown below (Figure 35).

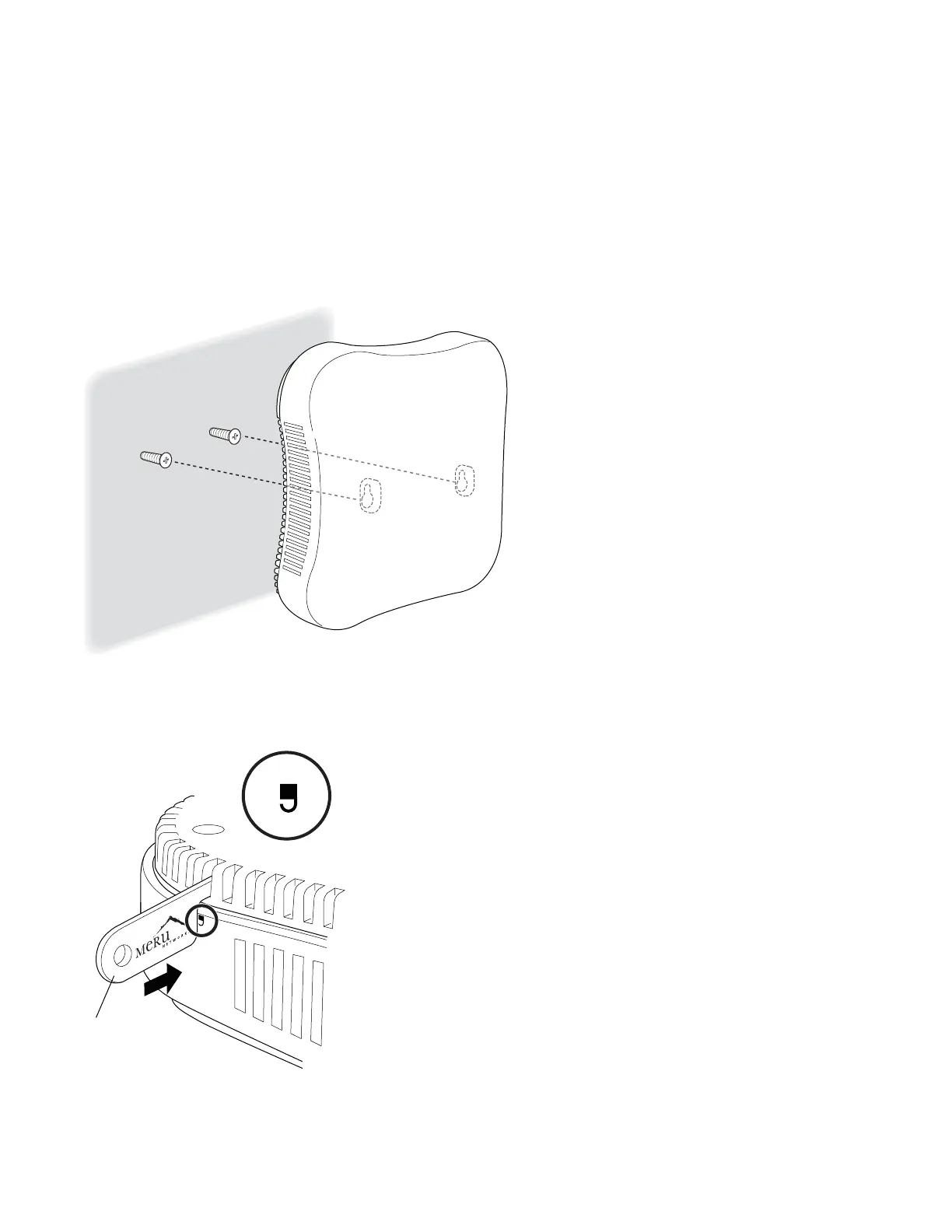

Figure 35: AP1000 Wall Bracket
2. Check to be sure that AP1000 is not locked by inserting the locking key into the Unlock mechanism
as shown below.
Figure 36: Unlock AP1000
00250
Wall mount with screws.
00253
Key
UNLOCK
9
