PAGE 20
LONE STAR SPECIAL
EL-84
EL-84

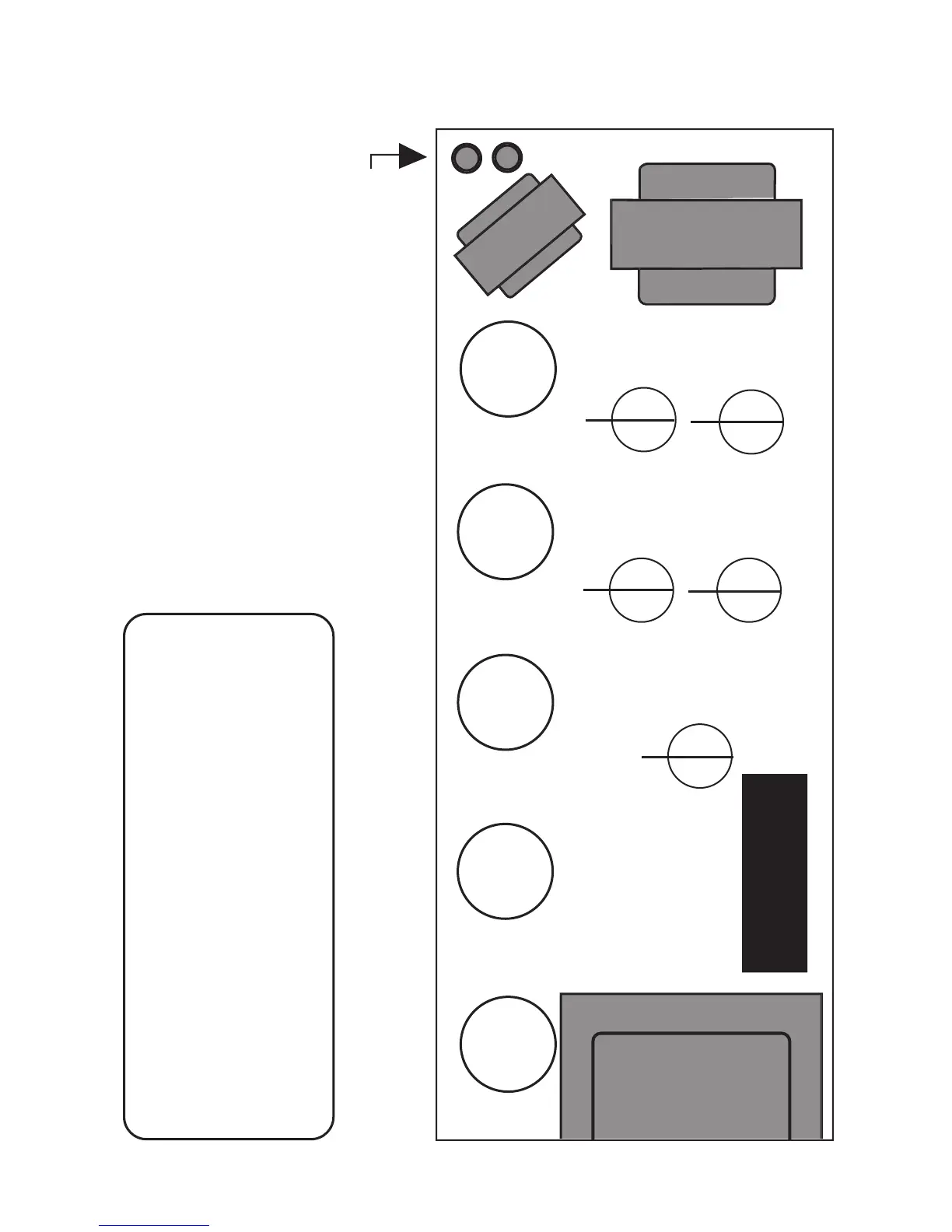

REAR OF CHASSIS - viewing chassis from its bottom side
NOTE: POWER TUBES ARE HOT ! BEFORE CHANGING TUBES TURN POWER
SWITCH TO OFF AND LET COOL OR USE A RAG FOR PROTECTION.
TUBE TASK CHART
A B
A B
A B
A B
A B
RCA Jacks for Reverb
EL-84
EL-84
5Y3
COOLING FAN
Description of Tube Functions
V3 B = FX Loop Return
V4 A = Reverb Return
V4 B = Reverb Drive
V5 A = Phase inv/driver
V5 B = Phase inv/driver
V1 A = CH2 Drive Stage
V1 B = Input Gain Stage
V2 A = 3rd Gain Stage
V2 B = 2nd Gain Stage
V3 A = FX Loop Send
V 1
V 2
V 3
V 4
V 5
