GENERAL SPECIFICATIONS
Power supply: 12Vdc (10V-15V)
Alarm control unit consumption: Deactivated < 1,5mA - Activated < 5mA
Working temperature: -40°C +85°C
Immunity time: 25 seconds
Alarm arrows blinking: 0.4 sec. ON; 0.4 sec. OFF
Alarm cycle duration: 25 sec.
Alarm cycles for the different stimulations: 95/56/EC (European standards)
PROTECTIONS
Volumetric Protection: Eco/Doppler ultrasound system with 2 levels of sensitivity, can be disabled.
Alarm input from auxiliary modules: Positive input, can be disabled
Absorption sensor: Protection that can be activated
Perimeter Protections: 3 separate inputs to protect doors, boot and bonnet
Ignition Lock Relay: 10A internal relay with 2 contacts available (C-NC)
Protection against ignition attempt: It disables ignition with alarm activated and triggers a siren alarm
Anti-Carjack: Protection that can be activated
Automatic activation of the alarm: 2 selectable modes (activating just the ignition lock or all)
SERVICES AND COMMANDS CAPACITY
Horn/Pager relay alarm output Electronic negative command Max 1A
Blinker output command Electronic positive command Max 5A+5A
Blinker push button control output Electronic command with negative polarity Max 1A
Power window module output command Timed electronic command with selectable polarity
Emergency deactivation Push button/LED or Electronic keys (Max 4)
Flashing LED It indicates that it displays the alarm status and alarm memories
Doors open when activated warning: It indicates if a door, the boot or bonnet is open when the alarm is activated.
Line for the hybrid module M327: Bus line preset for using the centralised locking control module M327
US inhibition protection for heater: It automatically disables the US protection when the heater is switched on
Garage function: It disables self-activation, making car maintenance easier
Car-Finder function: Selectable using OPT M327
COMBINABLE SIRENS
Piezoelectric siren M03 Sound level 114 dB not self-powered
Self-powered code siren M05 Sound level 116 dB self-powered
Self-powered RADIO siren WFR Sound level 116 dB self-powered/Freq.869.85 Mhz

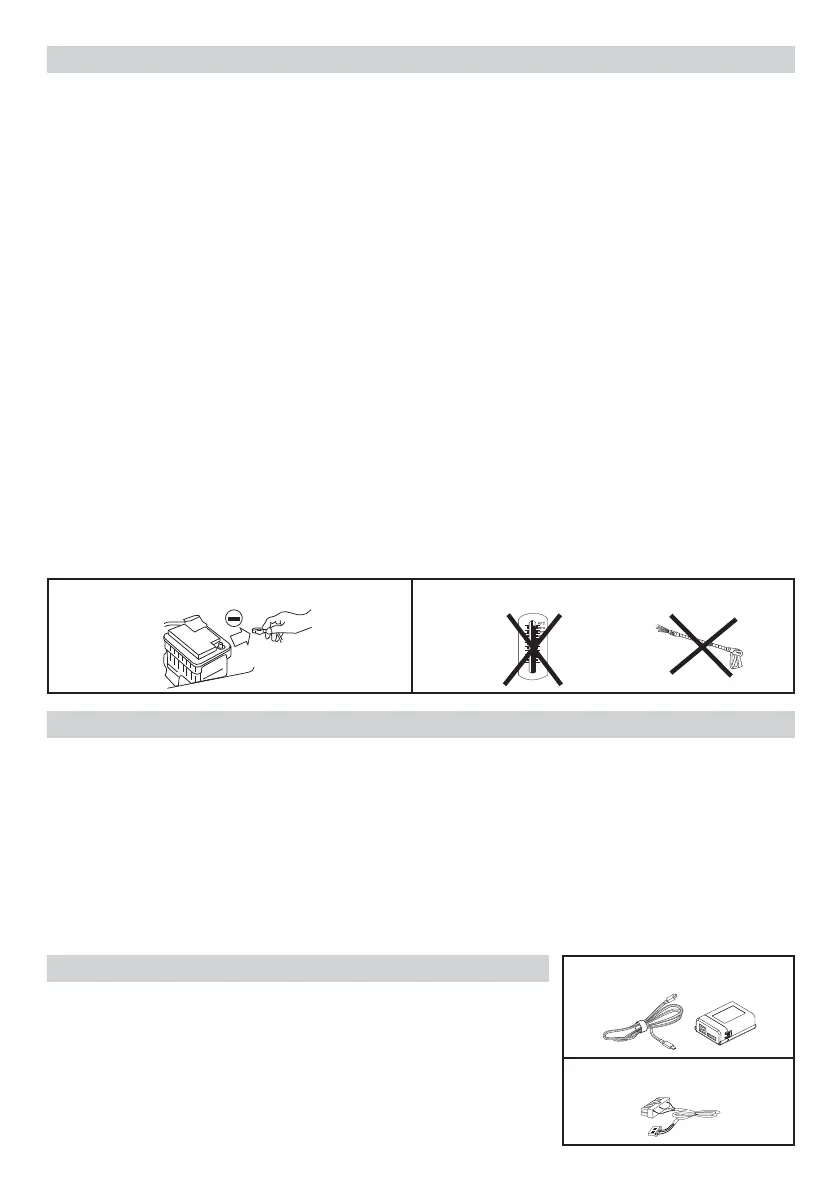

ASSEMBLE THE SIREN IN THE ENGINE COMPARTMENT
DISCONNECT THE CAR BATTERY
80°C
H
2
O
TECHNICAL SPECIFICATIONS
To identify the most suitable product for the speci c vehicle and have at disposal an updated list of the CAN-BUS
protocols available for the Meta EasyCan EVO Digital product, refer to the product/vehicle list in the technical area of
website www.metasystem.it. To enter the new CAN-BUS protocols needed for vehicle application, or existing CAN-BUS
protocol updates in the Meta EasyCan EVO Digital product the programmer PRG007 must be used and it’s user instruction
and software application to download on computer are availables in the technical area of website www.metasystem.it.
The protocols for updating the Meta EasyCan EVO Digital product are included in the PRG007 Programmer software
application and to obtain the new protocols must be download the new software version from the technical area of the
website www.metasystem.it. The Meta EasyCan EVO Digital product is supplied with a factory set-up which permits the
automatic recognition of all the CAN-BUS protocols of the Volkswagen Group (VW autosearch). The CAN BUS protocols
inside the Digital module can be selected by means of the programmer PRG007 using the Meta EasyCan dedicated wiring
(code: ABS13720) and following the indications available in the technical area of the website www.metasystem.it.
To select the right type of activation/deactivation commands for your car and
to quickly and e ectively customise the alarm control unit, we suggest reading
the car’s technical data sheets which you will  nd at www.metasystem.it and
then you will have all the instructions for installing quickly and correctly. To
customise the operating modes, use the PRG007 Programmer or the portable
PDC/CAR ALARM PROGRAMMER which will give you access to functions that
cannot be programmed manually. The update of the programmer’s software,
and infomation about programmable functions are available ONLINE on website
www.metasystem.it , into tech area “CAR-ALARM”.
PRG007 PROGRAMMER
MetaSystem code: ABS15090
Fig. 1
HARNESS FOR Meta EasyCan
MetaSystem code: ABS13720
CHOICE OF PRODUCT AND CAN-BUS PROTOCOL UPDATE
PRODUCT SET-UP
