Meta System EasyCan EVO Digital - Alarm Output for Horn;Pager Relay; Power Window Module and Window Up Inhibition; Auxiliary Protection Module; Auxiliary Protection Inhibition

17
Additional modules can be used/disabled temporarily with this alarm, as for the volumetric
protection; to this end, it provides a dedicated positive output for controlling the modules
(PINK wire) and an input for the alarm signal coming from them (YELLOW wire).
AUXILIARY PROTECTION INHIBITION
To disable the auxiliary modules, proceed as illustrated below; activate the +15 car panel 3 times and lock
the car with the original remote control within the next 20 seconds.
The LED  ashes very quickly during the immunity time to indicate that the alarm is activated with the
volumetric protection disabled.
ATTENTION! When you disable the modules the ultrasound volumetric protection is
disabled as well, temporarily.
ALARM
POSITIVE
ALARM
INPUT
AUXILIARY MODULES
POSITIVE COMMAND
YELLOW YELLOW
PINK PINK
SENS.
M14/2008
Connection example for
the auxiliary module
Shock Sensor M14/2008

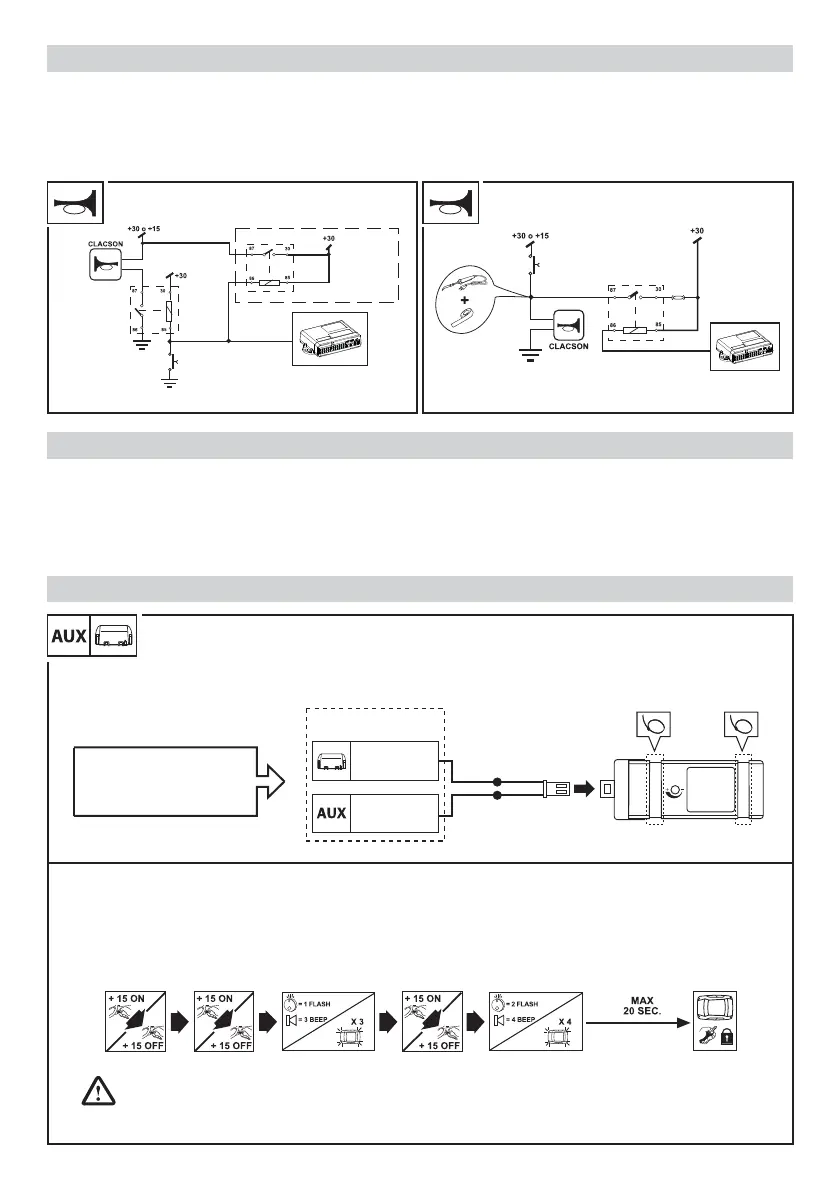

During an alarm cycle there is either a negative command for controlling the original relay on the BROWN wire
or a supplementary relay for the horn or a Pager. The negative command can be the continuous or alternating
type depending on what was selected in the accessory functions programming table. For the di erent types of
connection please comply with the indications given in Figures 18a/18b.
ALARM OUTPUT FOR HORN/PAGER RELAY
When the alarm is activated, a 12 second timed command is given to the PINK/BLACK wire with POSITIVE polarity
for controlling the power window accessory module M2008. If you wish to activate the alarm without the windows
closing, simply press the button on the LED just before activating the alarm, via the original remote control. The
polarity of the power window module signal can be changed with the programmer PRG007 and a signal can be
used with a NEGATIVE polarity which can control, for example, an original comfort feature.
POWER WINDOW MODULE AND WINDOW UP INHIBITION
AUXILIARY PROTECTION MODULE
Fig. 19
Fig. 18a
NEGATIVE COMMAND
Fig. 18b
POSITIVE COMMAND
PETROL PUMP
ELECTRONIC
INJECTION
MOUNT AN
ADDITIONAL
RELAY IF HORN
IS SUBKEY
ORIGINAL
HORN
CONTROL
BROWN
BROWN
ORIGINAL
HORN
CONTROL
MOUNT AN
ADDITIONAL
RELAY
